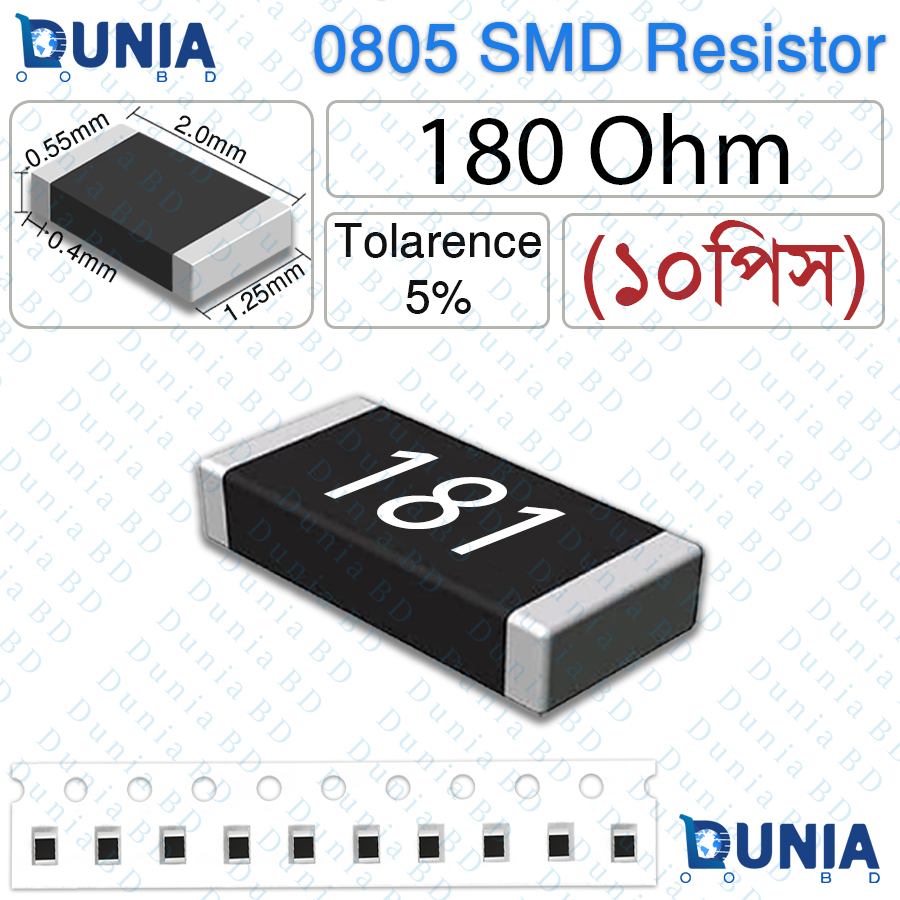

180 Ohm 181 0805 SMD Resistor 1/8W ±5% Tolerance High-Value Chip Resistor for Pull-Up and Voltage Division

Specifications

• 180 Ohm 181 0805 SMD Resistor 1/8W
• Resistance Value: 180 Ohm (181)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• 0805 package for reliable and compact mounting
• ±5% tolerance for accurate high-mid resistance
• 1/8W power for standard low-current applications
• Thick film for high stability and low drift
• Extended temperature tolerance for wide use
• RoHS compliant and lead-free
• Excellent assembly compatibility
• The 180 Ohm (181) 0805 SMD Resistor is a high-value component that excels in applications requiring reduced current flow and reference generation. Its ±5% tolerance and 1/8W rating make it ideal for pull-up resistors in digital communication buses (I2C, SMBus, etc.), voltage dividers for high-impedance sensors or references, current limiting in very low-power LEDs or indicators, biasing networks in low-current amplifiers, and general analog signal attenuation.
• Thick film technology offers low noise, stable resistance over time and temperature, and strong environmental resilience, ensuring dependable operation in communication modules, sensor interfaces, battery management systems, audio attenuators, and IoT devices. The 0805 size provides efficient thermal performance and soldering reliability, suitable for dense boards and manual work.
• RoHS compliant and manufactured to high standards, this resistor delivers precise, long-term performance at an economical price for a broad range of electronic designs

What is the price of 180 Ohm 181 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 180 Ohm 181 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 180 Ohm 181 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 180 Ohm 181 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Resistance value?
   180 Ohms (181 marking).
2. Package?
   0805 SMD (2012 Metric).
3. Power rating?
   1/8W (0.125W).
4. Tolerance?
   ±5%.
5. Max voltage?
   150V.
6. Temp range?
   -55°C to +155°C.
7. Soldering?
   Reflow/hand yes.
8. RoHS?
   Yes.
9. Marking?
   “181”.
10. Applications?
    Pull-up in buses, voltage dividers, low-current LED limiting, biasing, analog attenuation.
