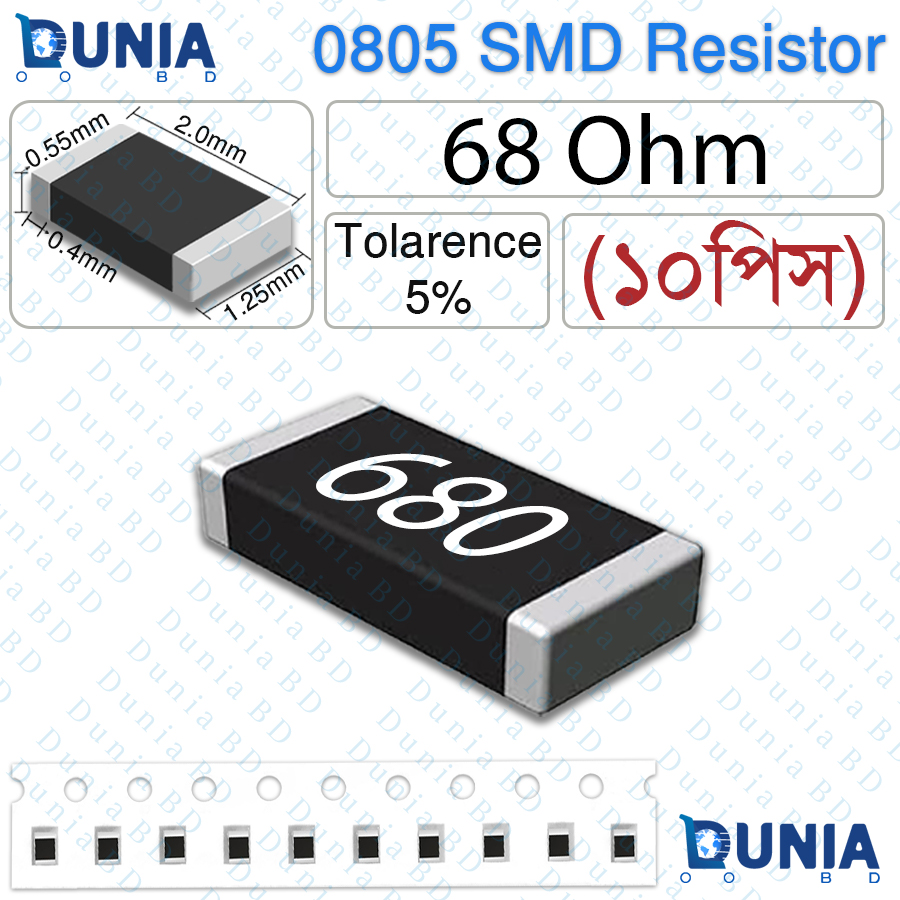

68 Ohm 680 0805 SMD Resistor 1/8W ±5% Tolerance High-Stability Chip Resistor for Current Limiting and Pull-Up

Specifications

• 68 Ohm 680 0805 SMD Resistor 1/8W
• Resistance Value: 68 Ohm (680)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• Compact 0805 for high-density layouts
• ±5% tolerance for consistent mid-high resistance
• 1/8W power for typical limiting applications
• Thick film for robust environmental performance
• Wide temp tolerance for versatile deployment
• RoHS compliant and lead-free
• Reliable solder joints in production
• The 68 Ohm (680) 0805 SMD Resistor is a dependable mid-high value that shines in applications demanding controlled current with good stability. Its ±5% tolerance and 1/8W rating make it perfect for current limiting in higher-voltage LEDs or transistor collectors, pull-up resistors in I2C, 1-Wire, or open-drain interfaces, voltage dividers for mid-range scaling, and general-purpose biasing in analog stages.
• Thick film technology provides low TCR, high surge tolerance, and resistance to moisture and thermal stress, ensuring reliable operation in communication devices, LED drivers, sensor interfaces, control panels, and embedded IoT projects.
• The 0805 size offers good thermal management and easy placement, ideal for both automated assembly and hand rework. RoHS compliant and produced to exacting standards, this resistor offers long-lasting, cost-effective performance for demanding electronic designs.

What is the price of 68 Ohm 680 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 68 Ohm 680 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 68 Ohm 680 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 68 Ohm 680 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Resistance?
   68 Ohms (680 marking).
2. Package?
   0805 SMD.
3. Power?
   1/8W.
4. Tolerance?
   ±5%.
5. Voltage?
   150V max.
6. Temperature?
   -55°C to +155°C.
7. Soldering?
   Yes, reflow/hand.
8. RoHS?
   Yes.
9. Marking?
   “680”.
10. Applications?
    LED/transistor limiting, pull-up in buses, dividers, analog biasing.
