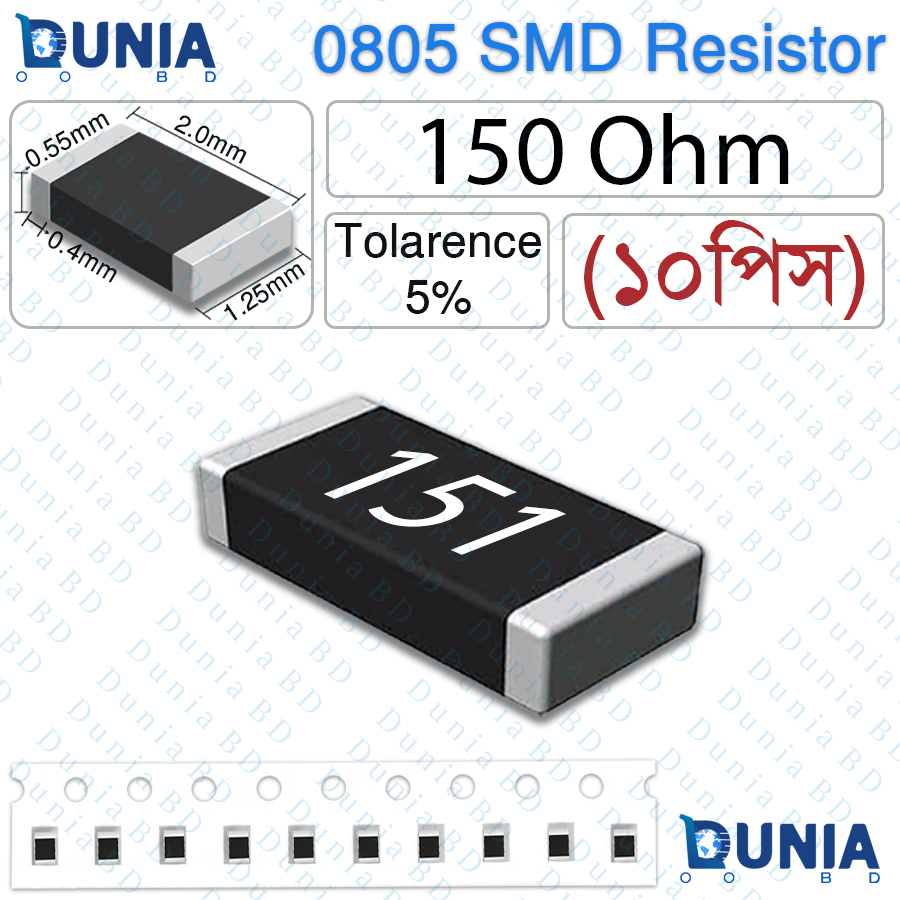

150 Ohm 151 0805 SMD Resistor 1/8W ±5% Tolerance Precision Mid-High Chip Resistor for Current Limiting and Biasing

Specifications

• 150 Ohm 151 0805 SMD Resistor 1/8W
• Resistance Value: 150 Ohm (151)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• 0805 size for optimal density and solder reliability
• ±5% tolerance for precise mid-high applications
• 1/8W rating for common limiting and biasing tasks
• Thick film for excellent environmental and thermal stability
• Wide temp range for broad compatibility
• RoHS compliant and eco-friendly
• Great solder joint strength in assembly
• The 150 Ohm (151) 0805 SMD Resistor is a robust mid-high value component designed for effective current restriction and reference generation in compact circuits. Featuring ±5% tolerance and 1/8W power rating, it is highly effective for current limiting in standard LEDs and transistor stages, setting bias points in amplifiers, voltage dividers for scaling analog signals, pull-up resistors in various digital interfaces, and general-purpose filtering or level shifting.
• Thick film technology delivers low noise, minimal drift, and strong protection against humidity, temperature extremes, and long-term use, making it perfect for LED modules, audio circuits, sensor boards, power regulators, communication devices, and embedded projects.
• The 0805 package provides balanced thermal dissipation and soldering convenience, suitable for high-volume manufacturing and individual assembly. RoHS compliant and crafted with precision, this resistor offers consistent, high-value performance at an affordable price for diverse electronic needs.

What is the price of 150 Ohm 151 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 150 Ohm 151 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 150 Ohm 151 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 150 Ohm 151 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Resistance value?
   150 Ohms (151 marking).
2. Package?
   0805 SMD (2012 Metric).
3. Power?
   1/8W (0.125W).
4. Tolerance?
   ±5%.
5. Max voltage?
   150V.
6. Temperature range?
   -55°C to +155°C.
7. Soldering method?
   Reflow/hand supported.
8. RoHS?
   Yes, compliant.
9. Marking?
   “151”.
10. Applications?
    LED/transistor limiting, biasing, dividers, pull-up, analog filtering.
