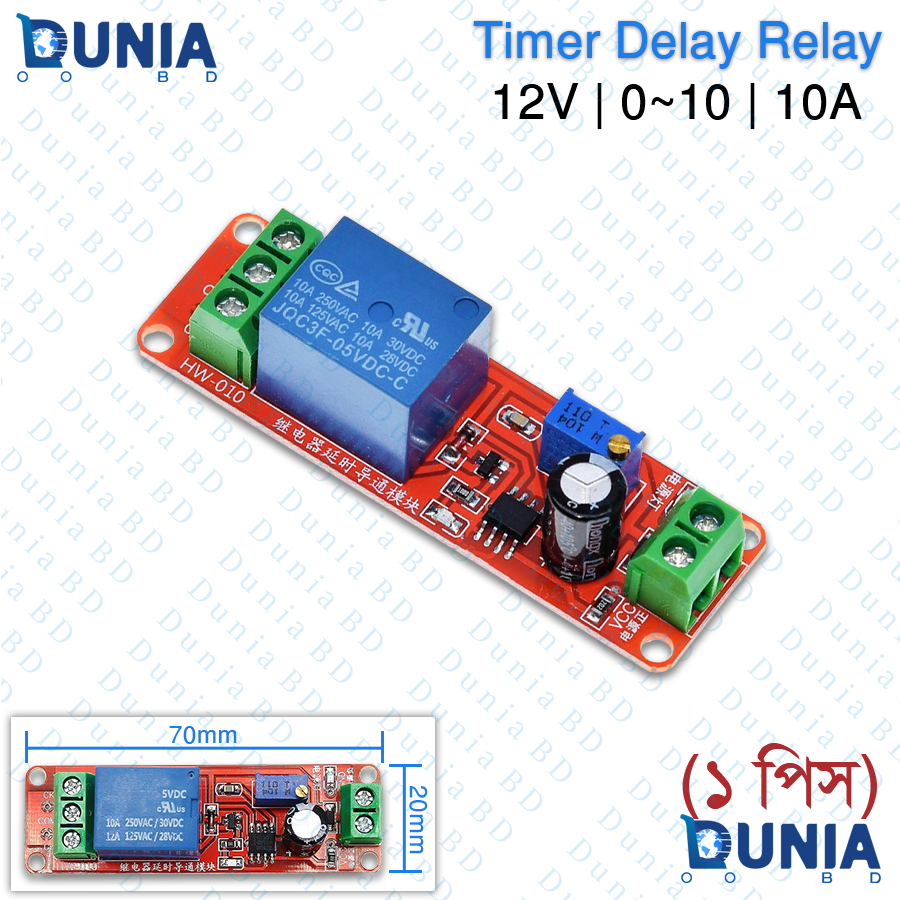

Timer Delay Relay Module 12V 0-10s 10A Switch

Specifications:

• Timer Delay Relay Module HW-010 standard time delay conduction relay module.
• Operating Voltage (VCC): 12V DC input power supply.
• Time Delay Adjustable Range: 0 to 10 seconds continuous configuration.
• Maximum Relay Contact Rating: 10A 250VAC, 10A 30VDC, 10A 125VAC, 10A 28VDC.
• Timing Calibration Element: High-precision blue multi-turn trimming potentiometer (104).
• Output Interface Options: 3-terminal green screw block (CK/Normally Open, COM/Common, CB/Normally Closed).
• Input Interface Configuration: 2-terminal green screw terminal block (VCC, GND).
• Module Structural Length: 70mm standard length layout profile.
• Module Structural Width: 20mm ultra-slim space-saving footprint.
• Status Diagnostic Feedback: Onboard SMD power LED indicator light.

Features:

• Wide Adjustable Delay Range: Offers an easily configurable 0 to 10 seconds time delay window utilizing a stable multi-turn potentiometer.
• High Power Relay Switching: Handles high-capacity electrical loads up to 10A across both AC and DC circuitry configurations.
• Dual System Compatibility: Perfectly serves automated automotive electronics setups like industrial igniters and basic 12V vehicle systems.
• Robust Screw Terminals: Equipped with separate dedicated screw terminals for input power and isolated 3-way output terminal operations.
• Ultra-Slim Hardware Profile: Its compact 70mm x 20mm dimensional frame ensures a seamless install inside congested automation enclosures.
• The Timer Delay Relay Module 12V 0-10s 10A Switch is a highly efficient, industrial-grade automation instrument engineered for precise temporal electronic control.
• Powered continuously via a standard 12V DC input, this module features the versatile HW-010 design profile coupled with an adjustable multi-turn trimming potentiometer that permits operators to smoothly configure delay actions ranging anywhere from 0 to 10 seconds.
• The onboard heavy-duty relay reliably switches hefty electrical systems, supporting current demands up to 10A under common 250VAC or 30VDC operation thresholds.
• Physical connections are made highly robust through integrated industrial green screw terminal blocks—separating basic VCC/GND inputs from the flexible output interface consisting of Normally Open (CK), Common (COM), and Normally Closed (CB) terminals. Spanning a compact, space-saving 70mm by 20mm board area, this time-delay circuit board is highly optimized for automotive relay integrations, customized machine startup controllers, delayed lighting configurations, and complex multi-battery electrical isolation setups.

What is the price of Timer Delay Relay Module 12V 0-10s 10A Switch in Bangladesh?

The latest price of Timer Delay Relay Module 12V 0-10s 10A Switch in Bangladesh is Price: ৳185.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Timer Delay Relay Module 12V 0-10s 10A Switch in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Timer Delay Relay Module 12V 0-10s 10A Switch From Dunia.com.bd . We have a few collections of latest Relay Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ:

1. What is the required operating voltage to supply power to this module?
   The module runs continuously and reliably on a stable 12V DC power source.
2. What is the adjustable time delay duration supported by the board?
   The delay can be finely adjusted across a spectrum ranging from 0 to 10 seconds.
3. How do users modify the precise time delay duration on this module?
   The timing can be adjusted by rotating the onboard blue multi-turn trimming potentiometer.
4. What is the maximum load switching capability of the integrated blue relay?
   The integrated relay successfully manages heavy switching loads up to 10A for AC and DC.
5. What are the primary designations for the three output terminals on the board?
   The three output terminals are structurally labeled as CK (Normally Open), COM (Common), and CB (Normally Closed).
6. Does this module feature visual confirmation for active operating power?
   Yes, a dedicated onboard SMD LED power indicator lights up to confirm standard power flow.
7. What are the exact physical dimensional measurements of the circuit footprint?
   The overall layout measures exactly 70mm in structural length and 20mm in body width.
8. Can this device be configured for automated vehicle igniter delay operations?
   Yes, its standard 12V footprint makes it highly suitable for automotive relay and starter delay tasks.
9. Does the circuit require complex soldering during installation hookups?
   No, the pre-soldered green terminal screw blocks allow secure wire insertion using a simple screwdriver.
10. Where can I securely buy an authentic version of this timer board in BD?
    The genuine 12V timer delay module is available for direct secure purchase on the Dunia BD website.
