SP Series Quick Coupler Pneumatic Hose Barb Socket Online in Bangladesh 6mm, 8mm, 10mm, 12mm

Specifications

• SP series quick coupler
• Material: Hardened Steel (Chrome Plated Finish)
• Type: Socket (Female) with Hose Barb
• Valve: Valved (Single Shut-Off)
• Applicable Fluid: Air
• Working Pressure: 0 ~ 1.5 MPa (15 bar / 218 PSI)
• Proof Pressure: 2.0 MPa
• Temperature Range: -20°C to +80°C
• Seal Material: Nitrile Rubber (NBR)
• Hose Inner Diameter Options:  SP-10: 6mm, SP-20: 8mm, SP-30: 10mm, SP-40: 12mm

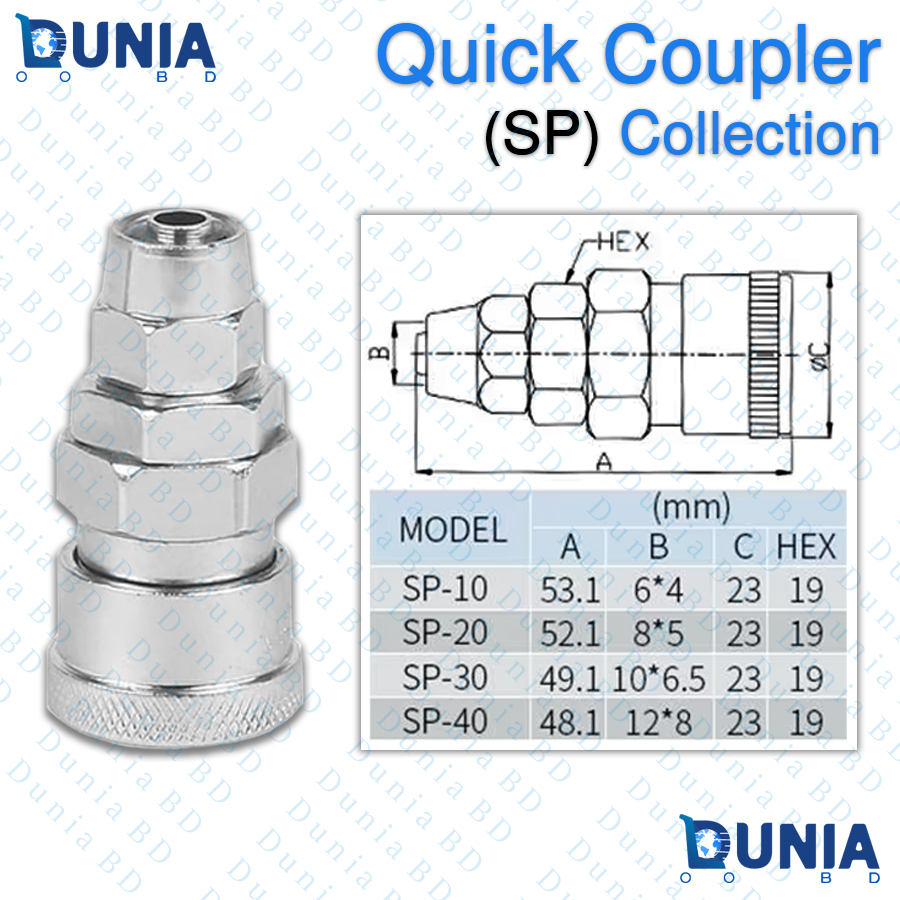

• Overall Length (A approx.): 53.1mm (SP-10), 52.1mm (SP-20), 49.1mm (SP-30), 48.1mm (SP-40)
• Hex Size: 19mm
• Weight (approx.): 90-120g (depending on size)

Features

• One-hand quick connect and disconnect with matching plugs
• Built-in automatic shut-off valve for safety and zero air loss
• Durable chrome-plated hardened steel body
• Integrated hex for easy hose installation
• High airflow performance with minimal restriction
•  Four popular hose sizes: 6mm, 8mm, 10mm, 12mm
• Corrosion-resistant and suitable for heavy-duty use
• The SP Series Quick Coupler (Hose Barb Socket) is a robust and compact pneumatic fitting engineered for fast, secure, and leak-free air hose connections. Constructed from hardened steel with a high-quality chrome-plated finish, these sockets provide superior corrosion resistance and longevity, ideal for demanding environments like workshops, factories, garages, and industrial sites.
• Featuring one-touch operation, simply push in a compatible plug to lock securely and pull the sleeve to release. The integrated valve automatically shuts off airflow upon disconnection, preventing pressure loss and enhancing safety. The hex section offers excellent grip for easier hose attachment.
• Available in four standard variations:  SP-10 – 6mm hose, SP-20 – 8mm hose, SP-30 – 10mm hose, SP-40 – 12mm hose
• These sockets ensure high airflow with low pressure drop, allowing your air tools and compressors to perform optimally. Compatible with standard quick coupler plugs, the SP series is a professional-grade choice trusted throughout Bangladesh.
• Get genuine quality at competitive prices with fast delivery anywhere in the country. Order your SP series quick coupler sockets today from Dunia BD.

What is the price of SP Series Quick Coupler Pneumatic Hose Barb Socket Online in Bangladesh 6mm, 8mm, 10mm, 12mm in Bangladesh?

The latest price of SP Series Quick Coupler in Bangladesh starts from Price: ৳95.00 to Price: ৳113.00 taka for one piece float valve. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy SP Series Quick Coupler Pneumatic Hose Barb Socket Online in Bangladesh 6mm, 8mm, 10mm, 12mm in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original SP Series Quick Coupler From Dunia.com.bd . We have few collection of latest Pneumatic Fittings to purchase. Order Pneumatic Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is an SP series quick coupler socket?
   SP series sockets are female quick connect fittings with hose barb ends and a built-in shut-off valve.
2. Which hose sizes are available?
   6mm (SP-10), 8mm (SP-20), 10mm (SP-30), and 12mm (SP-40).
3. Does the socket have a valve?
   Yes, it has a single shut-off valve that stops air flow when disconnected.
4. What is the maximum working pressure?
   1.5 MPa (15 bar / 218 PSI).
5. Can it be used with water or other fluids?
   Primarily designed for compressed air; consult for other applications.
6. What plugs are compatible?
   Works with standard matching male quick coupler plugs (non-valved).
7. What is the hex section for?
   Provides better grip and leverage when pushing the hose onto the barb.
8. What material is used?
   Hardened steel with chrome plating for durability and rust resistance.
9. How do I attach the hose?
   Push the hose firmly over the barb; use a hose clamp for high-pressure security.
10. What is the temperature range?
    -20°C to +80°C.
