PH Series Quick Coupler Pneumatic Hose Barb Plug Online in Bangladesh 6mm, 8mm, 10mm, 12mm

Specifications

• PH series quick coupler
• Material: Hardened Steel (Chrome Plated Finish)
• Type: Plug (Male) with Hose Barb
• Valve: Non-Valved
• Applicable Fluid: Air
• Working Pressure: 0 ~ 1.5 MPa (15 bar / 218 PSI)
• Proof Pressure: 2.0 MPa
• Temperature Range: -20°C to +80°C
• Seal Material: Nitrile Rubber (NBR)
• Hose Inner Diameter Options:  PH-10: 6mm, PH-20: 8mm, PH-30: 10mm, PH-40: 12mm

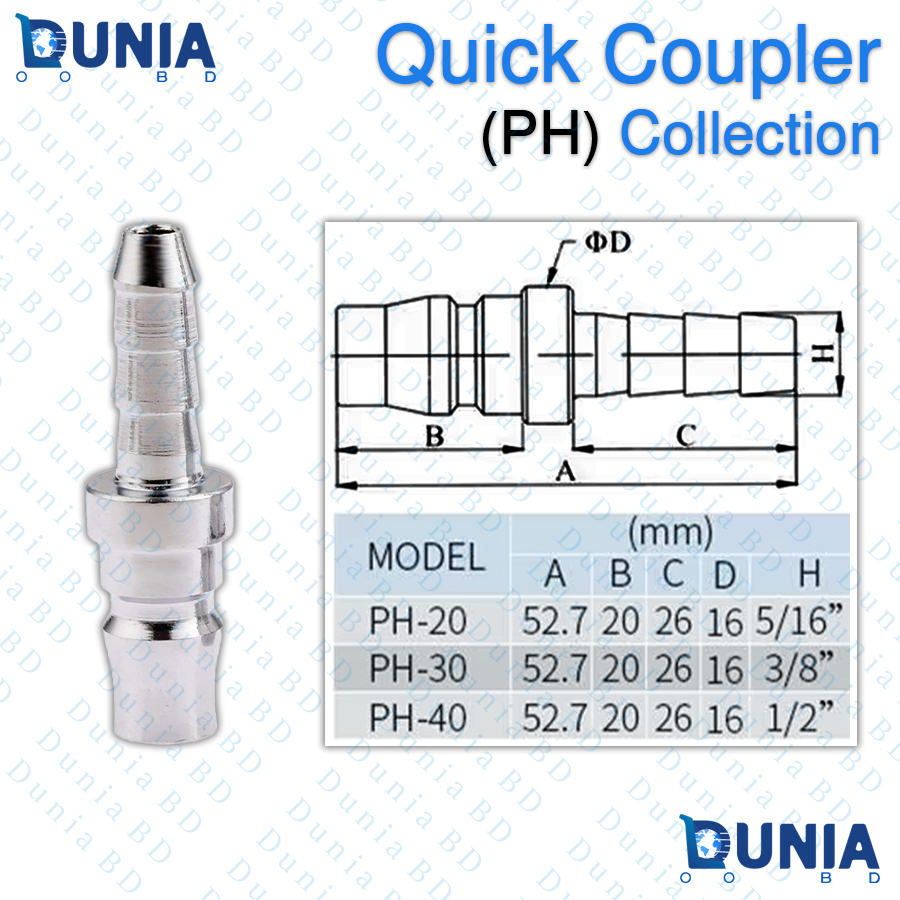

• Overall Length (approx.): 52.7 mm (for PH-20/30/40)
• Barb Length (B approx.): 20 mm
• Weight (approx.): 40-60g (depending on size)

Features

• One-touch quick connection with SH series sockets
• Durable chrome-plated hardened steel construction
• Corrosion-resistant and built for heavy-duty use
• High airflow with minimal pressure drop

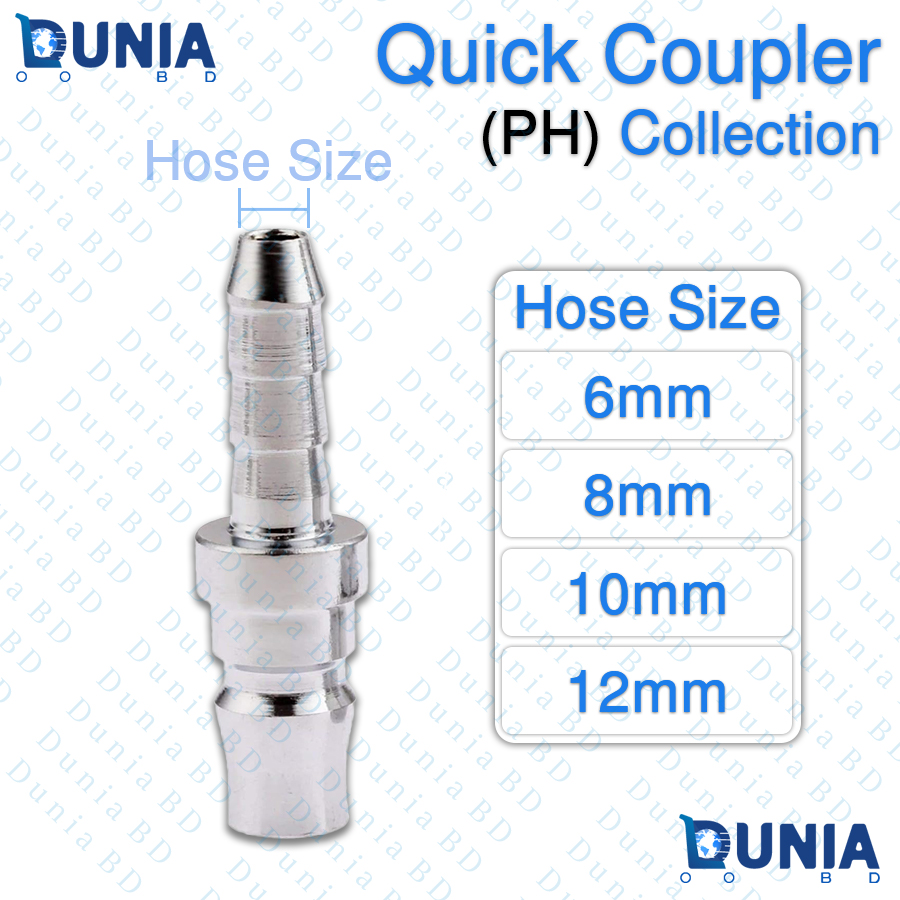

• Available in four common hose sizes: 6mm, 8mm, 10mm, 12mm
• Compatible with standard Nitto/Japanese type sockets (SH series)
• Ideal for air tools, compressors, and pneumatic systems
• The PH Series Quick Coupler (Hose Barb Plug) is the male counterpart to the popular SH series sockets, offering fast, secure, and reliable pneumatic connections. Made from hardened steel with a premium chrome-plated finish, these plugs are highly durable, rust-resistant, and designed for daily professional use in workshops, garages, factories, and industrial applications.
• With simple one-touch operation, just insert the plug into an SH socket for an instant airtight lock – no tools required. The non-valved design ensures maximum airflow when connected, delivering full compressor power to your air tools with virtually no pressure loss.
• Available in four standard variations to match common air hose sizes: PH-10 – 6mm hose, PH-20 – 8mm hose, PH-30 – 10mm hose, PH-40 – 12mm hose
• Fully compatible with Nitto Hi-Cupla and other Japanese-style SH sockets, these plugs are a trusted choice for impact wrenches, spray guns, nailers, and other pneumatic equipment across Bangladesh.
• Upgrade your air line setup with genuine quality PH series plugs that provide years of leak-free performance at an affordable price. Order now from Dunia BD and enjoy fast, reliable delivery anywhere in Bangladesh.

What is the price of PH Series Quick Coupler Pneumatic Hose Barb Plug Online in Bangladesh 6mm, 8mm, 10mm, 12mm in Bangladesh?

The latest price of PH Series Quick Coupler in Bangladesh starts from Price: ৳245.00 to Price: ৳245.00 taka for one piece float valve. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PH Series Quick Coupler Pneumatic Hose Barb Plug Online in Bangladesh 6mm, 8mm, 10mm, 12mm in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original PH Series Quick Coupler From Dunia.com.bd . We have few collection of latest Pneumatic Fittings to purchase. Order Pneumatic Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is a PH quick coupler plug?
   PH stands for “Plug Hose” – it is the male part with a hose barb that inserts into a female SH socket.
2. Which hose sizes are available?
   6mm (PH-10), 8mm (PH-20), 10mm (PH-30), and 12mm (PH-40) inner diameter hoses.
3. Does the plug have a valve?
   No, PH plugs are non-valved for maximum airflow; the valve is in the matching SH socket.
4. What is the maximum working pressure?
   1.5 MPa (15 bar / 218 PSI).
5. Can it be used with water or oil?
   Designed primarily for compressed air. Confirm with seller for other fluids.
6. Is it compatible with American or European couplers?
   No, these are Japanese/Nitto style and only work with matching SH sockets.
7. What material is it made from?
   Hardened steel with chrome plating for strength and corrosion resistance.
8. What is the operating temperature range?
   -20°C to +80°C.
9. How to install on the hose?
   Push the hose firmly over the barb; use a hose clamp for high-pressure security.
10. Can I disconnect under pressure?
    Possible due to single shut-off in the socket, but releasing pressure first is recommended for safety and seal longevity.
