SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch 3Pin

Specifications

• SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch
• Model: SK-12S07 (SK12S07)
• Switch Type: Right Angle / Side Handle Slide Switch
• Contact Configuration: SPDT (1P2T – Single Pole Double Throw)
• Terminal Count: 3 Pin Through-Hole Right Angle Terminals

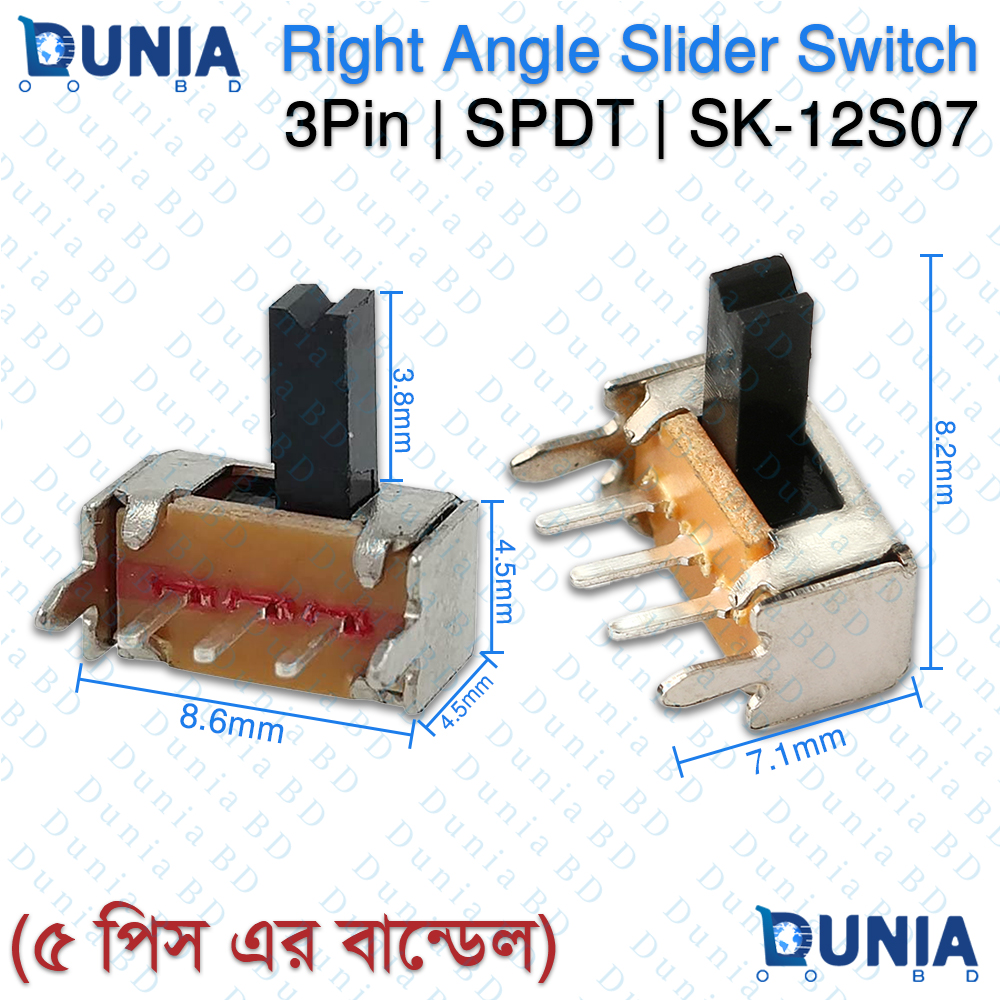

• Base Dimensions: 8.6mm Length x 4.5mm Width x 4.5mm Height
• Overall Height: 8.2mm (Including Handle)
• Handle Height: 3.8mm
• Pin Spacing / Pitch Width: 7.1mm Side Width
• Package Quantity: 5 Pieces Bundle Pack

Features

• Right Angle Side-Actuated Design: Specifically configured with a side-facing black plastic lever (3.8mm height), allowing users to easily toggle power or signals along the edge of printed circuit boards with low vertical clearance.
• 1P2T SPDT Switching Logic: Built with Single Pole Double Throw (1P2T) contact topology, providing dependable 2-position (ON-ON / Changeover) switching functionality for signal routing or low-voltage power supply control.
• Ultra-Compact Footprint: Compact 8.6mm x 4.5mm body dimensions make it an ideal choice for space-constrained electronics, small hand-held gadgets, and dense custom PCB prototyping.
• Durable Through-Hole Mounting: Features 3 right-angle solder terminals paired with sturdy metal mounting tabs, ensuring solid mechanical anchor strength against repeated manual sliding forces.
• Economical 5-Piece Value Pack: Supplied in a convenient bundle pack containing 5 individual SK-12S07 switches, providing extra inventory for prototyping, production runs, and replacement needs.

What is the price of SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch in Bangladesh?

The latest price of SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch in Bangladesh is Price: ৳20.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original SK-12S07 Right Angle Slide Switch 1P2T SPDT Side Toggle Mini Switch From Dunia.com.bd . We have a few collections of latest Toggle Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What model number is this right angle slide switch?
    The model number for this mini slider switch is SK-12S07.
2. What contact configuration does this switch utilize?
   It features a Single Pole Double Throw (1P2T / SPDT) contact setup.
3. How many pins are on this SK-12S07 toggle switch?
   It has 3 right-angle PCB through-hole solder terminals.
4. What are the base dimensions of the switch body?
   The main body measures 8.6mm length by 4.5mm width.
5. What is the height of the black slider handle?
   The black actuator knob height is precisely 3.8mm.
6. How many switches come in a single purchase bundle?
   This product offer comes as a 5-piece bundle pack.
7. Is this switch suitable for side mounting on PCB edges?
   Yes, its right-angle pin structure is made for edge mounting.
8. What is the total overall height of the component?
   The overall total height from top to base is 8.2mm.
9. Can this mini switch be used for low-power electronic projects?
   Yes, it is ideal for low-voltage DC power and signal switching.
