12V 1 Channel Wireless Remote Control Switch with Relay Module and Remote

Specifications

• 12v 1 channel wireless remote control switch
• Operating Voltage: DC 12V
• Channel: 1 Channel
• Relay Rating: 10A 250VAC / 10A 30VDC
• Frequency: 433MHz
• Transmission Range: Up to 100 meters (open area)
• Standby Current: Less than 10mA
• Receiver Sensitivity: > -90dBm
• Control Modes: Toggle, Momentary, Latching
• Terminals: NO (Normally Open), NC (Normally Closed), COM (Common)

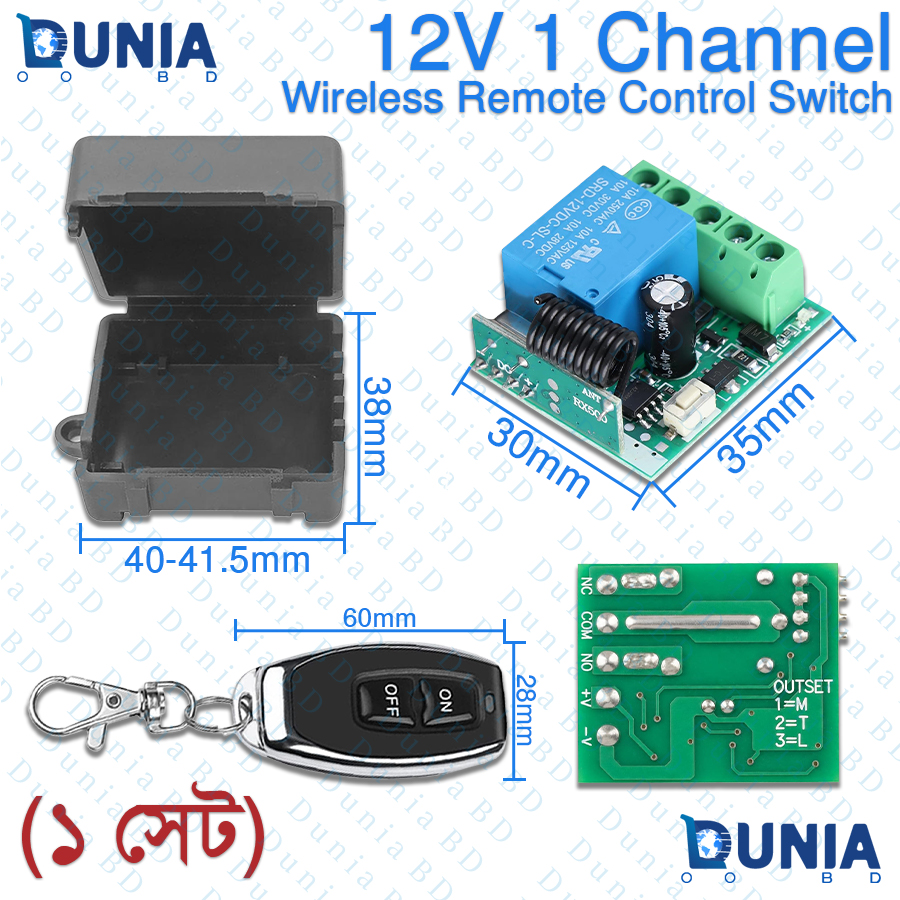

• Receiver PCB Size: Approximately 60mm x 35mm x 30mm (with antenna)
• Enclosure Size: Approximately 80mm x 40-41.5mm x 38mm
• Remote Size: Approximately 60mm x 28mm

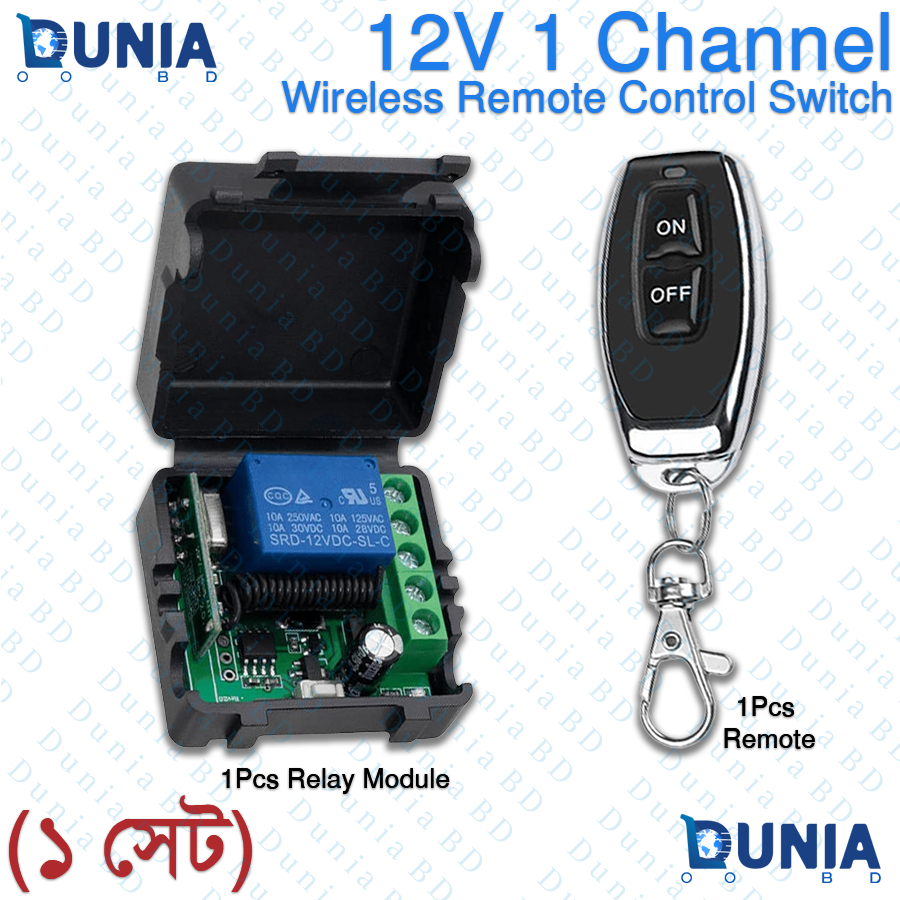

• Included Items: 1 x Relay Receiver Module, 1 x Wireless Remote

Features

• Wireless RF control with included remote control (ON/OFF buttons)
• 1 channel relay for controlling single device or circuit
• Operating voltage: DC 12V
• High load capacity: 10A relay (supports up to 250VAC or 30VDC)
• Long transmission range: Up to 100 meters in open area
• Multiple modes: Toggle (self-lock), Momentary, and Latching
• Compact design with protective enclosure box
• Easy installation with screw terminals (NO, NC, COM)
• Suitable for lights, fans, motors, garage doors, and more
• Includes 1 receiver module and 1 remote
• The 12V 1 Channel Wireless Remote Control Switch is a reliable and versatile RF remote control system designed for easy wireless operation of electrical devices. This kit includes a compact receiver module with a built-in 10A relay and a handy keychain remote with ON/OFF buttons, allowing you to control lights, fans, motors, garage doors, gates, or any other appliance from a distance of up to 100 meters in open spaces.
• Powered by DC 12V, the receiver features a high-quality Songle relay (SRD-12VDC-SL-C) that supports loads up to 10A at 250VAC or 30VDC, making it suitable for both AC and DC applications. The system operates at 433MHz frequency with super heterodyne reception for stable performance, even through walls and obstacles.
• Key advantages include multiple working modes – toggle (press ON to stay on, press OFF to turn off), momentary (hold to activate), and latching – selectable via a learning button. Installation is straightforward with clear screw terminals for input power and output connections (NO/NC/COM).
• Perfect for home automation, security systems, industrial control, traffic gates, or DIY projects in Bangladesh. The included protective plastic enclosure keeps the module safe from dust and moisture. Buy this affordable wireless remote switch from Dunia BD and enjoy convenient remote control without complicated wiring.

What is the price of 12V 1 Channel Wireless Remote Control Switch with Relay Module and Remote in Bangladesh?

The latest price of 12V 1 Channel Wireless Remote Control Switch  in Bangladesh is Price: ৳455.00 taka for 1 Set Meter . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 12V 1 Channel Wireless Remote Control Switch with Relay Module and Remote in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 12V 1 Channel Wireless Remote Control Switch From Dunia.com.bd . We have few collection of latest Remote Control Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the operating voltage of this wireless remote switch?
   The receiver operates on DC 12V power supply.
2. How far can the remote control the receiver?
   Up to 100 meters in open areas, though walls may reduce the range.
3. What is the maximum load the relay can handle?
   The relay supports 10A at 250VAC or 10A at 30VDC.
4. Does it support both AC and DC loads?
   Yes, the dry relay contacts (NO/NC/COM) can control both AC and DC devices.
5. What modes does this remote switch support?
   It supports Toggle (self-lock), Momentary (jog), and Latching modes.
6. How do I pair the remote with the receiver?
   Press the learning button on the receiver, then press a button on the remote to pair.
7. Can I use this for controlling home lights or fans?
   Yes, it’s ideal for lights, fans, garage doors, and other home appliances.
8. Is the enclosure waterproof?
   The plastic box provides basic protection, but it’s not fully waterproof.
9. What frequency does it use?
   It operates at 433MHz RF frequency.
10. How many remotes can be paired with one receiver?
    Up to 50 remotes can be learned and stored.
