PD65W Fast Charging Module Type-C Interface PD3.1 PPS Fast Charging QC3.0 SCP CKCS U1E

Specification

• PD65W fast charging module
• Input voltage: DC 8 ~ 32V
• Output voltage: when connected to a TYPE-C compatible power receiving device
• Automatic adjustment between 3.3V and -21V after standby (Input power
• voltage should be higher than output voltage. To trigger 20V fast charge
• input voltage should be higher than 20V)
• Output power: maximum 65W (5V3A. 9V3A, 12V3A
  20V 3.25A etc.)
• Conversion efficiency: 92% – 97%
• Output voltage ripple: <200mV
• No-load current: <3mA
• Input overvoltage and under voltage protection
• Input overcurrent protection Output overcurrent and short circuit protection
• Over temperature protection for combine
• Product application
• Various types of power transformation fast charging output
• Supported charging protocols 2, Apple protocol Qualcomm qc 2.0 and qc 3.0 Huawei fast charging protocol fcp and scp Samsung fast charging protocol afc Mtk pe 1.1 and mtk pe 2.0 0/PD 3.1 (pps) output protocol

Features

• If you use a 20-24V power supply as input, it is recommended to turn on the power supply before connecting to this module.
• Otherwise, the power supply may turn on slowly, resulting in an error in the module matching performance and the inability to output 65w.

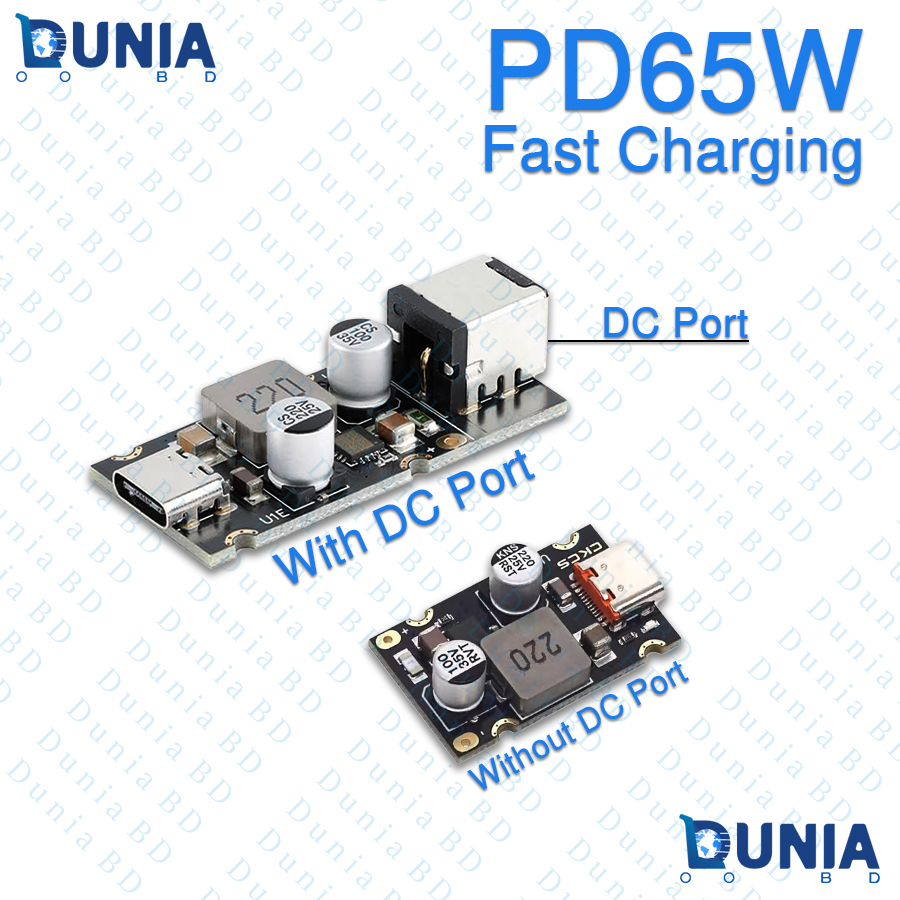

• There are two types of DC models: 5521 and 5525. 5521: outer diameter 5.5mm, inner diameter 21mm; 5525: outer diameter 5.5mm, inner diameter 25mm
• The length of the DC model is increased by 12mm compared to the standard model which is 44mm. Both the Type-C mother seat and the DC seat protrude about 1mm from the edge of the plate.
• The 5521 model is also compatible with the 5525 connector with tuning fork splitter, as shown in the figure below

What is the price of PD65W Fast Charging Module Type-C Interface PD3.1 PPS Fast Charging QC3.0 SCP in Bangladesh?

The latest price of PD65W Type-C Fast Charging Module in Bangladesh is Price: ৳155.00 – ৳207.50Price range: ৳155.00 through ৳207.50 taka for 1Pcs Charger Module . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PD65W Fast Charging Module Type-C Interface PD3.1 PPS Fast Charging QC3.0 SCP in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original PD65W Type-C Fast Charging Module From Dunia.com.bd . We have few collection of latest Charger Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the maximum output wattage of this PD module?
   It provides up to 65W maximum fast charging output power.
2. What DC input voltage range does this module accept?
   It operates safely with input voltages between DC 8V and 30V.
3. Can I use a 12V battery to power this fast charger board?
   Yes, it works great with 12V battery and solar configurations.
4. Does it feature a standard DC female power jack?
   Yes, it includes a 5.5mm x 2.1mm DC input jack.
5. Can this module charge Type-C laptops that support PD?
   Yes, it supports 65W Power Delivery suitable for laptops.
6. What are the outer dimensions of this converter PCB board?
   The board measures 44mm in length and 20mm in width.
7. Does it have direct wire soldering pads for input?
   Yes, it includes labeled positive and negative solder pads.
8. What fast charging protocols are supported by this board?
   It supports PD3.0, QC3.0, AFC, and FCP protocols.
9. How many modules are included in one package?
   Each purchase unit contains 1 piece of PD65W charger module.
10. Is this module suitable for DIY power bank builds?
    Yes, it is ideal for custom fast-charging projects.
