KAN-10 Power Pushbutton Switch ON OFF Control Panel with Metal Bracket

Specifications

• KAN-10 Power Pushbutton Switch
• Model: KAN-10
• Product Type: Power Pushbutton Switch
• Switch Function: ON / OFF
• Operation Type: Push Button
• Switching Type: Self-Locking / Latching
• Button Configuration: Red OFF Button + Green ON Button
• Body Material: Plastic
• Mounting Type: Panel / Bracket Mounted
• Mounting Bracket: Metal Bracket
• Bracket Material: Plated Metal
• Overall Length: Approximately 140mm / 14cm
• Body Length: Approximately 108mm / 10.8cm
• Body Width/Depth: Approximately 48mm / 4.8cm
• Control Panel: Two Push Buttons
• Button Marking: ON and OFF
• Application: Power Control, Electrical Equipment and Machinery
• Suitable For: Manual Power Switching and Equipment Control
• Rated Voltage: Up to AC 380V 5-10A for commonly specified KAN-10 versions
• Contact Type: Latching ON-OFF
• Installation: Surface / Panel Mount
• Product Type: Ready-to-Install Switch Assembly
• Package: 1 Piece

Features

• KAN-10 Power Pushbutton Switch designed for simple ON/OFF electrical control.
• Features separate green ON and red OFF push buttons for easy visual identification.
• Self-locking/latching operation keeps the selected switch state until the opposite button is pressed.
• Comes with a practical metal mounting bracket for convenient installation.
• Approximate overall length is 140mm, while the main switch box body is approximately 108mm long.
• Approximate body depth/width is 48mm based on the provided product dimensions.
• The metal bracket provides a convenient mounting structure for equipment panels and enclosures.
• Suitable for manual control of compatible low-voltage electrical circuits and equipment.
• Compact control-box design keeps the ON/OFF controls together in one assembly.
• Useful for DIY electrical projects, machinery control panels, workshop equipment and low-voltage systems.
• KAN-10 switch variants are commonly specified as self-locking ON/OFF push-button switches.
• Some commonly listed KAN-10 specifications indicat AC 380V 5-10A rating.
• The KAN-10 Power Pushbutton Switch is a practical ON/OFF control switch assembly designed for manual power control of compatible electrical equipment and low-voltage circuits.

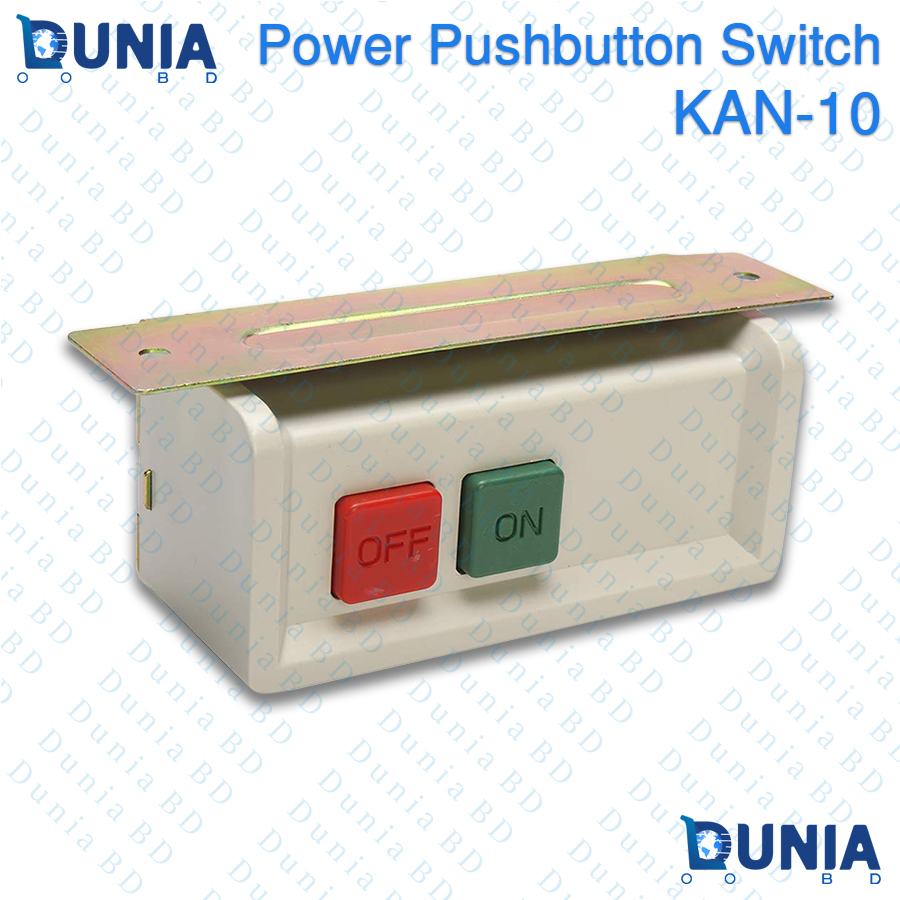

• It features two clearly marked push buttons, including a green ON button and a red OFF button, making it easy to identify the required operation at a glance.
• The KAN-10 switch uses a self-locking/latching mechanism, meaning the selected ON or OFF state remains in position after pressing the button until the opposite control is activated.
• This type of push-button switch is commonly used where a simple maintained ON/OFF control is required.
• KAN-10 is listed by manufacturers and suppliers as a push-button switch model, while commonly available KAN-10 variants are described as self-locking ON/OFF switches.

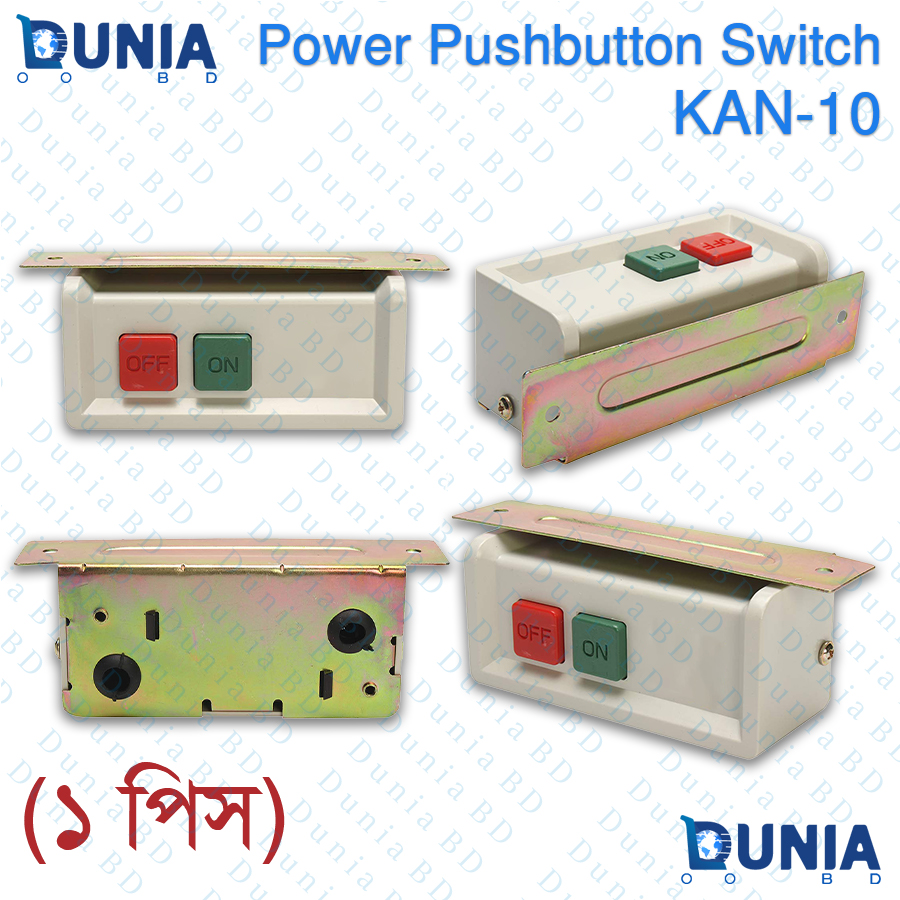

• This product comes with a metal mounting bracket, making it suitable for installation on equipment, electrical enclosures, control panels, workbenches and other suitable structures.
• The bracket provides a convenient way to mount the switch assembly securely rather than leaving the control buttons loose.

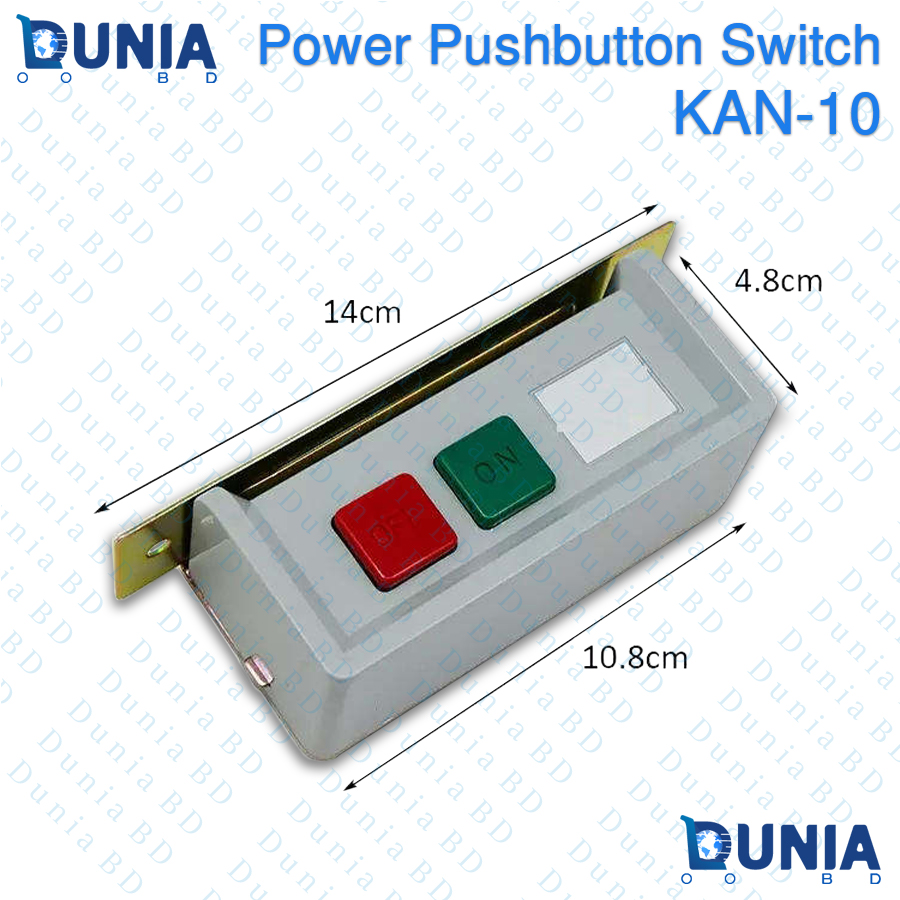

• According to the dimensions shown in the supplied product images, the overall length is approximately 14cm, while the main body is approximately 10.8cm long and 4.8cm wide/deep.
• These dimensions make the assembly suitable for applications where a compact but easily accessible ON/OFF control panel is required.
• The red and green button arrangement provides a clear visual indication of the operating state.
• The green ON button can be used to activate the connected circuit, while the red OFF button can be used to deactivate it, provided the connected electrical circuit is wired appropriately.
• KAN-10 switches are also commonly associated with low-voltage applications. Several product listings specify versions around AC 380V 5-10A, although electrical ratings can vary between manufacturers and production variants.
• Therefore, the actual rating printed or specified for the supplied unit should always be checked before connecting a load.
• The KAN-10 Power Pushbutton Switch can be useful for DIY electronics projects, DC equipment, small machinery, workshop equipment, control panels, battery-powered systems and other applications requiring straightforward manual ON/OFF control.
• For higher-current or mains-voltage applications, the switch should not be assumed to handle the load directly unless the exact model is rated for it.
• In such cases, the push button can be used as a control signal for a properly rated relay, contactor or other switching device.
• Overall, the KAN-10 Power Pushbutton Switch offers a simple, visible and convenient solution for adding dedicated ON/OFF controls to compatible electrical equipment and custom projects.

What is the price of KAN-10 Power Pushbutton Switch ON OFF Control Panel with Metal Bracket in Bangladesh?

The latest price of KAN-10 Power Pushbutton Switch ON OFF Control Panel with Metal Bracket in Bangladesh is Price: ৳275.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy KAN-10 Power Pushbutton Switch ON OFF Control Panel with Metal Bracket in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original KAN-10 Power Pushbutton Switch ON OFF Control Panel with Metal Bracket From Dunia.com.bd . We have a few collections of latest Push Button Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the KAN-10 Power Pushbutton Switch used for?
   It is used for manual ON/OFF control of compatible electrical equipment and low-voltage circuits.
2. Does the KAN-10 switch have both ON and OFF buttons?
   Yes, this assembly has separate green ON and red OFF push buttons.
3. Is the KAN-10 switch self-locking?
   Yes, commonly specified KAN-10 versions use a self-locking latching ON/OFF mechanism.
4. What is the overall length of this switch assembly?
   The overall length shown in the supplied product image is approximately 140mm or 14cm.
5. What is the main body length of the switch?
   The main switch box body is approximately 108mm or 10.8cm long.
6. What is the approximate body depth of this product?
   The supplied dimensions indicate an approximate body depth or width of 48mm.
7. Does the product include a metal mounting bracket?
   Yes, the pictured KAN-10 assembly includes a metal mounting bracket for installation.
8. What is the commonly listed current rating?
   Some KAN-10 variants are commonly specified with a maximum current rating of 1A.
9. What voltage is commonly specified for KAN-10 switches?
   Some listed KAN-10 variants are specified for DC 30V, depending on the exact production version.
10. Can this switch directly control high-current loads?
    Only if the exact switch rating supports the load; otherwise use a properly rated relay or contactor.
