HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button

Specifications

• HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button delivers high-current switching for power cutting tools.
• Model: HX19-X1.
• Electrical Rating: 6A 250V AC / 12A 125V AC.

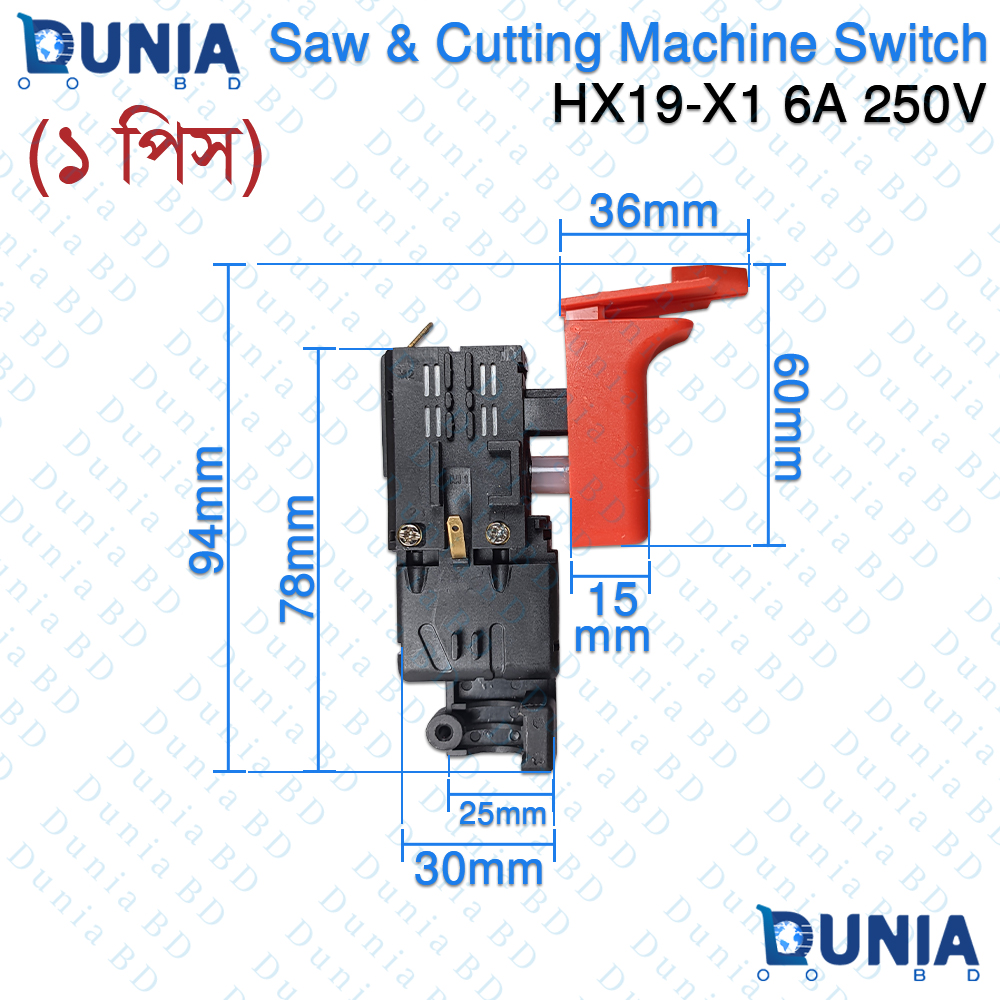

• Overall Dimensions: 94mm total height x 36mm trigger width.
• Body Dimensions: 78mm main body length x 30mm width x 25mm thickness.
• Trigger Lever Size: 60mm length x 15mm width.
• Safety Feature: Side-mounted Power Lock Button for continuous operation.
• Application: Compatible with marble cutters, circular saws, cut-off machines, and various power tools.

Features

• High-Current Power Handling: Rated at 6A 250V AC / 12A 125V AC to handle heavy electric motor loads reliably.

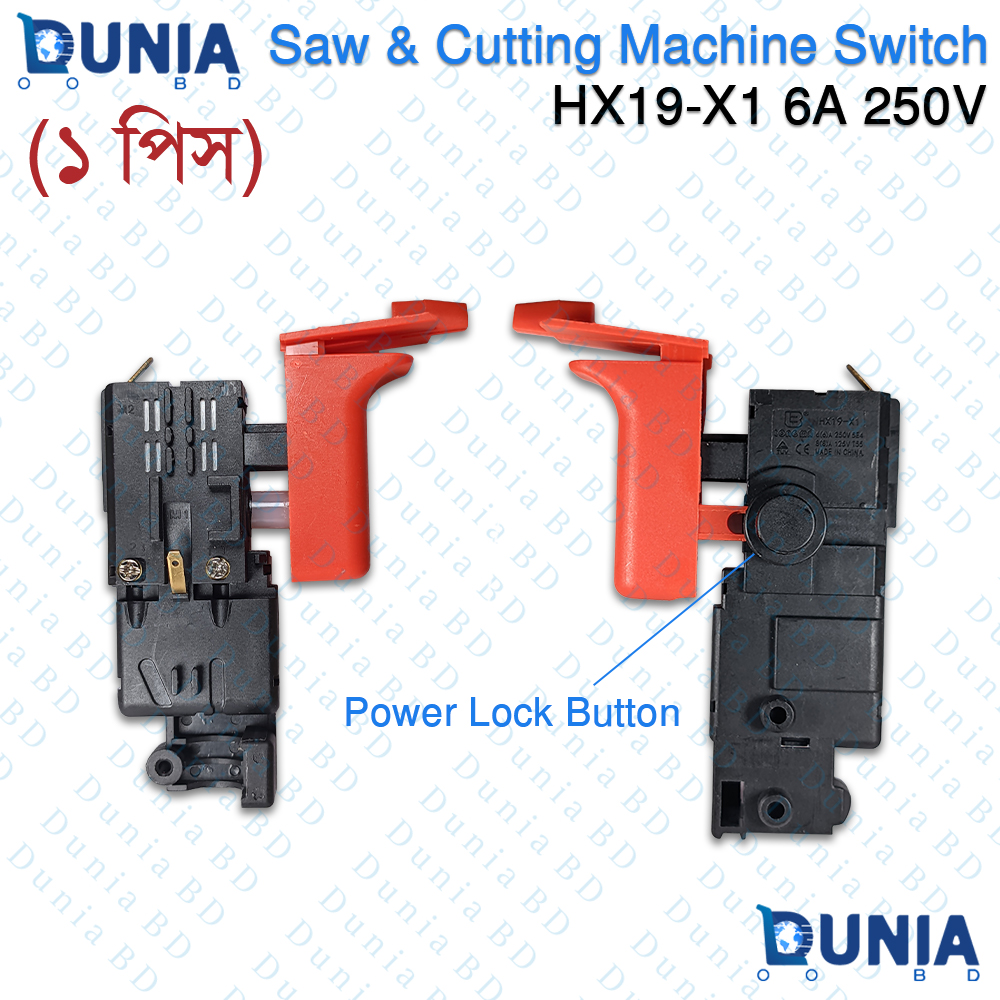

• Side Power Lock Button: Includes a convenient lock-on side push button for sustained operation during long cutting sessions.
• Ergonomic Red Trigger Lever: Designed with a 60mm x 15mm wide curved red lever for comfortable hand grip and precise press control.
• Durable Outer Housing: Built with flame-retardant plastic casing and secure screw connection terminals for safety and durability.
• The HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button is a heavy-duty replacement trigger switch engineered for electric cutting tools and power saws.
• Rated for 6A at 250V AC, it delivers dependable contact performance and handles high motor startup currents.
• Featuring an ergonomic 60mm red trigger lever along with an integrated side lock button, it allows operators to lock the power state on for convenient continuous cutting tasks.
• With a 78mm x 30mm x 25mm compact body profile and standard terminal mountings, this switch replacement ensures easy installation into marble cutters, circular saws, and tile cutting machines.

What is the price of HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button in Bangladesh?

The latest price of HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button in Bangladesh is Price: ৳380.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original HX19-X1 6A 250V Saw and Cutting Machine Switch Trigger with Lock Button From Dunia.com.bd . We have a few collections of latest Push Button Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is HX19-X1 Machine Switch?
   It is a trigger switch designed for saws and cutting tools.
2. What is power rating of HX19-X1 Machine Switch?
   It is rated for 6A 250V AC and 12A 125V AC.
3. Does HX19-X1 Machine Switch feature power lock button?
   Yes, it includes a side-mounted lock button for continuous operation.
4. What are dimensions of HX19-X1 Machine Switch body?
   The main body measures 78mm long by 30mm wide by 25mm thick.
5. What is overall height of HX19-X1 Machine Switch?
   The total height of the entire assembly is 94mm.
6. What color is trigger on HX19-X1 Machine Switch?
   It features an ergonomic red plastic trigger lever.
7. Which power tools use HX19-X1 Machine Switch?
   It fits marble cutters, circular saws, and various cutting machines.
8. Is HX19-X1 Machine Switch durable?
   Yes, built with high-grade heat-resistant casing and brass contact points.
9. How long is trigger lever on HX19-X1 Machine Switch?
   The red trigger lever measures 60mm in total length.
10. Where to buy HX19-X1 Machine Switch in BD?
    You can purchase original trigger switches directly online from our website.
