GX-591 Portable Spot Welder Controller Board with Digital Display Module

Specifications

• GX-591 Portable Spot Welder Controller Board with Digital Display Module
• Model: GX-591
• Power Supply Voltage Range: 11.5V – 14.8V DC
• MOSFET Configuration: High-Power 6 MOS Tubes Array
• Display Type: 3-Digit LED Segment Digital Display
• Input Connectors: XT60 Power Input Interface, Foot Switch Jack
• Control Buttons: Gear Plus/Shutdown, Gear Minus/Function Setting
• Board Dimensions: 89mm Length x 54mm Width

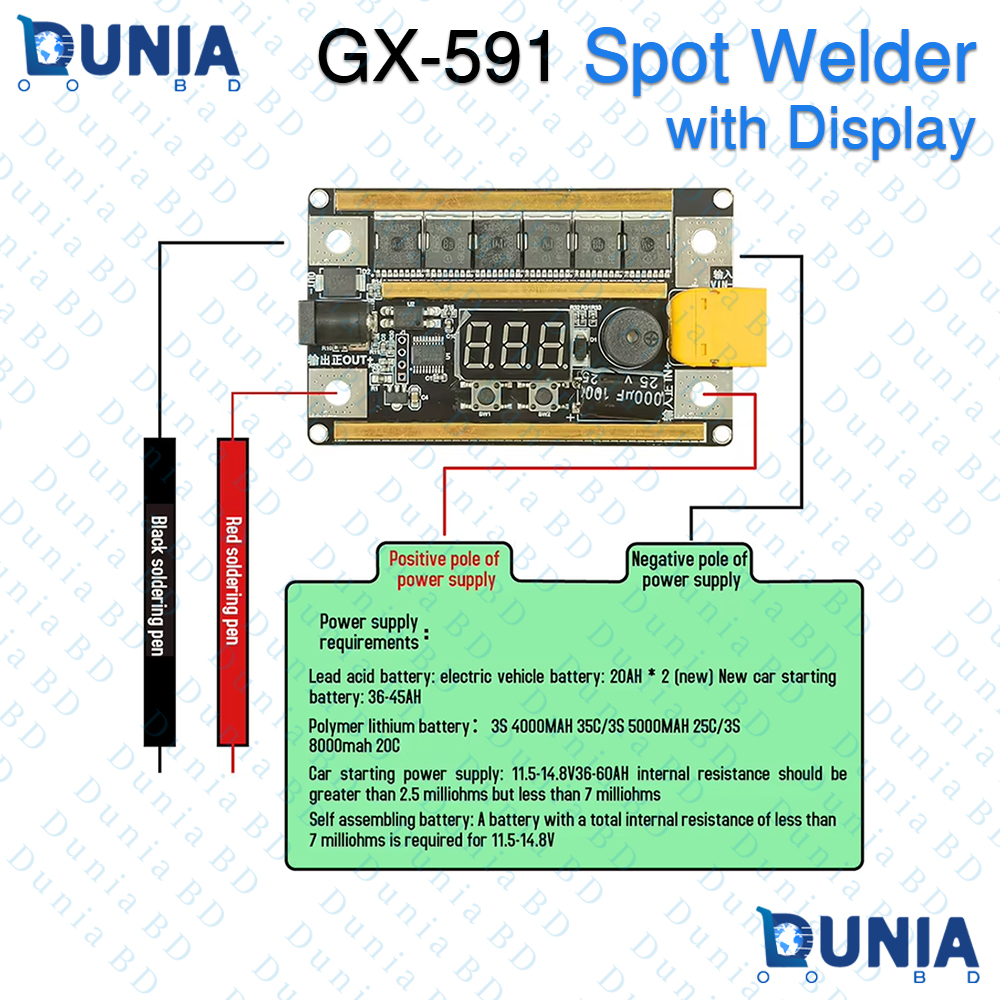

• Power Source Options: Lead-Acid Battery (20Ah*2/36-45Ah), Polymer Lithium 3S Pack, Car Jump Starter (36-60Ah)

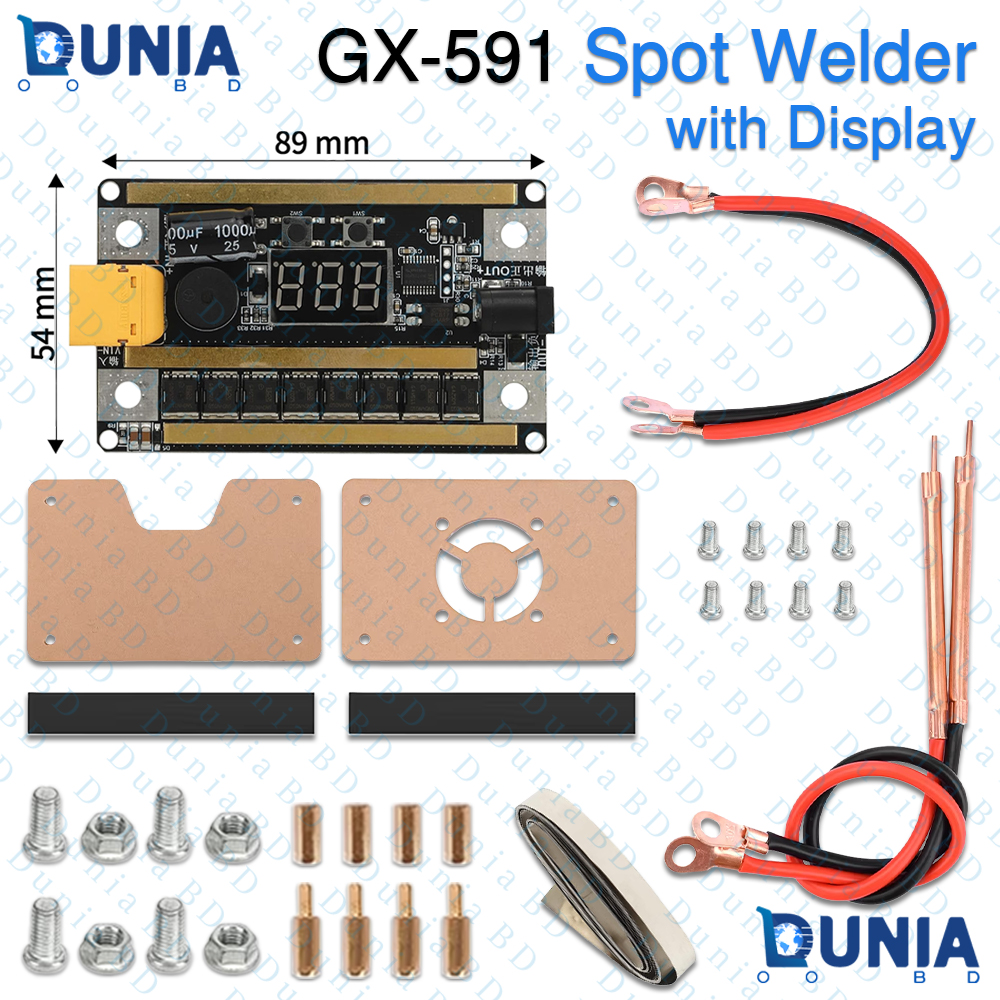

• Included Accessories: Red & Black Spot Welding Pens, Nickel Sheet Roll, Copper Plates, Screws, Nuts, and Standoff Hardware

Features

• Advanced 6 MOS-Tube Architecture: Engineered with an array of 6 high-power MOSFETs, this controller board handles extreme pulse current discharges required for high-precision spot welding of nickel strips without damaging internal battery cells.
• 3-Digit Digital LED Display: Equipped with a bright 3-digit LED segment display that provides clear, real-time feedback on current output levels, power gears, and system operating parameters for maximum accuracy.
• Multi-Gear Power Adjustment: Allows fine-grained power tuning via intuitive push buttons (“Gear Plus” and “Gear Minus”), enabling smooth transition across various power settings depending on the nickel sheet thickness.
• Flexible Input Voltage & Battery Support: Operates seamlessly on 11.5V to 14.8V DC input. Compatible with high-rate lead-acid batteries (20Ah*2 / 36–45Ah), 3S high-rate polymer lithium battery packs, and 12V automotive jump starters (36–60Ah).

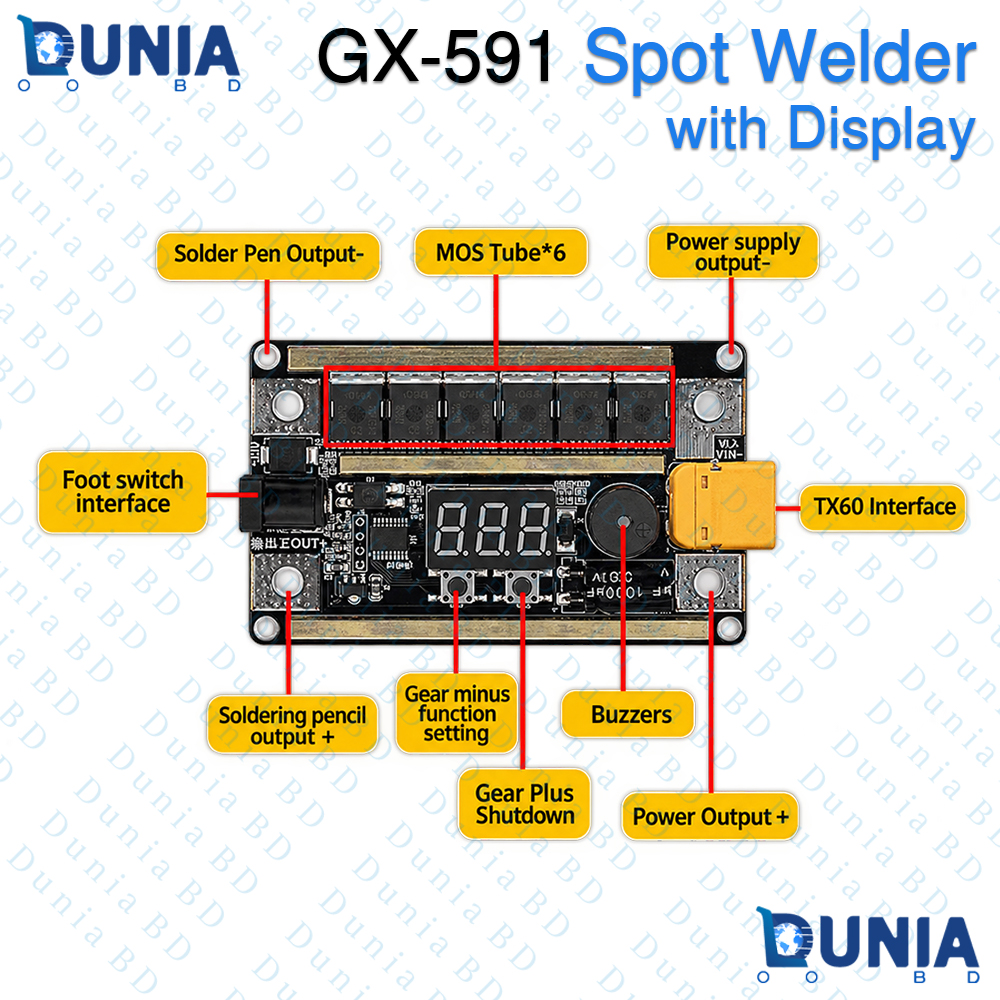

• Integrated Hardware Protection & Expansion: Features an integrated XT60 high-current connector for minimal voltage drop, a dedicated foot switch port for manual trigger control, and an onboard buzzer for acoustic status feedback during operation.
• Complete DIY Accessory Package: Comes as a comprehensive kit containing heavy-duty red and black spot welding pens, pure nickel sheet strip.

What is the price of GX-591 Portable Spot Welder Controller Board with Digital Display Module in Bangladesh?

The latest price of GX-591 Portable Spot Welder Controller Board with Digital Display Module in Bangladesh is Price: ৳2,225.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy GX-591 Portable Spot Welder Controller Board with Digital Display Module in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original GX-591 Portable Spot Welder Controller Board with Digital Display Module From Dunia.com.bd . We have a few collections of latest Uncategorized to purchase. Order Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the input operating voltage range for the GX-591 welder?
   It requires a power supply operating between 11.5V and 14.8V DC.
2. How many MOS tubes are mounted on the controller board?
   The circuit board utilizes 6 high-power MOS tubes for high current output.
3. Does it have a digital screen for power level settings?
   Yes, it features a 3-digit digital LED segment display screen.
4. What power sources can be used to drive this spot welder?
   It can use 12V lead-acid batteries, 3S LiPo packs, or car starters.
5. What are the physical dimensions of the GX-591 circuit board?
   The main controller circuit board measures 89mm in length by 54mm width.
6. Does it include spot welding pens and nickel sheet accessories?
   Yes, it comes with welding pens, copper tabs, nickel strip, and screws.
7. Is there an interface for connecting an external foot switch pedal?
   Yes, it includes a dedicated foot switch interface jack on board.
8. What power connector type is integrated into the control board?
   It features an integrated XT60 high-current power input connector interface.
9. Does the board provide audible feedback during operation or settings?
   Yes, an onboard buzzer provides acoustic feedback during gear changes.
