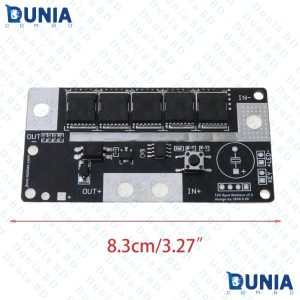

This spot DIY welding board Portable, stable and durable Can be welding 18650/26650/32650 battery, it is portable, stable and reliable.
According to different configurations, the thickness can be about 0.1MM-0.15mm. This spot welder circuit board can be used for welding lithium batteries
such as 18650/26650/32650. This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium
batteries and nickel-chromium batteries.
– System voltage: 11.5V-14.8V
– Working current: 100-200A
-36-45ah Lead-acid battery with good performance and small internal resistance(The internal resistance is less than 10 milliohms, and the discharge current is greater than 100A), such as a new car starting battery!)
-4000mah 35C-8000mah 30C 3S model airplane lithium battery
– 30-35ah capacity 18650 battery pack
Instructions for use:
Function buttons: 1, used to switch the machine, 2 used to switch gears!
When the power is turned on, the default is the first gear. Press the button for 2 seconds to release
The gear is increased by one gear, and the buzzer sounds and the LED flashes corresponding to the number of gears.
For example: the 3rd gear, the buzzer sounds three times, the LED flashes 3 times, a total of 5 gears. The spot welding intensity is gradually strengthened from the 1st gear to the 5th gear
5 is the strongest!
After the 5th gear, press and hold the button again. It will power off. In the off state, press and hold the button to power on, and the gear will return to the first gear
-This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1MM-0.15mm
The 18650 battery and DC power cannot be used as a power supply. It must have a high rate RC battery or a car battery!
– The colors deviation might differ due to different monitor settings, please kindly understand.

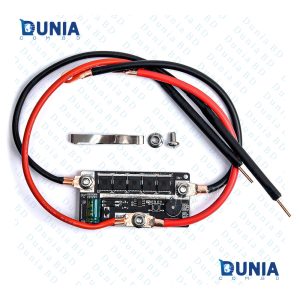

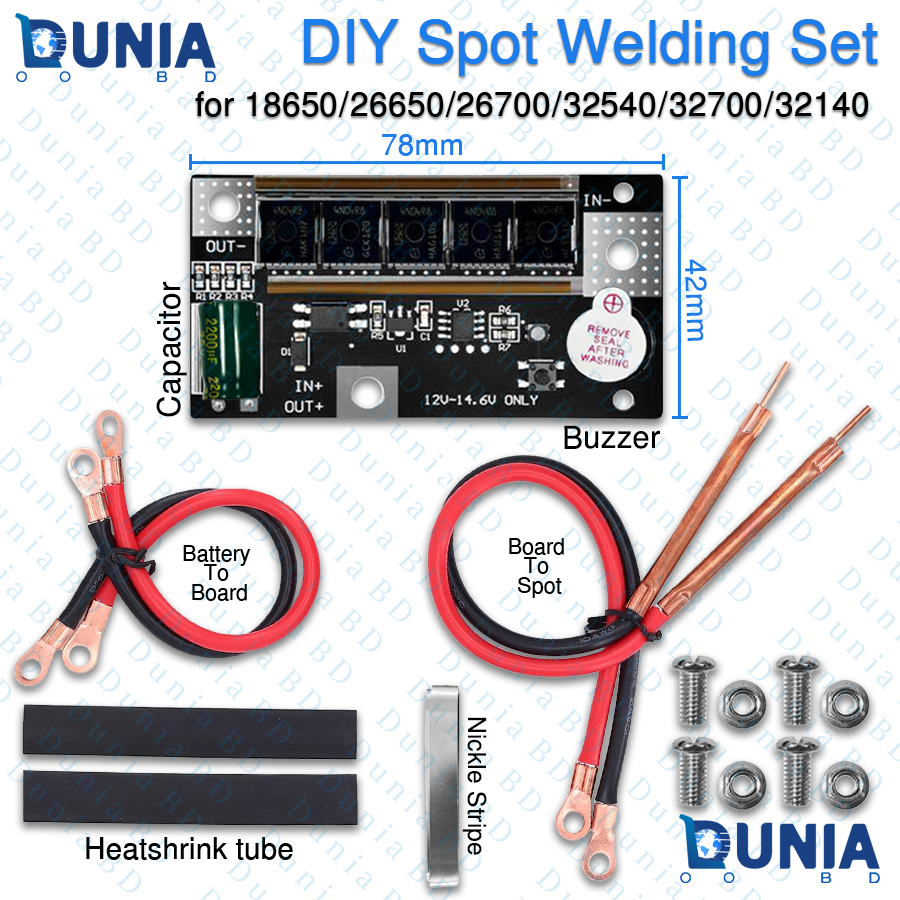

- 1 x Circuit board
- 4 x Bronze noses.
- 4 x Screws.
- 1 x Buzzer.
- 1 x 1 meter nickel sheets.
- 1 x Capacitor.
- 2 x Welding pens.
- 2 x Input wires.
- 2 x Heat shrinkable tubes
