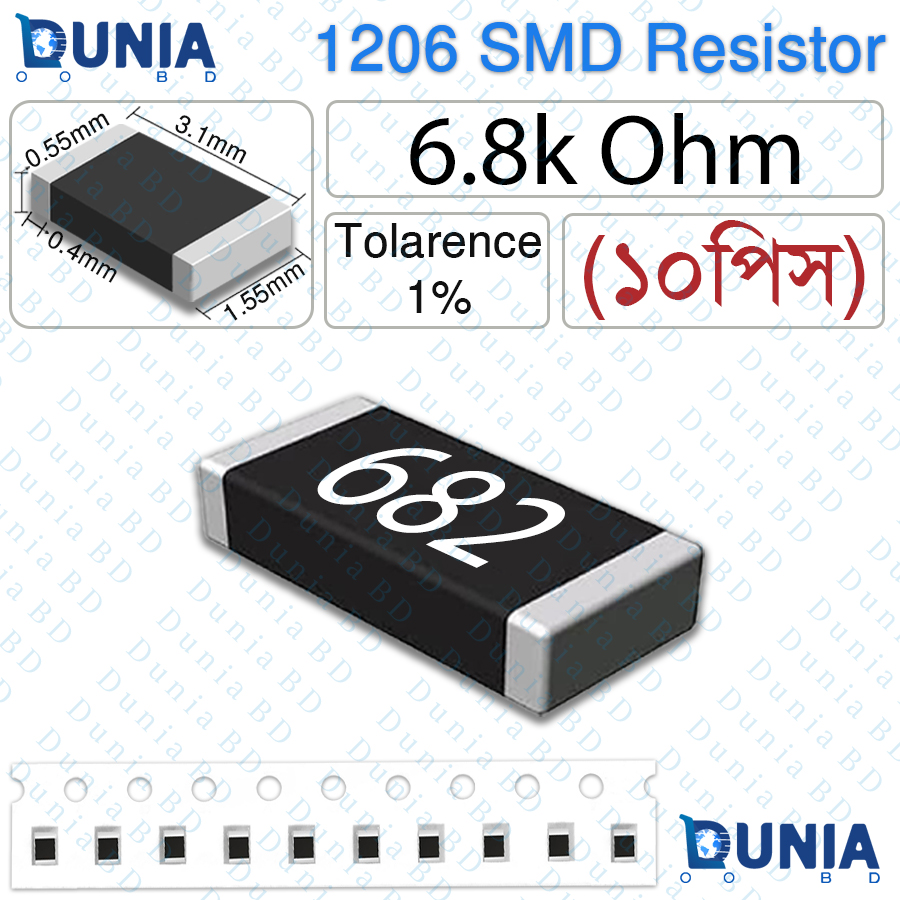

6.8K Ohm 682 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 6.8K Ohm 682 1206 SMD Resistor 1/4W
• Resistance: 6.8K Ohms (6800 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 6.8K Ohms (6800 Ohms, 682 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology – low noise, low drift and superior stability
• Compact SMD footprint for high-density circuit designs
• Wide operating temperature range: -55°C to +155°C
• RoHS compliant and lead-free
• Excellent solderability, reliable performance under varying conditions
• The 6.8K Ohm 682 1206 SMD Resistor is a classic precision value widely used in analog signal processing and mixed-signal designs. With 6,800 ohms resistance and tight ±1% tolerance, it excels in voltage divider circuits, op-amp gain and feedback networks, pull-up/pull-down configurations for digital interfaces, current-to-voltage conversion stages, sensor biasing, and many other applications requiring stable and accurate resistance values.Rated for 1/4W (0.25W) power dissipation, it provides reliable operation with very low self-heating in typical use cases. The 1206 package size offers an excellent balance between compactness, power handling capability, and ease of soldering – making it suitable for both high-volume automated assembly and manual prototyping/repair work. Commonly found in audio equipment, instrumentation, power supplies, industrial control systems, IoT modules, Arduino, Raspberry Pi, ESP32 projects, and professional PCB production.
• Manufactured using thick film technology, this resistor features minimal temperature coefficient drift, extremely low excess noise, and strong long-term reliability even in demanding environments. The “682” marking follows the standard 3-digit SMD code: 68 × 10² = 6,800 Ohms. Fully RoHS compliant and optimized for modern lead-free reflow soldering processes.
• Whether you’re designing precision analog circuits, building prototypes, repairing equipment, or stocking your parts library, this 6.8KΩ 1% 1206 SMD resistor delivers consistent performance, high accuracy, and great value. Available in bulk reels for manufacturing or small quantities for hobbyists and developers.

What is the price of 6.8K Ohm 682 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 6.8K Ohm 682 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 6.8K Ohm 682 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 6.8K Ohm 682 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

 FAQ

1. What does 682 mean on this 1206 SMD resistor?
   682 = 68 × 10² = 6,800 Ohms = 6.8KΩ
2. What is the power rating?
   1/4W (0.25 watts)
3. Is the tolerance ±1%?
   Yes, high-precision ±1% tolerance (significantly tighter than 5%)
4. What are the dimensions of the 1206 package?
   Approximately 3.2 mm × 1.6 mm × 0.55 mm
5. Can it operate in high-temperature conditions?
   Yes – standard range -55°C to +155°C
6. Is 6.8K a common value in op-amp feedback?
   Yes – frequently used in gain-setting resistors and feedback loops in operational amplifiers
7. What technology is used?
   Thick film – excellent balance of precision, cost-effectiveness and reliability
8. How to solder 1206 SMD resistors?
   Reflow oven or hot-air station preferred; fine-tip soldering iron suitable for manual work
9. Why choose 1206 over smaller sizes?
   Higher power rating (0.25W) and much easier to hand-solder and visually inspect
10. Where can I buy bulk quantities?
    DigiKey, Mouser, LCSC, Element14, Tayda, or local electronics distributors
