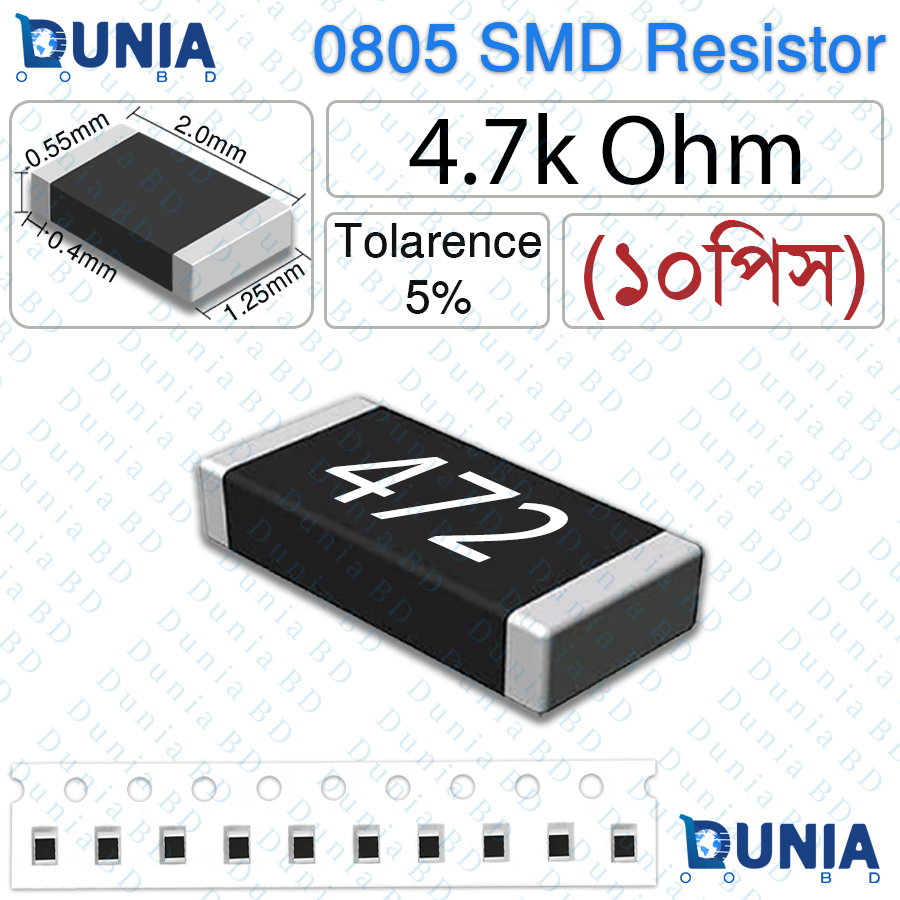

4.7K Ohm 472 0805 SMD Resistor 1/8W ±5% Tolerance Standard Kilo Ohm Chip Resistor for Dividers and PullUp Networks

Specifications

• 4.7K Ohm 472 0805 SMD Resistor 1/8W
• Resistance Value: 4.7K Ohm (472)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• 0805 package for reliable and space-efficient mounting
• ±5% tolerance for accurate kilo-ohm applications
• 1/8W power rating suitable for standard low-power tasks
• Thick film for high stability and low noise
• Wide temperature range for broad compatibility
• RoHS compliant and lead-free
• Excellent solder joint strength in assembly
• The 4.7K Ohm (472) 0805 SMD Resistor is one of the most commonly used kilo-ohm values, offering balanced performance for voltage division and signal control in low-power electronics. With ±5% tolerance and 1/8W power rating, it is widely applied in voltage divider circuits for analog sensor calibration, ADC input protection, reference voltage generation, and signal conditioning, pull-up/pull-down resistors in microcontroller GPIO pins, digital logic interfaces, and open-drain setups, current limiting in low-power LED indicators or series configurations, and general-purpose biasing in op-amp, transistor, or sensor circuits.
• Thick film technology ensures low temperature coefficient, minimal drift over time, low noise, and robust resistance to humidity, thermal cycling, and aging, providing reliable operation in sensor modules, microcontroller projects, audio equipment, battery management systems, industrial controls, and consumer devices.
• The 0805 footprint combines compactness with good thermal dissipation and soldering reliability, ideal for dense PCB designs in automated production and hand prototyping.
• Fully RoHS compliant and manufactured to high standards, this resistor delivers consistent, cost-effective kilo-ohm performance trusted by engineers and hobbyists for precise and repeatable results in analog and digital applications.

What is the price of 4.7K Ohm 472 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 4.7K Ohm 472 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 4.7K Ohm 472 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 4.7K Ohm 472 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 4.7K Ohms (4700 Ohms), marked as 472.
2. What package is it?
   Standard 0805 SMD (2012 Metric).
3. Power rating?
   1/8W (0.125W).
4. Tolerance?
   ±5%.
5. Maximum voltage?
   150V.
6. Temperature range?
   -55°C to +155°C.
7. Soldering method?
   Reflow/hand supported.
8. RoHS?
   Yes, compliant.
9. Marking?
   “472”.
10. Common applications?
    Analog/sensor voltage dividers, MCU/digital pull-up/pull-down, low-power LED limiting, general biasing networks.
