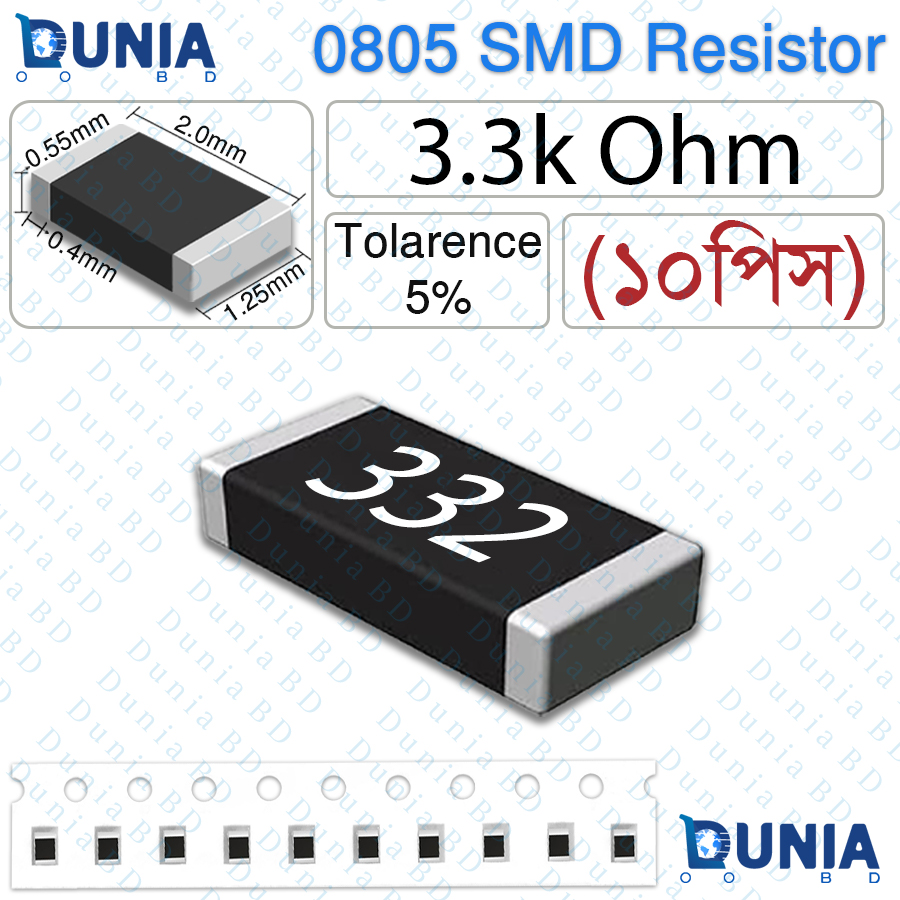

3.3K Ohm 332 0805 SMD Resistor 1/8W ±5% Tolerance Kilo-Ohm Precision Chip Resistor for Analog Dividers and Pull-Up

Specifications

• 3.3K Ohm 332 0805 SMD Resistor 1/8W
• Resistance Value: 3.3K Ohm (332)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• 0805 package for balanced density and soldering reliability
• ±5% tolerance for accurate kilo-ohm range performance
• 1/8W power rating suitable for low to moderate current tasks
• Thick film technology for excellent stability and low noise
• Wide temperature range for versatile use
• RoHS compliant and lead-free
• Reliable in both automated and manual assembly
• The 3.3K Ohm (332) 0805 SMD Resistor is a popular kilo-ohm value component that delivers precise voltage division and signal management in a wide range of low-power electronic designs. With ±5% tolerance and 1/8W power rating, it is ideal for voltage dividers in analog sensor interfaces, ADC input scaling, and reference voltage generation, pull-up/pull-down resistors in microcontroller GPIO pins, digital logic circuits, and open-drain configurations, current limiting in low-power LED indicators or series chains, and general-purpose biasing in op-amp, transistor, or sensor circuits.
• Thick film technology ensures low TCR, minimal long-term drift, low noise, and strong resistance to humidity, temperature extremes, and aging, providing consistent performance in sensor boards, microcontroller projects, audio processing, battery monitoring, industrial sensors, and consumer electronics.
• The 0805 footprint combines compactness with good thermal handling and soldering ease, supporting high-density PCBs in automated production as well as quick hand-built prototypes.
• Fully RoHS compliant and produced under strict quality standards, this resistor offers dependable, cost-effective kilo-ohm performance trusted by engineers and makers for accurate and repeatable circuit results.

What is the price of 3.3K Ohm 332 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 3.3K Ohm 332 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 3.3K Ohm 332 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 3.3K Ohm 332 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 3.3K Ohms (3300 Ohms), marked as 332.
2. What package is used?
   Standard 0805 SMD (2012 Metric).
3. How much power can it handle?
   Up to 1/8W (0.125W).
4. What is the tolerance?
   ±5%.
5. What is the maximum working voltage?
   150V.
6. What temperature range does it support?
   -55°C to +155°C.
7. Is it suitable for reflow soldering?
   Yes, fully compatible with SMT processes.
8. Is it RoHS compliant?
   Yes, lead-free and RoHS certified.
9. How is the value marked?
   Typically “332”.
10. Common applications?
    Analog/sensor voltage dividers, MCU/digital pull-up/pull-down, low-power LED limiting, general biasing networks.
