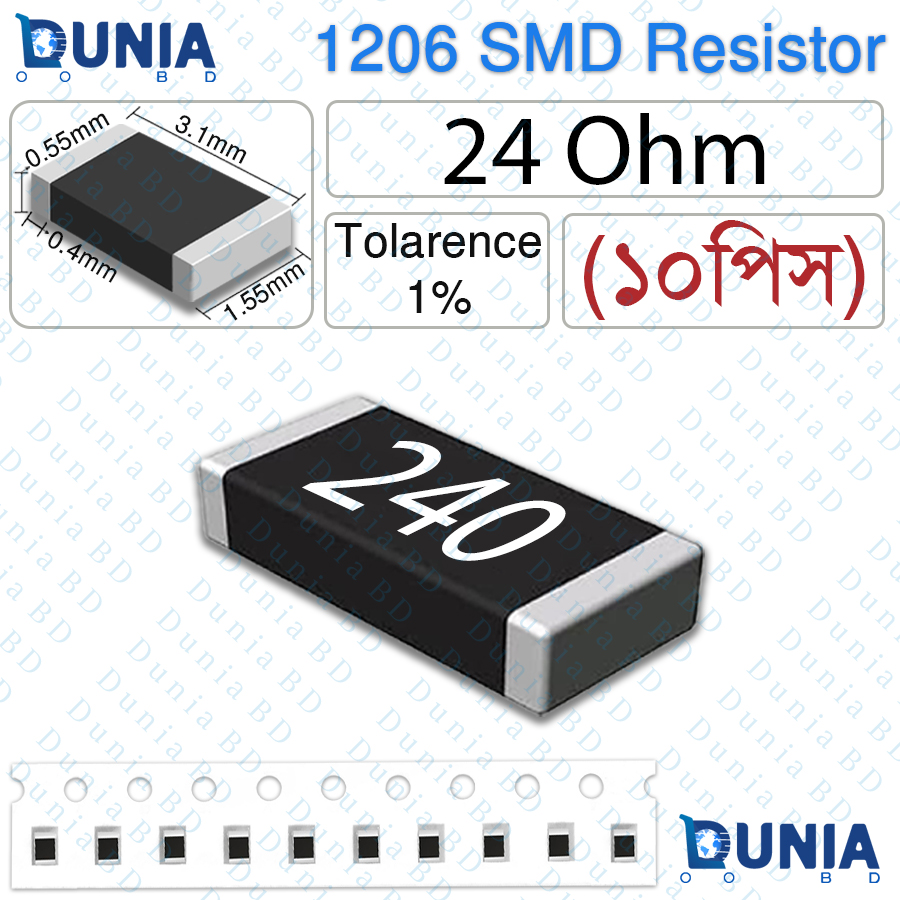

24 Ohm 240 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 24 Ohm 240 1206 SMD Resistor 1/4W
• Resistance Value: 24 Ohm (240 marking)
• Tolerance: ±1%
• Power Rating: 1/4W (0.25W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Temperature Coefficient: ±100 ppm/°C (typical)
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 200V (typical)
• Dimensions: 3.2mm × 1.6mm × 0.55mm (approximate)
• Mounting Type: Surface Mount (SMD/SMT)
• Termination: Wraparound / Solderable

Features

• ±1% tolerance for excellent accuracy and consistency
• Compact 1206 package (3.2mm × 1.6mm) ideal for space-limited designs
• 0.25W (1/4W) power rating suitable for most standard applications
•  Thick film resistive layer ensures durability and thermal stability
• Wide temperature operating range: typically -55°C to +155°C
• RoHS compliant and lead-free construction
• Superior solderability for reflow, wave, and manual soldering
• Low TCR (temperature coefficient) reduces resistance drift
• The 24 Ohm (marked 240) 1206 SMD Resistor with ±1% tolerance and 1/4W power rating is a high-precision surface-mount resistor crafted for demanding electronic applications. Utilizing thick film technology deposited on a robust ceramic substrate, it delivers stable resistance values, low thermal noise, and reliable performance over a wide range of temperatures and environmental conditions.
• The popular 1206 footprint is extensively used in automated PCB assembly, consumer electronics, power supply modules, LED current regulation, audio processing circuits, sensor networks, IoT devices, automotive electronics, and professional repair services. Its tight 1% tolerance is particularly advantageous in applications that require accurate current control, precise voltage division, stable pull-up/pull-down configurations, or consistent biasing.
• Rated for up to 200V working voltage and 0.25W power dissipation, this resistor maintains dependable operation in both typical and challenging environments. Fully RoHS compliant and compatible with all standard SMT soldering techniques including reflow and wave processes.
• Whether you’re manufacturing in volume, maintaining service inventory, building prototypes, or working on educational projects, this 24Ω 1206 1% resistor provides professional accuracy, long-term reliability, and excellent value. Available in full reels, cut tape, or small quantities to suit your needs.

What is the price of 24 Ohm 240 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 24 Ohm 240 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 24 Ohm 240 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 24 Ohm 240 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does the “240” marking mean on this 1206 resistor?
   “240” is the standard 3-digit SMD code for 24 Ohms (24 × 10⁰ = 24Ω).
2. Is it safe to run this resistor above 0.25W?
   No — the maximum continuous power is 1/4W (0.25W); higher power can lead to overheating or failure.
3. Why pick 1% tolerance instead of 5%?
   1% tolerance limits variation to ±0.24Ω, making it essential for precision circuits like analog controls or current sensing.
4. Can I hand-solder 1206 resistors?
   Yes, 1206 is one of the easiest SMD sizes for hand soldering with a fine-tip soldering iron and good flux.
5. What are the physical dimensions of a 1206 package?
   Approximately 3.2 mm length × 1.6 mm width × 0.55 mm height.
6. Is this resistor RoHS compliant and lead-free?
   Yes, standard modern 1206 resistors are RoHS compliant and lead-free.
7. What temperature range does it support?
   Typically operates reliably from -55°C to +155°C.
8. Suitable for automotive or industrial applications?
   Yes, as long as voltage, power dissipation, and temperature stay within the specified ratings.
9. How is 24Ω typically marked on SMD resistors?
   Most manufacturers use the 3-digit code “240” for 24 Ohms.
10. Are these resistors supplied in reels for pick-and-place?
    Yes, commonly available in reels of 5,000 pieces for automated assembly.
