SW-520D Tilt Ball Switch Sensor Module LM393 Adjustable Sensitivity

Specifications

• SW-520D Tilt Ball Switch Sensor Module
• Sensor Model: SW-520D
• Sensor Type: Ball-Type Tilt Switch
• Detection Type: Tilt, Inclination and Vibration Detection
• Comparator IC: LM393
• Operating Voltage: 3.3V–5V DC
• Output Type: Digital Switching Output
• Output Signal: HIGH / LOW
• Interface: 3-Pin
• Pin Configuration: VCC, GND, DO
• Sensitivity Adjustment: Adjustable via Onboard Potentiometer
• Indicator LEDs: Power LED and Digital Output LED

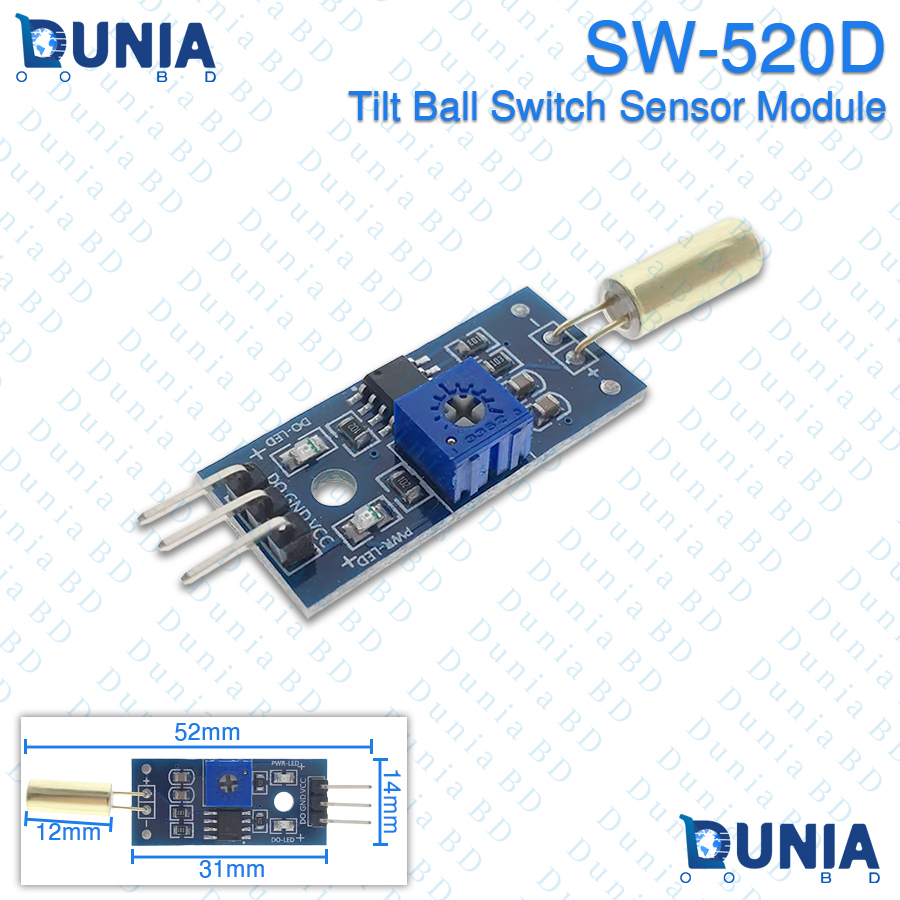

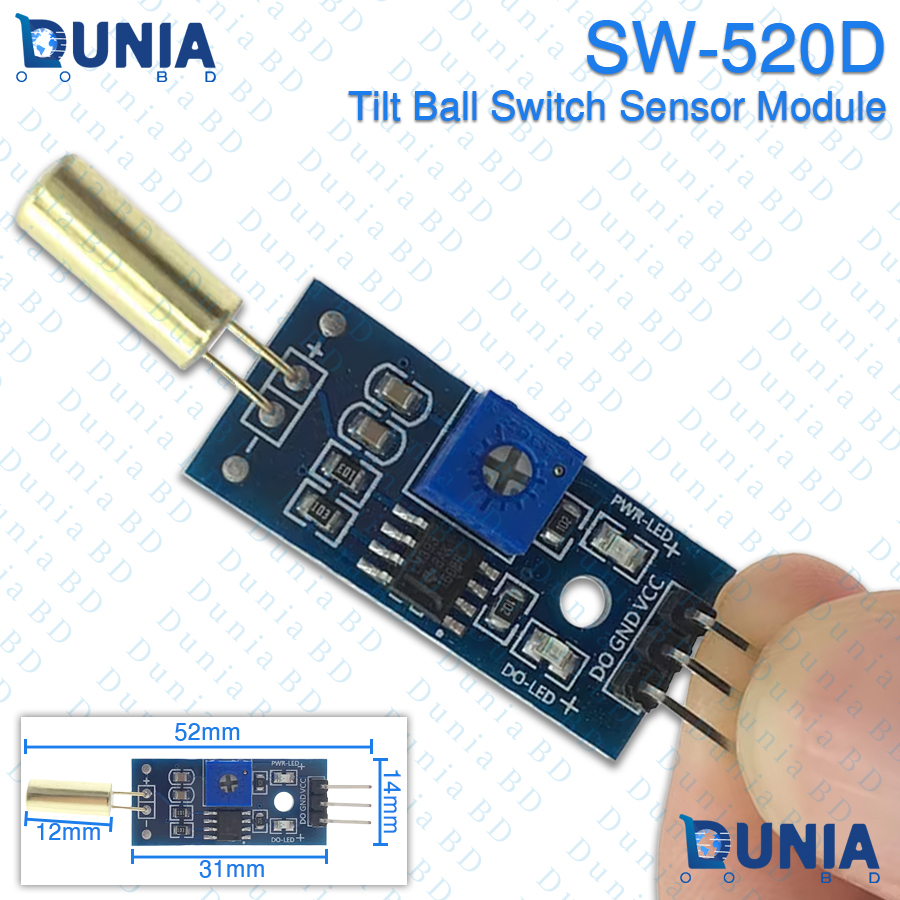

• PCB Size: Approximately 31mm × 14mm
• Overall Length with Sensor: Approximately 52mm
• Sensor Length: Approximately 12mm
• Mounting Hole: Available
• Controller Compatibility: Arduino, ESP32, Raspberry Pi, STM32 and Other Microcontrollers
• Application: Tilt Detection, Vibration Detection, Motion Sensing, Robotics, Automation and Security Systems

Features

• SW-520D ball-type tilt sensor module for detecting changes in orientation, inclination and movement.
• Built-in LM393 comparator provides a convenient digital switching output.
• Adjustable sensitivity allows the detection response to be tuned using the onboard potentiometer.
• Supports a wide 3.3V–5V DC operating voltage range for compatibility with common microcontroller platforms.
• Simple 3-pin interface with VCC, GND and DO connections.
• Built-in power and output indicator LEDs provide convenient visual status feedback.
• Compact PCB design with an approximately 31mm × 14mm board size.
• Includes a mounting hole for convenient installation in electronic projects.
• Suitable for Arduino, ESP32, Raspberry Pi, STM32 and other digital-input controllers.
• Useful for tilt alarms, vibration detection, robotics, automation, security and DIY electronics projects.
• The SW-520D Tilt Ball Switch Sensor Module is a compact digital sensor module designed to detect tilt, inclination, vibration and changes in the physical orientation of an object. It uses an SW-520D ball-type tilt switch together with an onboard LM393 comparator to provide a convenient digital output for microcontroller-based projects.
• The SW-520D Tilt Ball Switch Sensor Module operates from 3.3V to 5V DC, making it suitable for many popular development platforms including Arduino, ESP32, Raspberry Pi and STM32. Its simple 3-pin interface consists of VCC, GND and DO, allowing the digital output to be connected directly to a compatible GPIO input.
• An onboard potentiometer allows the sensitivity of the module to be adjusted according to the required application. The module also includes power and output indicator LEDs, making it easier to monitor the operating and triggering status during testing and development.
• The compact PCB measures approximately 31mm × 14mm, while the complete sensor assembly is approximately 52mm long according to the supplied product dimensions. A mounting hole is also provided for convenient installation.
• The SW-520D Tilt Ball Switch Sensor Module is suitable for tilt detection, vibration-triggered projects, orientation detection, security alarms, robotics, automation systems, smart devices, DIY electronics and other applications where a simple digital response to physical movement is required.

What is the price of SW-520D Tilt Ball Switch Sensor Module LM393 Adjustable Sensitivity 3.3V-5V in Bangladesh?

The latest price of SW-520D Tilt Ball Switch Sensor Module LM393 Adjustable Sensitivity 3.3V-5V in Bangladesh is Price: ৳125.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy SW-520D Tilt Ball Switch Sensor Module LM393 Adjustable Sensitivity 3.3V-5V in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original SW-520D Tilt Ball Switch Sensor Module LM393 Adjustable Sensitivity 3.3V-5V From Dunia.com.bd . We have a few collections of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQs

1. What is the SW-520D Tilt Ball Switch Sensor Module used for ?
   It detects tilt, inclination, vibration and physical orientation changes using a ball-type mechanical sensing element.
2. What voltage does the SW-520D sensor module require ?
   The module operates from 3.3V to 5V DC for compatibility with common microcontrollers.
3. Which comparator IC is used on this sensor module ?
   The module uses an LM393 comparator to process the sensor signal into a digital output.
4. How many pins does the SW-520D module have ?
   The module has three pins: VCC for power, GND for ground and DO for digital output.
5. Can the sensitivity of this tilt sensor be adjusted ?
   Yes, the onboard potentiometer allows adjustment of the module’s sensitivity according to application requirements.
6. Does the SW-520D module provide a digital output ?
   Yes, the DO pin provides a digital HIGH or LOW switching signal for microcontroller inputs.
7. Can this sensor work with ESP32 and Arduino boards ?
   Yes, its 3.3V–5V operation and digital output make it suitable for ESP32 and Arduino projects.
8. Does the module include status indicator LEDs ?
   Yes, the module includes power and output indicator LEDs for convenient visual monitoring.
9. What is the PCB size of this SW-520D module ?
   The PCB is approximately 31mm × 14mm, based on the supplied product dimensions.
10. Can the SW-520D detect vibration and movement ?
    Yes, movement and vibration can change the ball switch state and trigger the digital output.
