Specifications

• mx 2.0 male female cable
• Connector Type: MX 2.0 (2.0mm pitch)
• Pin Count: 2 pins
• Gender: 1 x Male, 1 x Female
• Wire Length: 140-150mm
• Wire Gauge: 22-24 AWG
• Wire Type: Stranded copper, silicone insulation
• Voltage Rating: 0-30V DC
• Current Rating: Up to 3A
• Contact Material: Phosphor bronze, tin-plated
• Housing: White nylon (PA66)
• Locking: Friction lock with latch
• Operating Temperature: -25°C to +85°C
• Compatibility: JST PH 2.0 series

Features

• Pre-crimped MX 2.0mm pitch 2-pin male + female connectors
• Wire length: 14-15cm (including connectors)
• Color-coded: Red (positive), Black (negative)
• 22-24 AWG flexible silicone/stranded wire
• JST-PH compatible locking mechanism
• Secure push-lock connection – no soldering needed
• Ideal for quick prototyping and extensions
• Sold as 1 pair (1 male + 1 female cable)

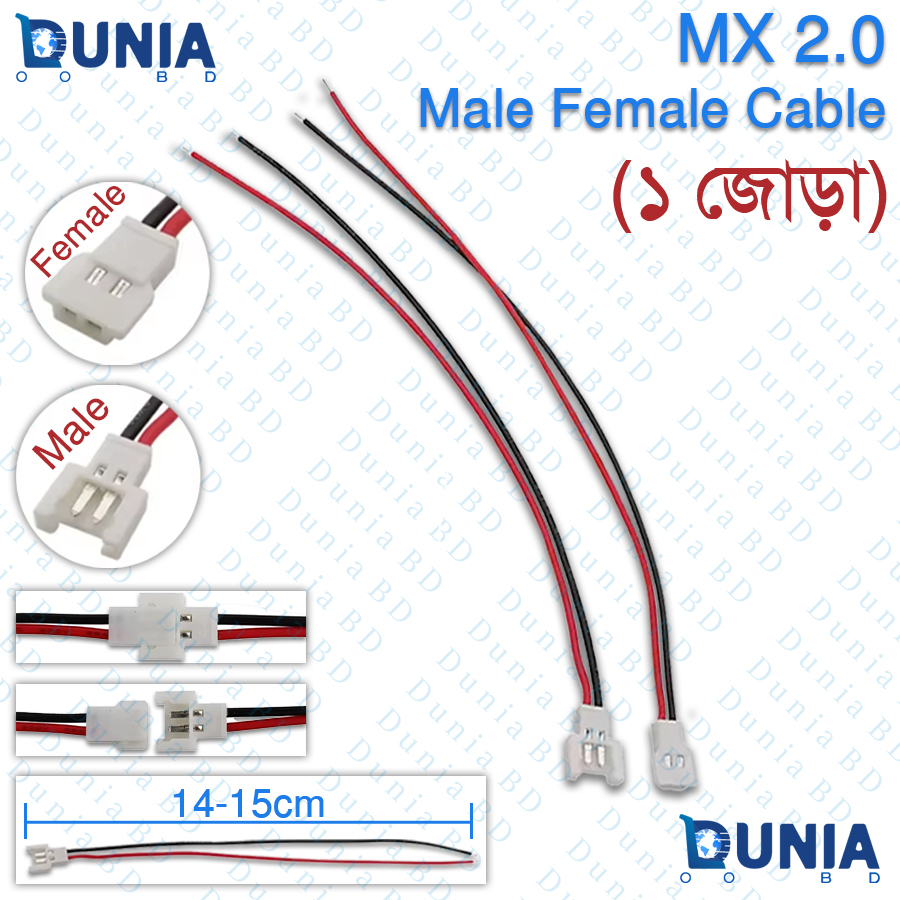

• The MX 2.0 Male Female Cable is a ready-to-use 2-pin connector pair designed for fast, reliable connections in electronics projects. Featuring genuine MX 2.0mm pitch housings (fully compatible with JST PH series), each cable comes pre-crimped with color-coded red and black wires for foolproof polarity.
• Perfect for connecting LED strips, small DC motors, LiPo batteries, RC receivers, sensors, and Arduino modules. The secure latch prevents accidental disconnection, while the flexible silicone-insulated wire allows easy routing in tight spaces.
• No soldering iron? No problem! Just plug the male into the female and power on. Widely used in drone building, robotics, IoT prototypes, and hobby electronics.
• Each pack contains one male-ended cable and one female-ended cable – everything you need for a complete link. Durable, compact, and affordable – the go-to choice for DIY makers.

What is the price of MX 2.0 Male Female Cable 2-Pin Connector Pair 14-15cm in Bangladesh?

The latest price of MX 2.0 Male Female Cable in Bangladesh is Price: ৳35.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy MX 2.0 Male Female Cable 2-Pin Connector Pair 14-15cm in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original MX 2.0 Male Female Cable From Dunia.com.bd . We have few collection of latest Connector to purchase. Order Connector & Terminals Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Is this JST PH compatible?
   Yes, MX 2.0 is pin-to-pin compatible with JST PH 2.0mm.
2. What is the wire length?
   14 to 15cm measured from connector tip to tip.
3. Can I extend LED strips with this?
   Absolutely – standard for RGB and single-color LED connections.
4. Is soldering required?
   No, connectors are pre-crimped and ready to plug.
5. What current can it handle?
   Up to 3A continuous with 22-24 AWG wire.
6. Are the connectors polarized?
   Yes, keyed housing prevents reverse insertion.
7. Can I cut and re-use the wire?
   Yes, but you’ll need to crimp new terminals if reusing connectors.
8. Suitable for 5V or 12V?
   Yes, rated up to 30V DC.
9. How many cables in one order?
   1 pair = 1 male cable + 1 female cable.
10. Can I use it with LiPo batteries?
    Yes, common in 1S-2S RC and drone battery extensions.
