LiFePO4 4S 32700 6000mAh Battery Pack 12.8V Rechargeable BMS Battery with Balancer

Specifications

• LiFePO4 4S 32700 6000mAh Battery Pack: 12.8V Nominal
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Battery Cell Type: 32700 LiFePO4 Cylindrical Cell
• Cell Nominal Voltage: 3.2V
• Battery Configuration: 4S
• Number of Series Cells: 4
• Nominal Pack Voltage: 12.8V
• Maximum Charging Voltage: 14.6V
• Rated Capacity: 6000mAh
• Rated Capacity in Ah: 6Ah
• Battery Pack Energy: Approximately 76.8Wh
• Cell Size: 32700
• Cell Diameter: Approximately 32mm
• Cell Height: Approximately 70mm
• BMS: Integrated Battery Management System
• Battery Pack Length: Approximately 140mm
• Battery Pack Height: Approximately 71mm
• Battery Pack Width: Approximately 32–33mm
• Wire Length: Approximately 75–100mm
• Power Wires: Red and Black
• Connector: As Shown in Product Images
• Charging Connector: As Shown in Product Images
• Battery Type: Rechargeable LiFePO4 Battery Pack
• Recommended Charger Voltage: 14.6V LiFePO4 Charger
• Application Voltage Class: 12.8V LiFePO4 Battery System

Features

• LiFePO4 4S 6000mAh battery pack with a 12.8V nominal voltage.
• Built using 32700-size Lithium Iron Phosphate rechargeable cells.
• 4S series configuration uses four 3.2V nominal LiFePO4 cells.
• 6000mAh capacity provides approximately 6Ah of rechargeable energy storage.
• Approximately 76.8Wh nominal energy based on 12.8V × 6Ah.
• Integrated BMS provides battery management and protection functions.
• 14.6V is the appropriate maximum charging voltage for a 4S LiFePO4 configuration.
• Compact approximately 140mm × 71mm × 32–33mm pack dimensions.
• Approximately 75–100mm wire length provides convenient connection flexibility.
• Pre-assembled battery pack reduces the need for individual cell assembly.

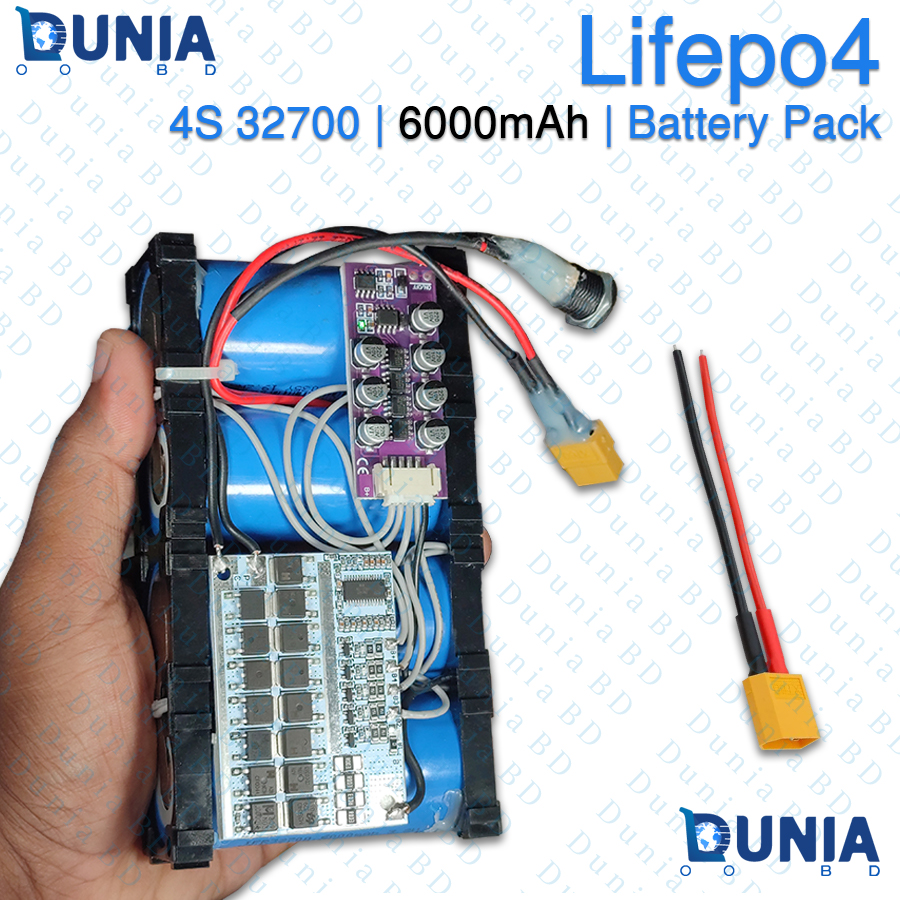

• The LiFePO4 4S 32700 6000mAh Battery Pack is a pre-assembled rechargeable battery pack designed around four 32700 Lithium Iron Phosphate cells connected in a 4S series configuration. Each LiFePO4 cell has a nominal voltage of approximately 3.2V, resulting in a 12.8V nominal battery pack.
• The pack has a rated capacity of 6000mAh or 6Ah. Based on the nominal 12.8V voltage and 6Ah capacity, the battery pack provides approximately 76.8Wh of nominal energy. Actual usable energy can vary depending on the load, discharge conditions, BMS settings, cell condition, and operating temperature.
• The 32700 LiFePO4 cells used in this type of battery pack are cylindrical cells approximately 32mm in diameter and around 70mm in height. The 32700 format is commonly used for rechargeable battery packs where a larger cylindrical cell format and LiFePO4 chemistry are required.
• Because this is a 4S LiFePO4 battery pack, the correct nominal voltage is 12.8V, not 12.6V. The 12.6V figure is commonly associated with a 3S conventional Li-ion battery pack, where each cell has a nominal voltage of approximately 3.7V. For this 4S LiFePO4 pack, the charging voltage is approximately 14.6V, corresponding to around 3.65V per cell.
• An integrated Battery Management System (BMS) is included in the battery pack. The BMS is designed to manage the series-connected cells and provide appropriate protection functions. However, the exact BMS current rating should be determined from the actual BMS specification rather than assumed from the physical appearance of the board.

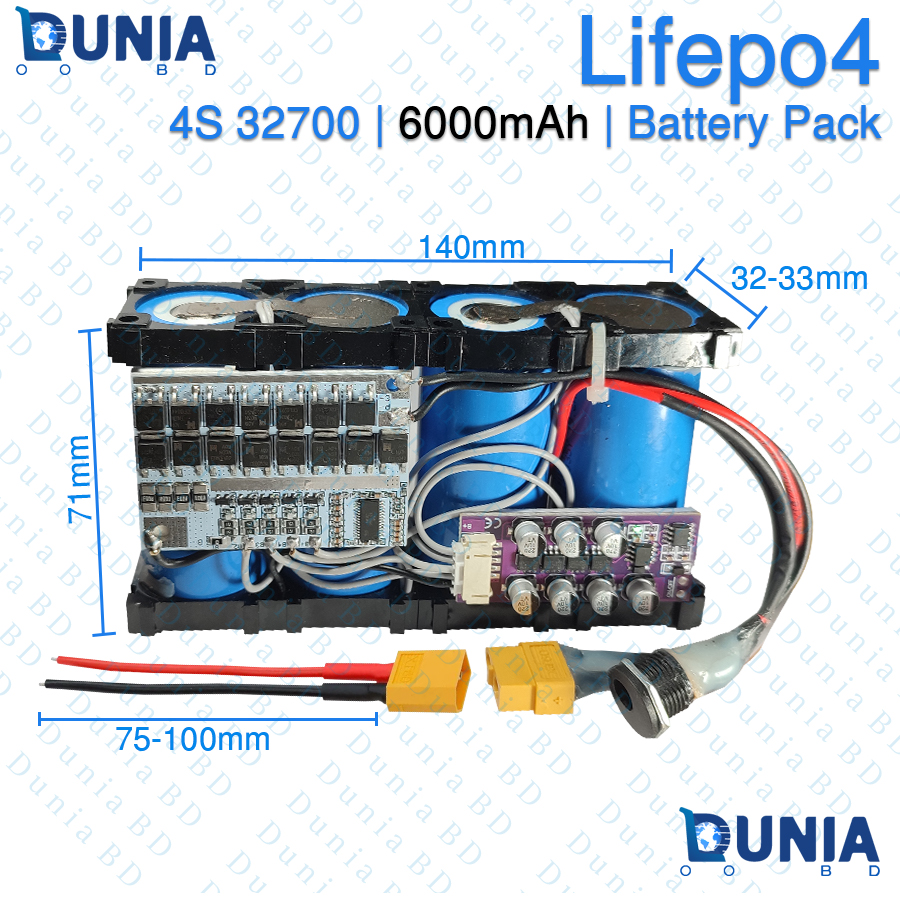

• The battery pack measures approximately 140mm in length, 71mm in height, and 32–33mm in width, according to the product measurements shown in the images. The connection wires are approximately 75–100mm long.
• The LiFePO4 4S 32700 6000mAh Battery Pack can be suitable for compatible 12.8V rechargeable equipment, DIY electronics projects, portable power applications, robotics, lighting systems, backup power projects, and other devices specifically designed for a 4S LiFePO4 battery system.
• For charging, use a proper 14.6V LiFePO4 battery charger designed for 4S LiFePO4 packs. Do not use a 12.6V 3S Li-ion charger for this battery pack, because Li-ion and LiFePO4 cells have different nominal and charging voltage characteristics.
• Before installation, verify the battery polarity, connector type, required operating voltage, charging voltage, load current, physical dimensions, and BMS compatibility with your equipment.

What is the price of LiFePO4 4S 32700 6000mAh Battery Pack 12.8V Rechargeable BMS Battery in Bangladesh?

The latest price of LiFePO4 4S 32700 6000mAh Battery Pack 12.8V Rechargeable BMS Battery in Bangladesh is Price: ৳2,280.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy LiFePO4 4S 32700 6000mAh Battery Pack 12.8V Rechargeable BMS Battery in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original LiFePO4 4S 32700 6000mAh Battery Pack 12.8V Rechargeable BMS Battery From Dunia.com.bd . We have a few collections of latest Lithium Battery to purchase. Order Battery, Storage Battery & Charger Online at our website Or Visit our warehouse to get your product at lowest price.

FAQs

1. What is the nominal voltage of this LiFePO4 battery pack?
   The nominal voltage is 12.8V because four 3.2V LiFePO4 cells are connected in series.
2. What is the full charging voltage of this 4S LiFePO4 pack?
   The maximum charging voltage is approximately 14.6V for a properly configured 4S LiFePO4 battery.
3. Is this battery pack 12.6V or 12.8V?
   This is a 12.8V nominal LiFePO4 battery pack, not a 12.6V battery pack.
4. How many 32700 cells are used in this battery?
   The 4S configuration uses four 32700 LiFePO4 cells connected in series.
5. What is the capacity of this battery pack?
   This LiFePO4 battery pack has a rated capacity of 6000mAh, equivalent to 6Ah.
6. What type of cells are used in this battery pack?
   The battery pack uses 32700 cylindrical Lithium Iron Phosphate rechargeable cells.
7. Does this battery pack include a BMS?
   Yes, an integrated Battery Management System is included with the assembled battery pack.
8. Which charger should be used for this battery?
   Use a suitable 14.6V charger specifically designed for 4S LiFePO4 battery packs.
9. What are the approximate battery pack dimensions?
   The approximate dimensions are 140mm × 71mm × 32–33mm based on the product measurements.
10. Can a 12.6V Li-ion charger charge this battery pack?
    No, a 12.6V 3S Li-ion charger is not the correct charger for this 4S LiFePO4 pack.
