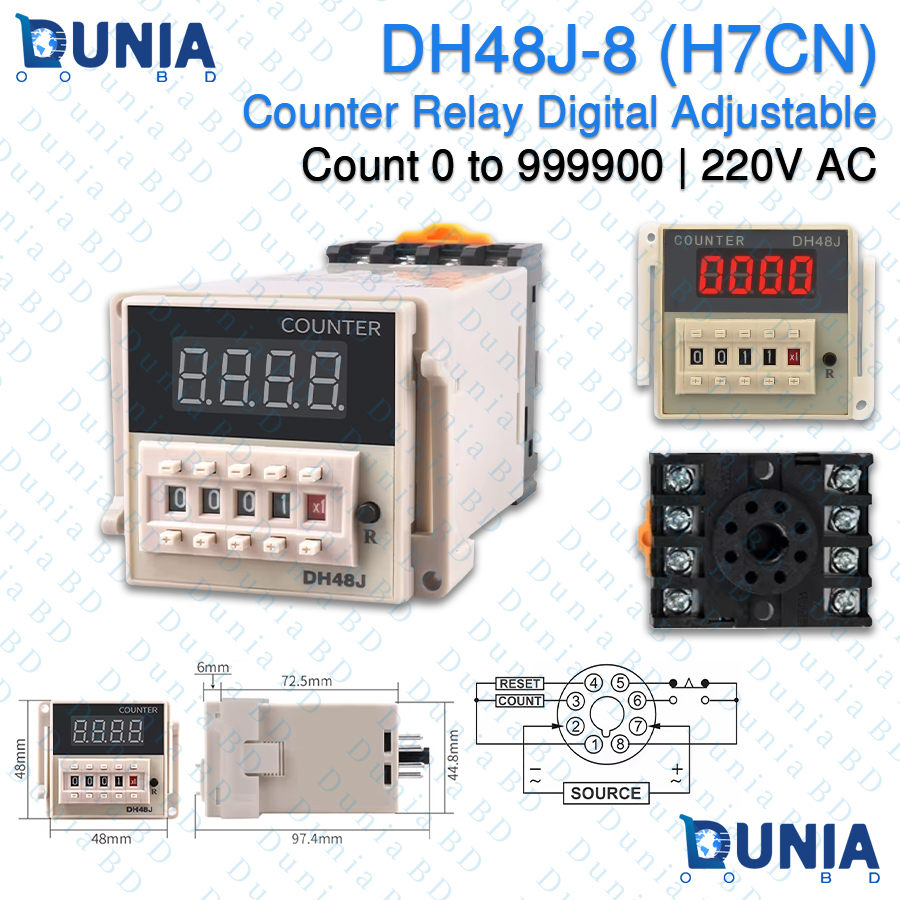

DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC

Specifications

• DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC specification details:
• Model: DH48J-8 (H7CN Series)
• Operating Voltage: AC 220V (50/60Hz)
• Counting Range: 1 to 9999 (x1, x10, x100 multiplier mode expandable up to 999900 counts)
• Display Type: 4-Digit Bright Red LED Digital Display
• Preset Adjustment Method: Front Panel Push-Button Thumbwheel Switches
• Reset Options: Front Panel Manual Reset Button (R) and External Terminal Reset
• Base Socket Type: Standard 8-Pin Round Base Relay Socket (Included)
• Front Panel Dimensions: 48mm x 48mm
• Main Body Depth: 72.5mm (Overall length with socket: 97.4mm)
• Mounting Cutout Size: 45mm x 45mm (DIN 48×48 Standard)
• Contact Capacity: 5A 250VAC Resistive Load
• Operating Temperature: -10°C to +50°C

Features

• High Accuracy Digital LED Display: Features a bright 4-digit red LED display providing clear, real-time visual tracking of count numbers.
• Wide Counting Capability: Supports batch counting up to 9999, expandable up to 999900 with multiplier presets for heavy industrial output monitoring.
• Intuitive Push-Button Preset: Easily set target counts using ergonomic tactile thumbwheel buttons (+ / -) directly on the front panel.
• Dual Reset Functionality: Equipped with a front-panel manual reset button (‘R’) alongside dedicated external wiring terminals for automated sequence reset.
• Standard 8-Pin Socket Mount: Designed with a plug-in 8-pin round relay base for quick installation, maintenance, and panel mounting versatility.
• The DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC is an industrial-grade electronic preset digital counter designed for precise batch counting, production line automation, and packaging machinery.
• Powered directly by 220V AC, this compact 48x48mm panel-mount device displays real-time counts on a vivid 4-digit red LED screen.
• Users can effortlessly configure targeted count triggers using front thumbwheel push buttons up to 9999, with range settings reaching up to 999900.
• When the predetermined target value is reached, internal high-reliability relay contacts trigger connected machinery or alarm indicators.
• Featuring both manual front reset and external automated terminal reset inputs, the DH48J-8 offers flexible workflow control. Complete with an 8-pin screw terminal base, it guarantees convenient DIN-rail or flush panel mounting for textile machines, plastic molding, stamping presses, and automated batching operations.

What is the price of DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC in Bangladesh?

The latest price of DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC in Bangladesh is Price: ৳905.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original DH48J-8 H7CN Counter Relay Digital Adjustable 0 to 999900 220V AC From Dunia.com.bd . We have a few collections of latest High Capacity Relay to purchase. Order Relay & Contactor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the input operating voltage for this counter relay?
   It operates on standard AC 220V power supply at 50/60Hz.
2. What is the maximum counting range of the DH48J-8?
   It counts up to 9999 natively, expandable up to 999900.
3. How do I set the target count value on this counter?
   Use the front panel push-button thumbwheel switches below the screen.
4. Does the package include the 8-pin relay base socket?
   Yes, a dedicated 8-pin mounting base socket is included.
5. How can I reset the count back to zero?
   Press the front ‘R’ button or connect external reset terminals.
6. What are the panel dimensions of the DH48J-8 counter?
   The front panel measures standard DIN 48mm x 48mm size.
7. What type of display does this digital counter use?
   It features a clear 4-digit bright red LED display.
8. What is the contact current capacity of the relay?
   The internal output relay is rated for 5A at 250VAC.
9. Is this counter suitable for industrial packaging machines?
   Yes, it is widely used for batching and production counting.
10. What pins are used for power supply connections?
    Pins 2 and 7 are reserved for AC 220V power source.
