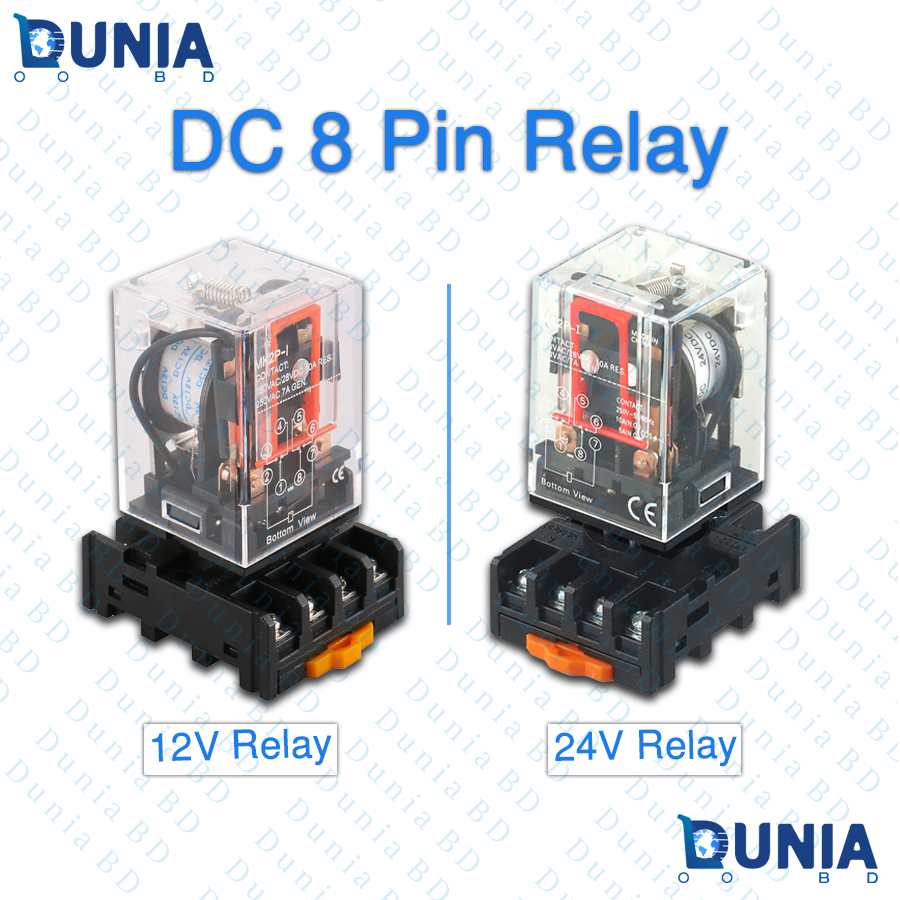

MK2P-I DC 8 Pin Relay 12V 24V 10A with Base

Specifications:

• DC 8 Pin Relay 12V 24V
• Model MK2P-I
• DC 8 Pin Relay with Base is a heavy-duty electromagnetic industrial control switch available in 12V and 24V DC coil variations.
• Product Classification: Electromagnetic General Purpose Power Relay with Din-Rail Socket Base
• Available Coil Voltage Variations: DC 12V Mode and DC 24V Mode (Selectable structural variants)
• Contact Current Load Rating: 10 Amperes maximum resistance load at 250VAC / 28VDC
• General Contact Capacity Rating: 7 Amperes resistive configuration layout at 250VAC
• Total Pin Configuration Layout: 8-Pin round plug-in male terminals configuration
• Matching Terminal Socket Base: Interlocking 8-pin circular female socket rail base with screw terminal clamps
• Coil Control Power Terminals: Dedicated Pin 2 and Pin 7 terminal block connection path
• Switching Contact Arrangement: Double Pole Double Throw (DPDT / 2C) circuit setup
• Circuit Node Matrix: Two Common nodes (1, 8), Two Normally Closed nodes (4, 5), Two Normally Open nodes (3, 6)
• Relay Unit Structural Height: 50 mm to 52 mm clear transparent casing profile
• Total Combined Assembly Height: 72 mm to 73 mm depth including attached terminal base
• Base Module Footprint Area: 41 mm structural width by 55 mm total base length dimension
• Enclosure Construction Shell: Crystal-clear flame-retardant transparent polycarbonate protective housing

Features:

• This industrial control relay set features a dual-variation lineup offering high-performance 12V and 24V DC operational configurations tailored for specific automated system networks.
• It utilizes a robust 8-pin round configuration that plugs into a heavy-duty screw terminal base panel with standard DIN-rail tracks seamlessly.
• The DPDT mechanism safely channels dual isolated loops up to 10 Amperes, managing power grids and high-voltage industrial motors accurately.
• The DC 8 Pin Relay 12V 24V 10A with Base represents a crucial industrial-grade automation instrument engineered for precise electronic signal isolation and power amplification tasks.
• Available in independent 12-volt and 24-volt direct current coil architectures, this heavy-duty mechanical toggle module integrates high-conductivity internal alloy points that handle resistive loads up to 10A effortlessly.
• The system includes a matched premium terminal adapter block featuring standard physical layouts where pins 2 and 7 establish direct electromagnetic control field pathways, reducing complex installation layouts.
• Protected inside a clear structural shield, engineers can quickly perform manual contact diagnostic reviews and status observations under heavy plant workloads.
• It is perfect for industrial automation control panels, custom PLC interface expansion grids, automotive electronics systems, and manufacturing processing machinery.

What is the price of DC 8 Pin Relay 12V 24V 10A with Base Price in Bangladesh?

The latest price of DC 8 Pin Relay 12V 24V 10A with Base Price in Bangladesh is Price: ৳200.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy DC 8 Pin Relay 12V 24V 10A with Base Price in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original DC 8 Pin Relay 12V 24V 10A with Base Price From Dunia.com.bd . We have a few collections of latest Relay to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1.  What voltage variations are available for this 8-pin industrial relay?
   It is available in two separate variants: 12V DC coil and 24V DC coil options.
2. What is the maximum contact current capacity of these structural units?
   The switching points handle a maximum resistive current rating of 10 Amperes.
3. Which exact pin numbers connect to the external control power source?
   Control power must be wired strictly to Terminal Pin 2 and Terminal Pin 7.
4. What is the internal circuit logic layout configuration of this relay?
    It features a Double Pole Double Throw (DPDT / 2C) internal circuit design.
5. Is the matching socket base panel included inside this specific package?
   Yes, each power relay comes complete with its matching 8-pin screw terminal base.
6. Can I mount this terminal socket base onto standard control tracks?
   Yes, the heavy-duty adapter base supports standard industrial DIN-rail snap mounting.
7. What are the specific terminal pin locations for the Common lines?
   Terminal Pin 1 and Terminal Pin 8 serve as the main Common (COM) nodes.
8. How can I identify whether a unit is the 12V or 24V variation?
   The specific operational working voltage rating is clearly printed directly on the internal coil.
9. What is the benefit of the clear transparent plastic enclosure frame?
   It allows easy visual inspections of the internal mechanics and contact status parameters.
10.  What is the total assembled physical height of the entire block?
    The total structural height measures between 72mm and 73mm including the base.
