Specifications
- DC-025M Female Metal Jack is designed for reliable power transmission in electronics.
- Model Number: DC-025M Metal
- Connector Type: Female Jack Socket
- Mounting Type: Panel Mount / Threaded Nut
- Pin Configuration: 3-Pin Terminal Block
- Inner Pin Diameter: 2.0mm
- Outer Diameter compatibility: 5.4mm

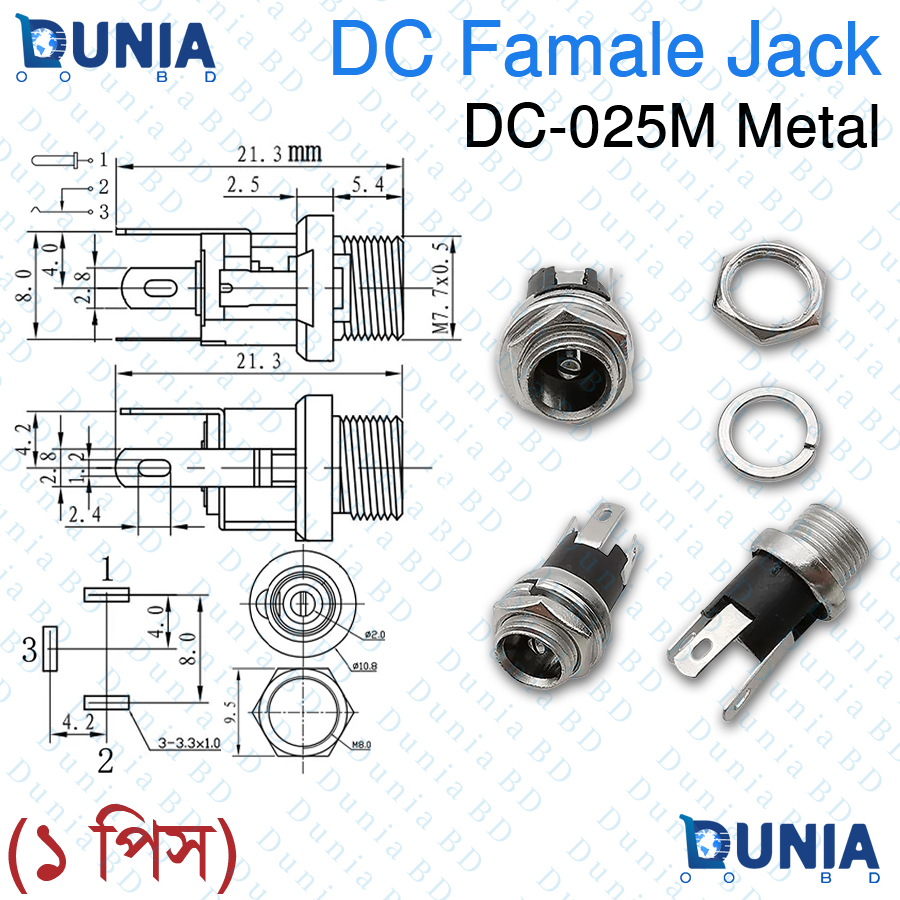

- Total Length: 21.3mm
- Thread Size: M7.7 x 0.5
- Housing Material: Premium Metal and High-Temperature ABS
- Rated Load: DC 30V 0.5A
- Contact Resistance: ≤0.03Ω
- Insulation Resistance: ≥100MΩ (DC250V)
- Withstand Voltage: 500V AC per minute
- Insertion and Extraction Force: 3N to 20N
- Life Cycle: Up to 5000 cycles
- Package Contents: 1 Piece Metal Female Jack with Nut and Washer
Features
- Premium threaded metal body ensures maximum durability and heavy-duty usage.
- Standard 3-pin configuration supports seamless PCB mounting or direct wire soldering.
- Secure panel mount design equipped with a washer and hexagonal fixing nut.
- Heat-resistant structural housing prevents melting during high-temperature soldering.
- Stable electrical conductivity minimizes power fluctuations and signal loss.
- The DC-025M Female Metal Jack DC Power Socket is an essential hardware component engineered for electronics hobbyists, DIY enthusiasts, and hardware manufacturers.
- This heavy-duty metal jack offers an ultra-secure power connection interface, making it perfect for custom power supply units, radio projects, robotics, and audio-video amplifier modules.
- Its robust metallic outer shell stands resilient against physical impacts and frequent plugging cycles, outperforming standard plastic casing connectors.
- The integrated M7.7 threading allows easy installation onto plastic, wood, or acrylic enclosures, providing a clean and professional finish to your custom control panels.
- With high insulation resistance and optimized power tolerance, it guarantees continuous electrical flow without overheating or degrading.
What is the price of DC-025M Female Metal Jack DC Power Socket Panel Mount Connector 1Pack in Bangladesh?
The latest price of DC-025M Female Metal Jack DC Power Socket in Bangladesh is Price: ৳27.50 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
Buy DC-025M Female Metal Jack DC Power Socket Panel Mount Connector 1Pack in Bangladesh from online at Dunia.com.bd.
In Bangladesh, you can get the original DC-025M Female Metal Jack DC Power Socket From Dunia.com.bd . We have a few collections of latest Connector to purchase. Order Connector & Terminals Online at our website Or Visit our warehouse to get your product at lowest price.
FAQ
- What is the pin count of this connector?
The DC-025M metal socket has a 3-pin terminal layout. - What size plug fits inside this jack?
It fits a standard 2.0mm inner and 5.4mm outer plug. - Does the package include mounting hardware?
Yes, each pack includes a securing washer and metal nut. - What material is the outer casing made of?
The external body is made of high-quality zinc-plated metal. - Can it be mounted on external project panels?
Yes, the threaded panel-mount design makes installation extremely easy. - What is the voltage rating for this jack?
It safely handles up to DC 30V and 0.5A loads. - Is this connector suitable for high temperature soldering?
Yes, the high-temperature terminal base prevents terminal misalignment during soldering. - How many insertion cycles can this jack withstand?
It is built to last for over 5000 insertion cycles. - What is the total length of this socket?
The total length of the component measures exactly 21.3mm. - Is this a waterproof power socket?
No, it is standard metal jack designed for dry indoor applications.
