Audio Bluetooth Amplifier E-6 15-20W 7.4V 9V 12V Remote Control Module

Specifications

• Audio Bluetooth Amplifier E-6 module for portable speakers and custom sound builds.
• Power Output: 15W to 20W audio amplifier performance.
• Operating Voltage: Multi-voltage support for 7.4V (Lithium battery), DC 9V, and DC 12V.

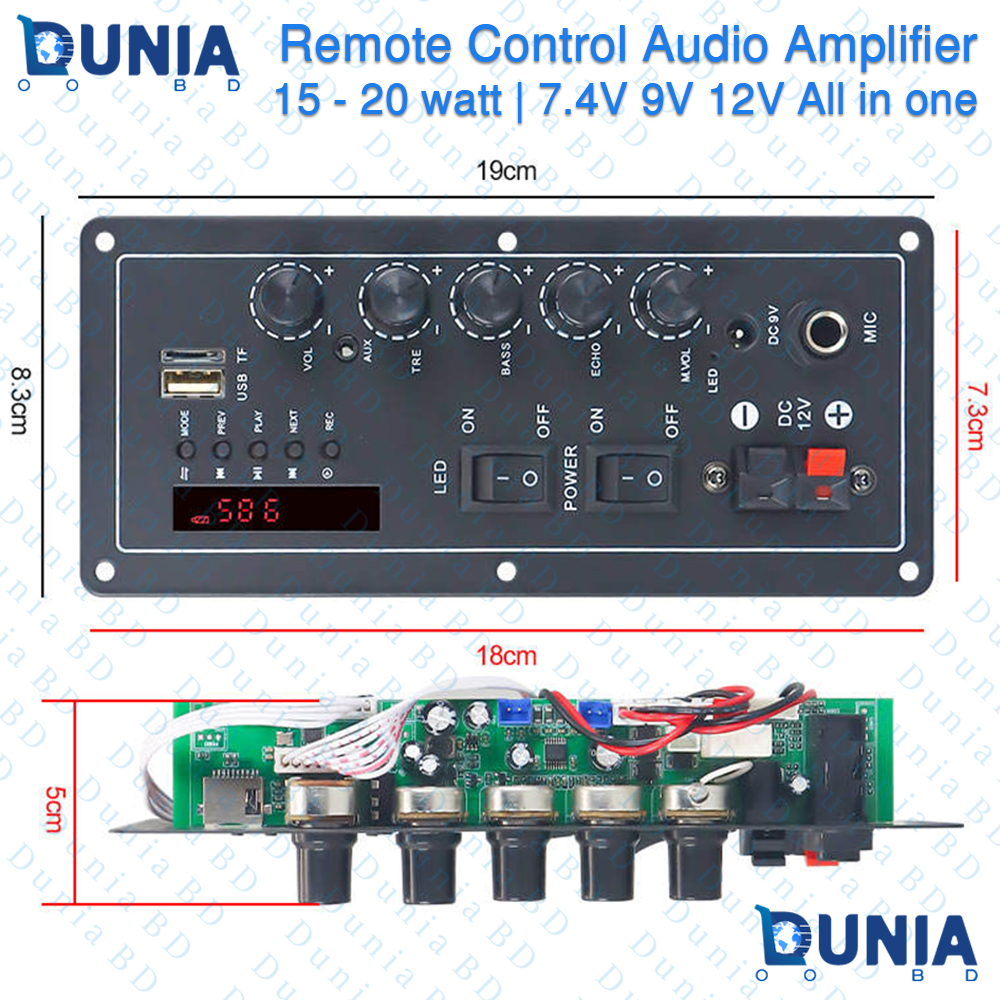

• Dimensions: Front Panel: 19cm x 8.3cm, Cutout: 18cm x 7.3cm, Board Depth: 5cm.

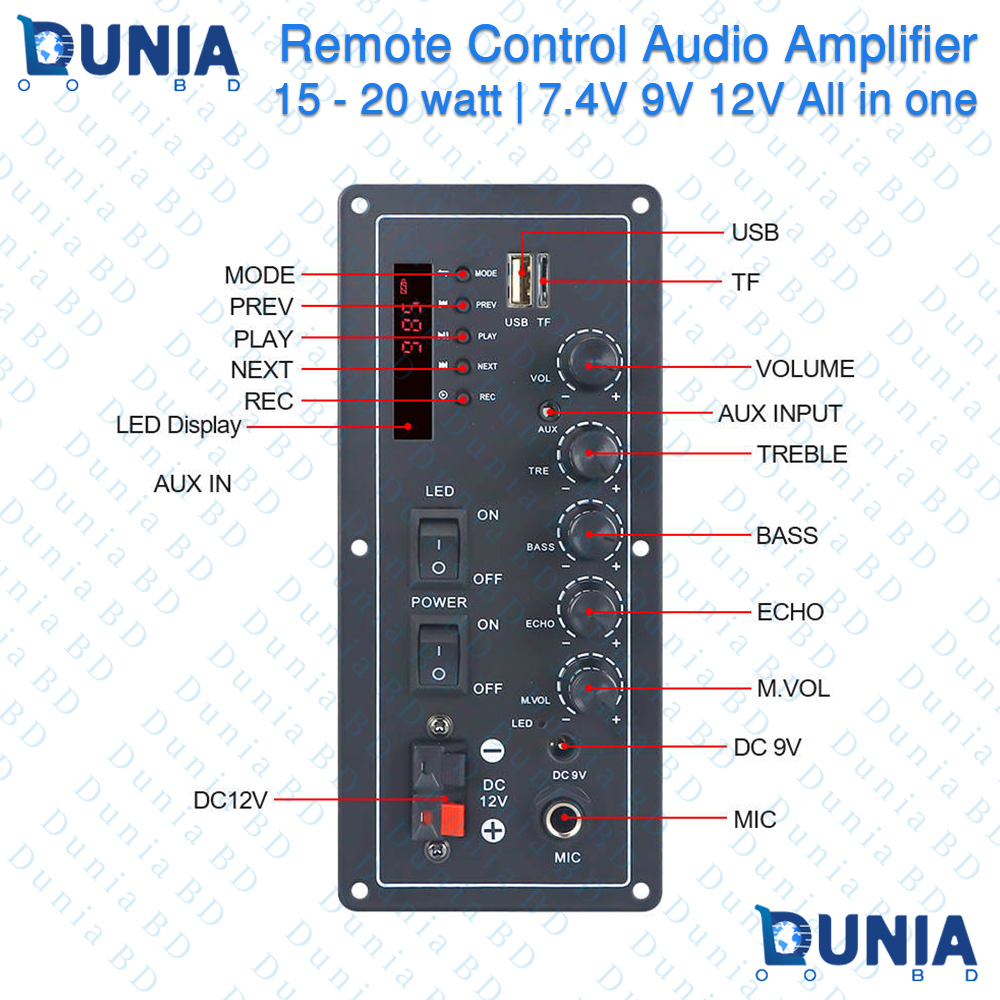

• Audio Control Parameters: Dedicated Volume, Treble, Bass, Echo, and Microphone Volume knobs.
• Connectivity Support: Bluetooth wireless, USB port, TF card slot, AUX line-in, 6.35mm wired mic jack, and wireless mic board port.

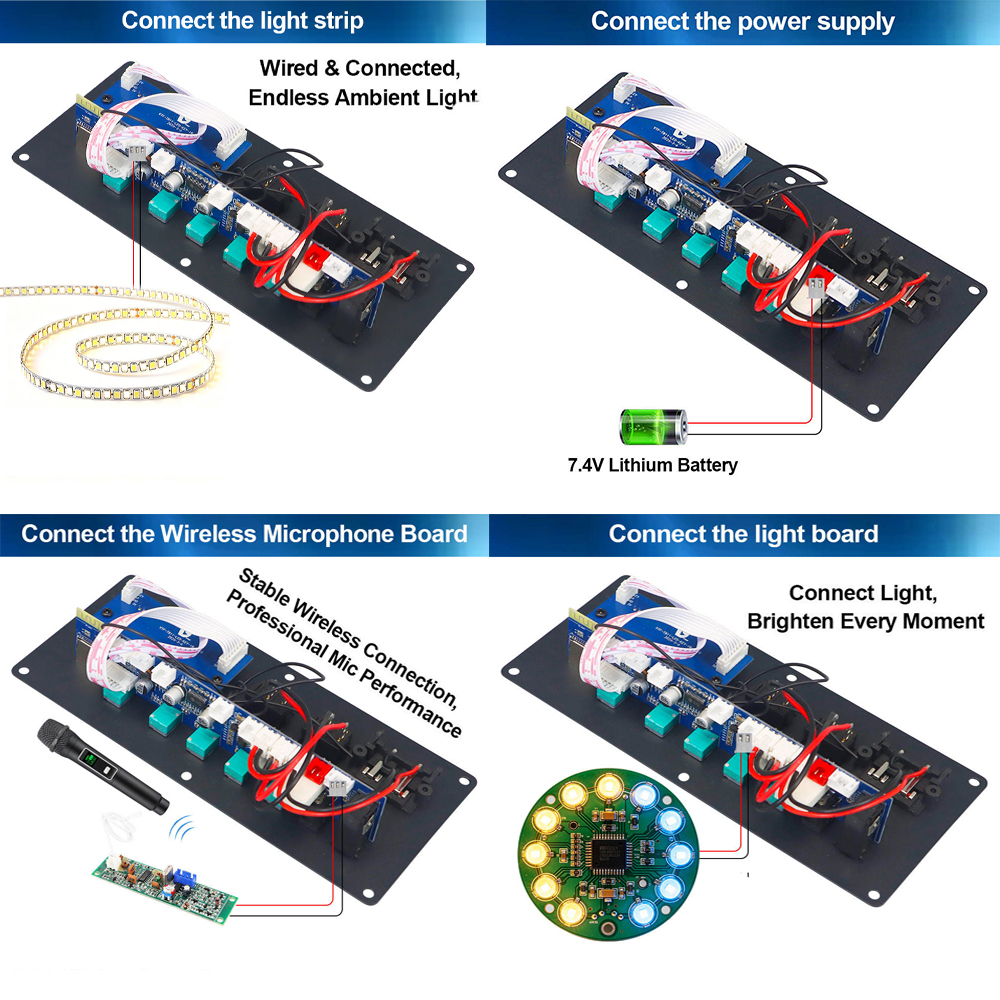

• Lighting Support: Built-in connector terminals for ambient LED light strips and circular LED light boards.

Features

• Triple Power Compatibility: Easily powers up via 7.4V rechargeable battery packs, DC 9V adapters, or 12V DC power systems.
• Full Tone Customization: Master panel equipped with independent knobs for Volume, Treble, Bass, Echo, and Mic Volume control.
• Karaoke Integration: Direct wired microphone input and expansion port for wireless microphone receiver boards.
• Integrated LED Control: Onboard outputs allow dynamic connection to ambient LED light strips and circular LED boards.
• The Audio Bluetooth Amplifier E-6 is a feature-rich 15-20W all-in-one sound module crafted for custom speaker builds, trolley speakers, and portable karaoke setups.
• Supporting flexible power options including 7.4V lithium batteries alongside DC 9V and 12V inputs, it is designed for both home and outdoor audio setups.
• Equipped with Bluetooth wireless audio streaming, USB and TF card playback, AUX input, audio recording (REC), and FM radio, this module ensures seamless audio connectivity.
• Its comprehensive control panel allows precise sound tuning with dedicated Echo, Treble, and Bass knobs while supporting ambient LED light attachments for an engaging visual experience.

What is the price of Audio Bluetooth Amplifier E-6 15-20W 7.4V 9V 12V Remote Control Module in Bangladesh?

The latest price of Audio Bluetooth Amplifier E-6 15-20W 7.4V 9V 12V Remote Control Module in Bangladesh is Price: ৳1,145.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Audio Bluetooth Amplifier E-6 15-20W 7.4V 9V 12V Remote Control Module in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Audio Bluetooth Amplifier E-6 15-20W 7.4V 9V 12V Remote Control Module From Dunia.com.bd . We have a few collections of latest Audio & Amplifier Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the RMS power output of the E-6 amplifier module?
   It delivers a power output of 15 to 20 Watts RMS.
2. Can I run this amplifier using a 7.4V lithium battery?
   Yes, it natively supports 7.4V battery supply input.
3. What other voltages can power the E-6 amplifier?
   It works seamlessly with DC 9V and DC 12V inputs.
4. Does this module support wireless Bluetooth playback?
   Yes, it features integrated Bluetooth audio connectivity.
5. Can I attach LED light strips directly to this board?
   Yes, it includes dedicated header ports for LED light strips.
6. Does it include microphone control knobs for karaoke?
   Yes, it features dedicated microphone volume and echo control knobs.
7. What are the outer dimensions of this amplifier plate?
   The outer front panel measures 19cm in length by 8.3cm.
8. Can I connect a wireless mic board to it?
   Yes, it has an expansion port for wireless microphone boards.
9. Does it support TF card and USB drive playback?
   Yes, both USB drive and TF card slots are present.

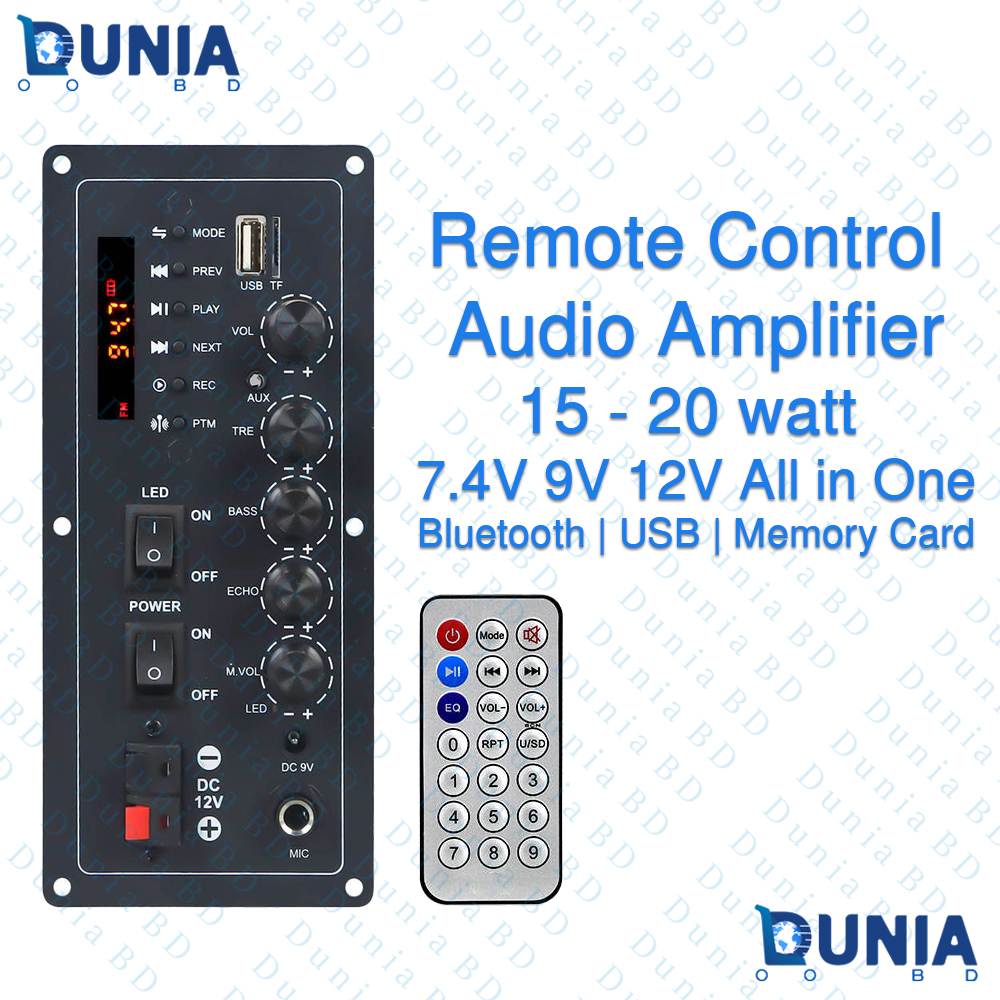

10. Is an IR remote control included with this amplifier?
    Yes, it includes a multi-function wireless IR remote control handset.
