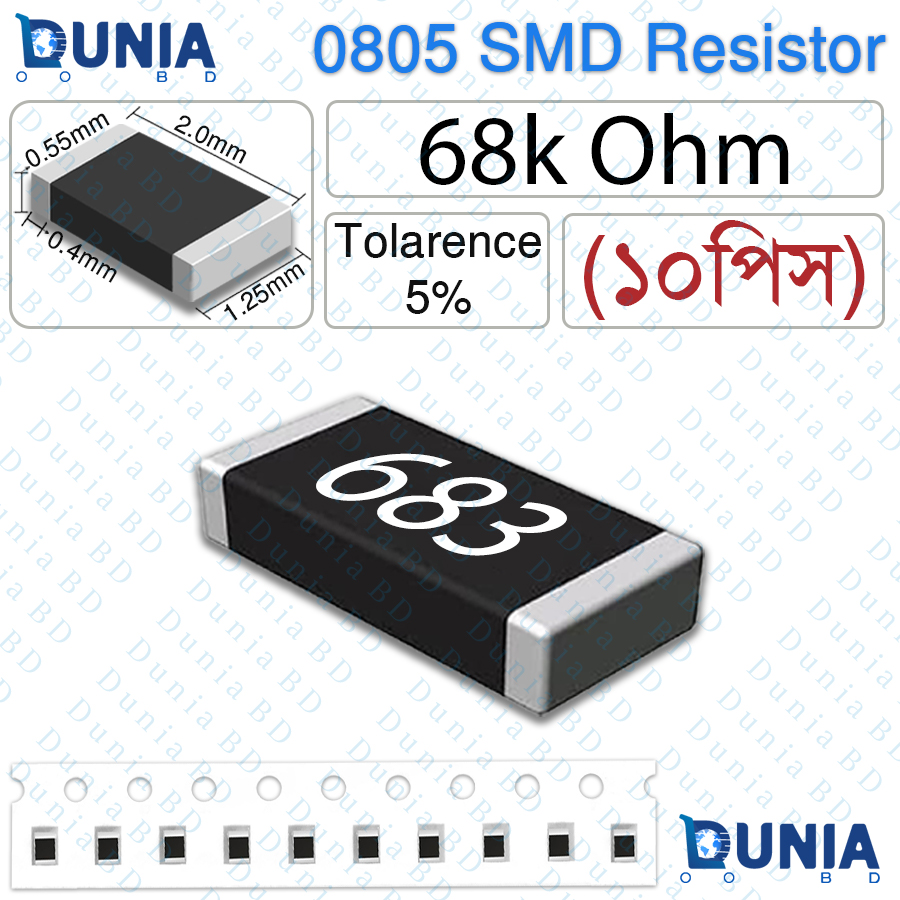

68K Ohm 683 0805 SMD Resistor 1/8W ±5% Tolerance High Kilo Ohm Chip Resistor for Precision High Impedance Applications

Specifications

• 68K Ohm 683 0805 SMD Resistor 1/8W
• Resistance Value: 68K Ohm (683)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• Compact 0805 package maintains high isolation in high-resistance circuits
• ±5% tolerance for accurate performance in high-kilo-ohm range
• 1/8W power rating designed for ultra-low-current applications
• Thick film technology provides very high insulation resistance and low leakage
• Wide operating temperature range ensures stable high-value behavior
• RoHS compliant and lead-free construction
• Reliable solder joints suitable for precision and production assembly
• The 68K Ohm (683) 0805 SMD Resistor is a high kilo-ohm value component specifically suited for applications that demand extremely low current flow combined with high impedance and precision. Featuring ±5% tolerance and a conservative 1/8W power rating, this resistor excels in high-impedance voltage divider networks for precision analog sensor scaling, high-accuracy ADC input conditioning, reference voltage generation in measurement circuits, and low-noise signal attenuation, as well as pull-up/pull-down resistors in high-impedance digital inputs, sensitive microcontroller GPIO configurations, and specialized open-drain interfaces where leakage must be minimized. It is also widely used for very low-current limiting in specialized indicator circuits and high-resistance biasing in precision analog front-ends, instrumentation amplifiers, and feedback networks.
• The thick film deposition process delivers exceptionally high insulation resistance, extremely low parasitic capacitance and leakage current, minimal voltage coefficient of resistance, low thermal noise, and outstanding long-term stability against humidity, temperature extremes, and aging effects—making this resistor particularly valuable in precision test & measurement equipment, high-accuracy sensor interfaces, medical instrumentation, battery monitoring systems with low quiescent current requirements, industrial process control, and other applications where high resistance values must remain accurate and stable over time and environmental conditions.
• The industry-standard 0805 footprint provides excellent electrical isolation even at high resistance values while maintaining reliable thermal performance and soldering strength, supporting implementation in both high-density production PCBs and individual high-precision prototypes.
• Fully RoHS compliant and manufactured under tight process controls with special attention to high-value resistor characteristics, the 68K 0805 offers engineers and designers a dependable, high-performance solution for demanding high-impedance and precision analog/digital requirements.

What is the price of 68K Ohm 683 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 68K Ohm 683 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 68K Ohm 683 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 68K Ohm 683 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the exact resistance value?
   Precisely 68K Ohms (68,000 Ohms), marked as 683.
2. What package size is it?
   Standard 0805 SMD (2012 Metric).
3. How much power can it handle?
   Up to 1/8W (0.125W) – conservative rating for high-value stability.
4. What is the tolerance?
   ±5%, suitable for precision high-impedance applications.
5. What is the maximum working voltage?
   150V.
6. What temperature range does it support?
   -55°C to +155°C.
7. Is reflow soldering supported?
   Yes, fully compatible with standard SMT reflow processes.
8. Is it RoHS compliant?
   Yes, lead-free and meets all RoHS standards.
9. How is the value marked?
   Typically marked “683”.
10. What are typical applications?
    High-impedance voltage dividers, precision sensor/ADC circuits, high-impedance digital pull-up/pull-down, very low-current limiting, precision analog biasing.
