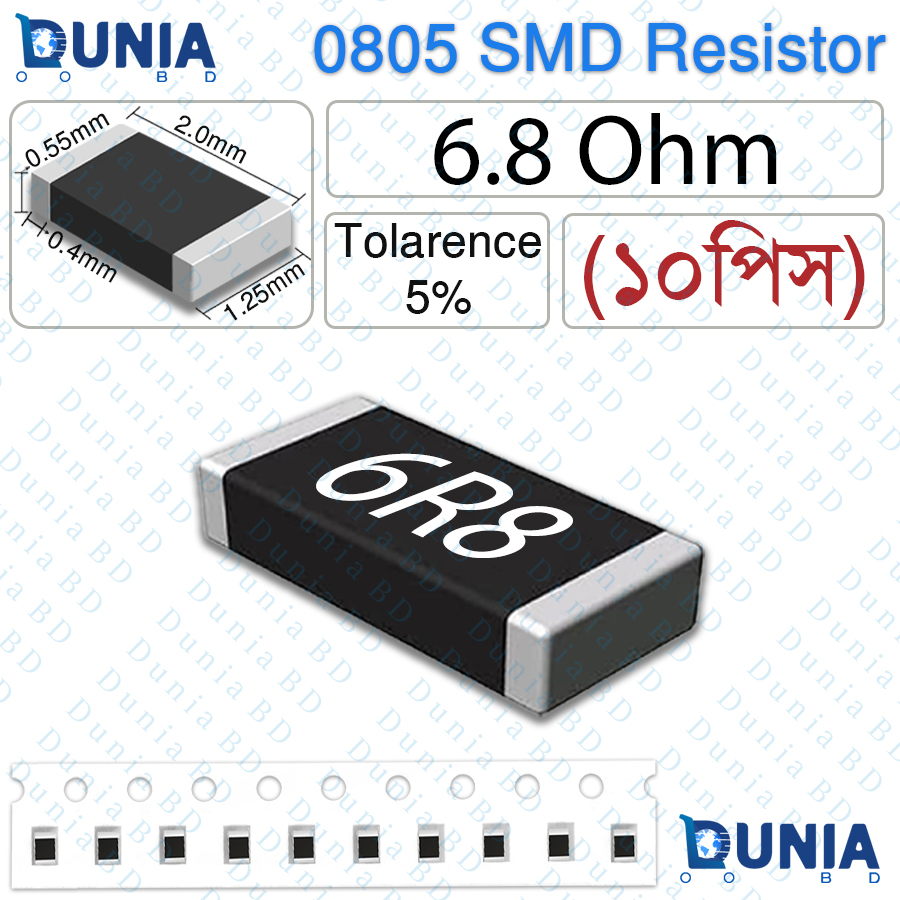

6.8 Ohm 6R8 0805 SMD Resistor 1/8W ±5% Tolerance Precision Low-Value Chip Resistor for LED and Power Circuits

Specifications

• 6.8 Ohm 6R8 0805 SMD Resistor 1/8W
• Resistance Value: 6.8 Ohm (6R8)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• 0805 compact size ideal for dense PCB layouts
• ±5% tolerance for consistent low-ohm performance
• 1/8W power rating supports typical current-limiting tasks
• Thick film technology for thermal and environmental stability
• Broad temperature range for versatile deployment
• RoHS compliant, lead-free manufacturing
• Easy compatibility with SMT and hand soldering
• This 6.8 Ohm (6R8) 0805 SMD Resistor offers excellent low-resistance characteristics in a miniature package, making it a top choice for applications requiring controlled current flow without excessive power loss. The ±5% tolerance combined with 1/8W rating makes it highly suitable for LED string current balancing, power supply inrush limiting, audio volume control circuits, small load resistors, and feedback networks in regulators.
• Crafted with thick film deposition, it maintains tight resistance stability across temperature fluctuations and humidity exposure, delivering dependable results in LED lighting systems, portable power banks, audio equipment, automotive modules, and DIY electronics projects.
• The 0805 form factor provides optimal solder joint strength and thermal dissipation in space-limited boards. RoHS compliant and built for both automated production and prototype development, this resistor combines affordability, precision, and robustness for modern electronic assemblies.

What is the price of 6.8 Ohm 6R8 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 6.8 Ohm 6R8 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 6.8 Ohm 6R8 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 6.8 Ohm 6R8 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

• What resistance does it provide?
  Exactly 6.8 Ohms, marked 6R8.
• Package details?
  0805 SMD (2012 Metric).
• Power capability?
  1/8W (0.125W).
• Tolerance level?
  ±5%.
• Max voltage rating?
  150V working voltage.
• Temperature operation?
  -55°C to +155°C.
• Soldering compatibility?
  Yes, reflow and hand soldering supported.
• RoHS status?
  Yes, fully compliant and lead-free.
• Marking on body?
  “6R8” typically printed.
• Common uses?
  LED current balancing, power inrush limiting, audio attenuation, load resistors.
