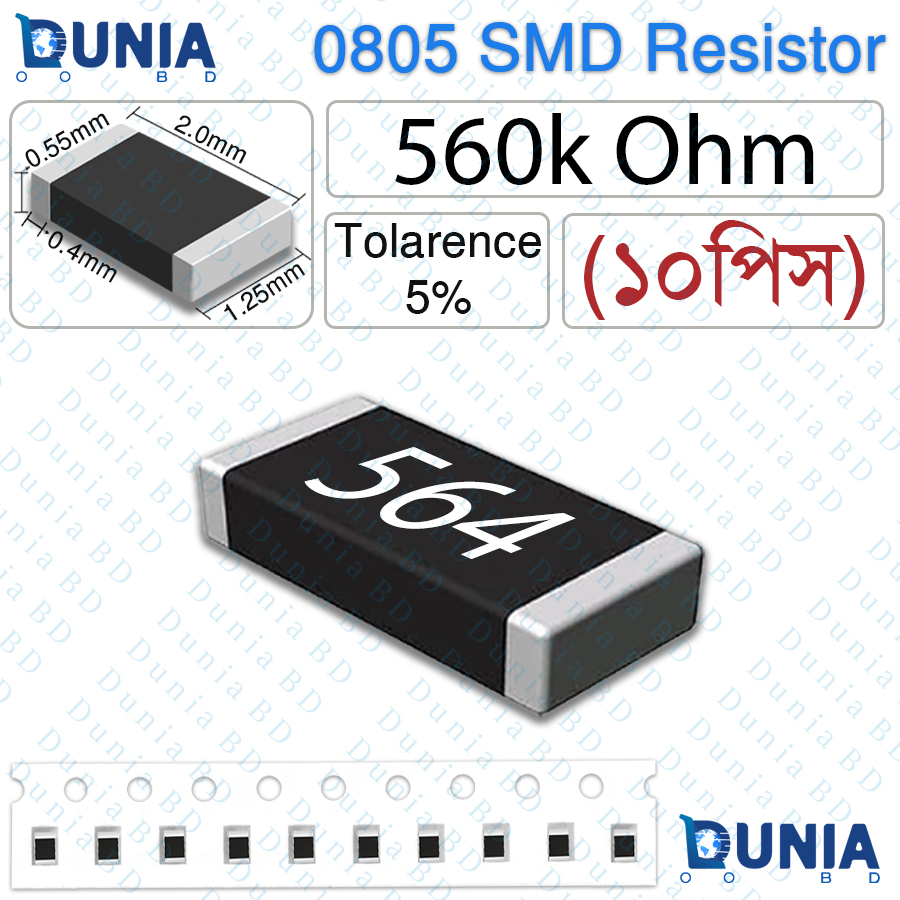

560K Ohm 564 0805 SMD Resistor 1/8W ±5% Tolerance Mega High Value Precision Chip Resistor for Ultra High Impedance Applications

Specifications

• 560K Ohm 564 0805 SMD Resistor 1/8W
• Resistance Value: 560K Ohm (564)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• Compact 0805 package maintains excellent isolation at mega-ohm levels
• ±5% tolerance for reliable accuracy in the high 500k+ ohm range
• 1/8W power rating optimized for ultra-low-current / near-zero power circuits
• Thick film technology delivers extremely high insulation resistance and picoampere-level leakage
• Wide operating temperature range (-55°C to +155°C) ensures rock-solid performance
• RoHS compliant and lead-free manufacturing
• Ideal for electrometer-grade, medical, scientific and ultra-sensitive designs
• Long Product Description
• The 560K Ohm (564) 0805 SMD Resistor is a mega-high value precision resistor designed for the most demanding ultra-high-impedance and ultra-low-current applications in precision electronics. With ±5% tolerance and a conservative 1/8W power rating, it is the ideal choice for ultra-high-impedance voltage divider networks in precision analog sensor front-ends, high-accuracy ADC signal chains, ultra-low-noise reference voltage sources, picoammeter input protection, electrometer-grade current measurement, and any circuit where input bias currents must be kept in the picoampere or femtoampere domain. It is also widely used as ultra-low-leakage pull-up/pull-down resistors in high-impedance digital sensor interfaces, nanowatt-class or deep-sleep microcontroller GPIO configurations, specialized open-drain setups in battery-powered scientific instrumentation, and any mixed-signal or digital circuit where leakage must be minimized to preserve signal integrity or battery life. Additionally, it serves as the cornerstone high-resistance element in transimpedance amplifiers with pico/femtoampere resolution, feedback networks in ultra-low-power op-amps, leakage current monitoring in high-voltage insulation testers, guard-ring biasing in pico-level measurement systems, and the most sensitive analog signal paths in scientific, medical, and industrial precision instruments.
• Thick film technology achieves outstandingly high insulation resistance (teraohm range), vanishingly low leakage current (picoampere to femtoampere domain), extremely low parasitic capacitance and inductance, negligible voltage and temperature coefficients at this level, ultra-low thermal and current noise, and exceptional long-term stability against humidity, voltage stress, temperature cycling, and aging—making the 560K 0805 indispensable in high-accuracy scientific instrumentation, medical diagnostic & therapeutic devices, radiation & particle detectors, ultra-low-power environmental monitoring nodes, precision electrometers, femtoampere current sources, and any application where resistance values in the high hundreds of kilo-ohms must remain exceptionally accurate and virtually drift-free over years of operation in challenging environments.
• The 0805 package maintains excellent electrical isolation even at 560kΩ while providing reliable thermal behavior for its power class and strong soldering integrity, supporting seamless implementation in both ultra-dense high-reliability production boards and individual laboratory-grade ultra-precision prototypes.
• Fully RoHS compliant and manufactured under the strictest high-value resistor process controls with special attention to leakage, drift, noise, and stability at mega-ohm levels, the 560K 0805 offers engineers and designers one of the most trusted, highest-performance mega-ohm resistors available for critical ultra-high-impedance and ultra-precision analog/digital requirements.

What is the price of 560K Ohm 564 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 560K Ohm 564 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 560K Ohm 564 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 560K Ohm 564 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 560K Ohms (560,000 Ohms), marked as 564.
2. What package is it?
   Standard 0805 SMD (2012 Metric).
3. Power rating?
   1/8W (0.125W).
4. Tolerance?
   ±5%.
5. Maximum voltage?
   150V.
6. Temperature range?
   -55°C to +155°C.
7. Soldering method?
   Reflow/hand supported.
8. RoHS?
   Yes, compliant.
9. Marking?
   “564”.
10. Common applications?
    Ultra-high-impedance voltage dividers, pico-level sensor/electrometer circuits, ultra-low-leakage digital pull-up/pull-down, near-zero current applications, highest-precision analog/instrumentation biasing.
