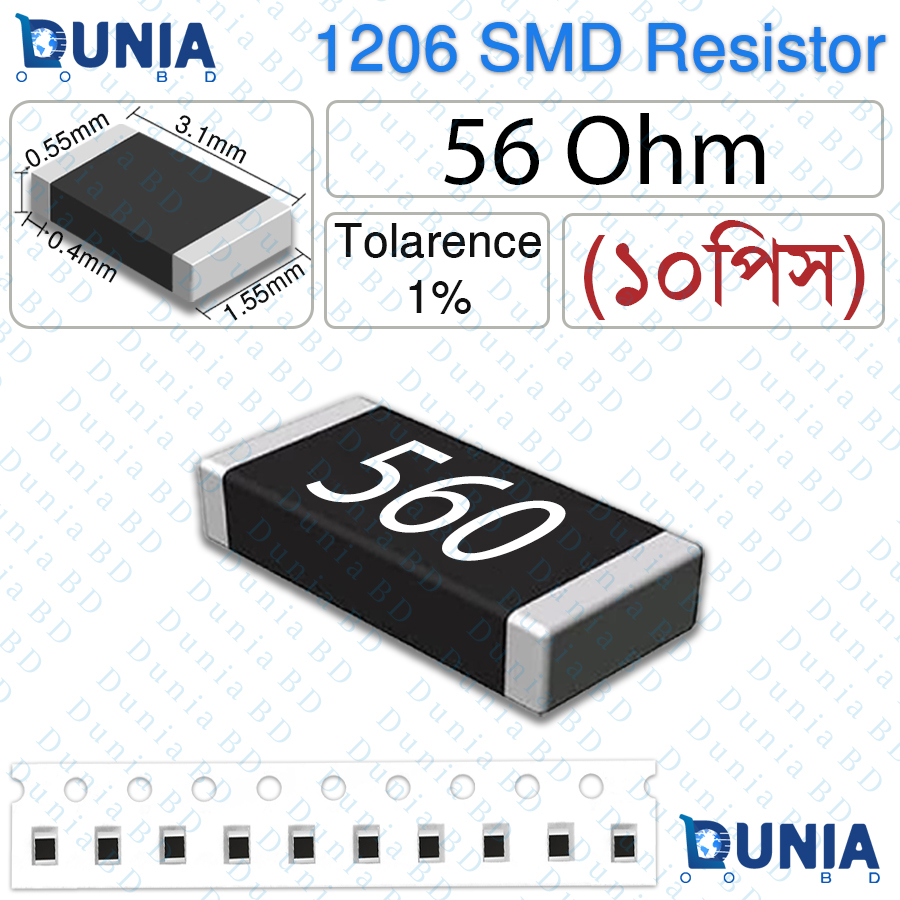

56 Ohm 560 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 56 Ohm 560 1206 SMD Resistor 1/4W
• Resistance Value: 56 Ohm (560 marking)
• Tolerance: ±1%
• Power Rating: 1/4W (0.25W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Temperature Coefficient: ±100 ppm/°C (typical)
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 200V (typical)
• Dimensions: 3.2mm × 1.6mm × 0.55mm (approximate)
• Mounting Type: Surface Mount (SMD/SMT)
• Termination: Wraparound / Solderable

Features

• ±1% tolerance for accurate and consistent resistance values
• Compact 1206 package (3.2mm × 1.6mm) perfect for high-density circuit boards
• 1/4 Watt (0.25W) power rating suitable for general-purpose applications
• Thick film construction ensures long-term reliability and thermal stability
• Wide operating temperature range: typically -55°C to +155°C
• RoHS compliant and lead-free for modern electronics
• Excellent solderability for reflow, wave, and hand soldering
• Low temperature coefficient minimizes resistance drift with temperature
• The 56 Ohm (marked 560) 1206 SMD Resistor with ±1% tolerance and 1/4W power rating is a precision surface-mount component engineered for high-accuracy and dependable performance in modern electronic designs. Manufactured using thick film resistive technology on a durable ceramic substrate, it provides stable resistance, low noise, and excellent thermal characteristics across a broad temperature range.
• The industry-standard 1206 footprint is widely adopted in automated SMT assembly, consumer electronics, LED current limiting applications (series resistors for LEDs), audio signal processing, digital logic pull-up/pull-down networks, sensor circuits, power supply feedback, IoT devices, automotive modules, and professional repair services. Its tight 1% tolerance is especially beneficial for circuits requiring precise current control, accurate voltage division, stable biasing, or consistent signal conditioning.
• Rated for a typical 200V working voltage and 0.25W power dissipation, this resistor performs reliably in both everyday and moderately demanding environments. Fully RoHS compliant and compatible with standard reflow, wave, and hand soldering processes.
• Ideal for production manufacturing, service inventory, prototyping, hobbyist projects, and educational applications—this 56Ω 1206 1% resistor delivers professional-grade precision, robust durability, and excellent value.

What is the price of 56 Ohm 560 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 56 Ohm 560 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 56 Ohm 560 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 56 Ohm 560 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

4. What does the “560” marking mean on this 1206 resistor?
   “560” is the standard 3-digit SMD code for 56 Ohms (56 × 10⁰ = 56Ω).
5. Can this resistor handle more than 1/4 watt continuously?
   No — the maximum continuous power rating is 0.25W; exceeding it risks overheating or damage.
6. Why choose 1% tolerance over 5% for 56Ω resistors?
   1% tolerance limits variation to ±0.56Ω, which is crucial for accurate LED current limiting, analog circuits, or precision voltage dividers.
7. Is 1206 size easy for hand soldering?
   Yes, 1206 is one of the most hand-solder-friendly SMD sizes, suitable even for beginners with a fine-tip iron.
8. What are the exact dimensions of a 1206 package?
   Approximately 3.2 mm long × 1.6 mm wide × 0.55 mm high.
9. Is this resistor RoHS compliant and lead-free?
   Yes, modern 1206 SMD resistors are typically RoHS compliant and lead-free.
10. What is the reliable operating temperature range?
    Typically -55°C to +155°C for consistent performance.
11. Suitable for automotive or industrial use?
    Yes, provided voltage, power, and temperature stay within rated specifications.
12. How is 56Ω normally marked on SMD resistors?
    The vast majority use the 3-digit code “560”.
13. Are these resistors available in reels for automated placement?
    Yes, standard reel quantity is 5,000 pieces for pick-and-place machines.
