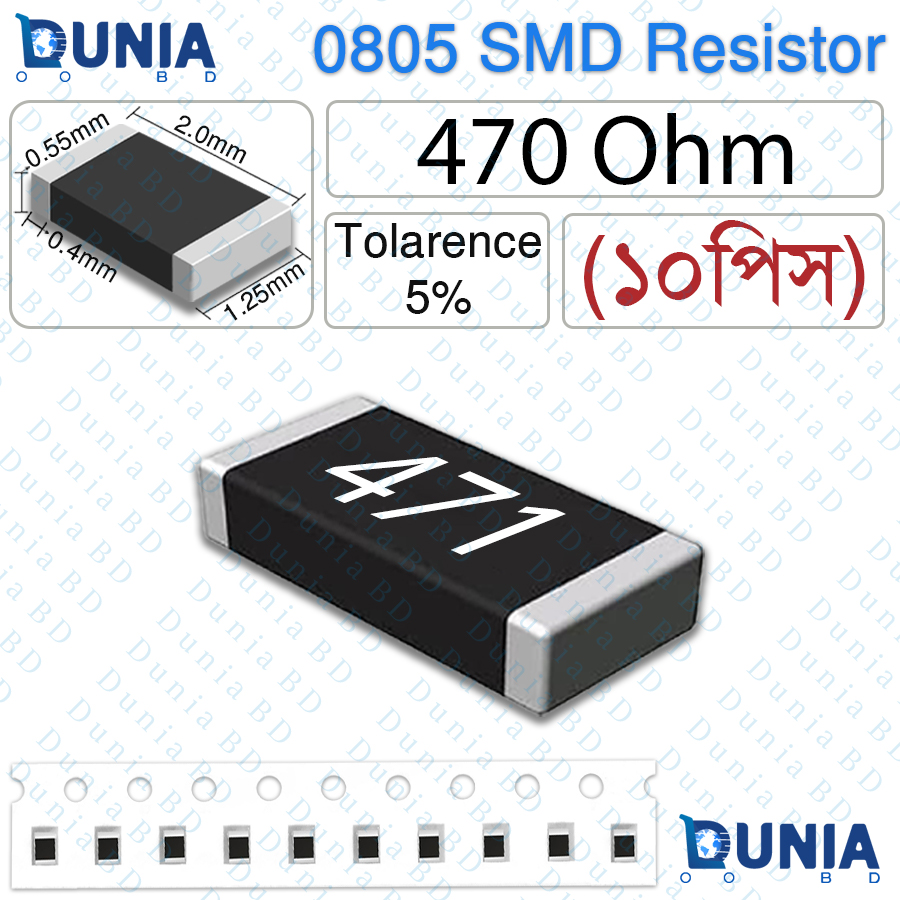

470 Ohm 471 0805 SMD Resistor 1/8W ±5% Tolerance High-Value Chip Resistor for LED Arrays and Digital Pull-Up

Specifications

• 470 Ohm 471 0805 SMD Resistor 1/8W
• Resistance Value: 470 Ohm (471)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• Standard 0805 package for high-density PCB compatibility and easy handling
• ±5% tolerance ensures reliable performance in high-value applications
• 1/8W (0.125W) power rating suitable for typical current-limiting and pull-up duties
• Thick film construction delivers superior thermal and humidity stability
• Wide operating temperature range for versatile environmental conditions
• RoHS compliant and lead-free for eco-conscious designs
• Excellent solderability with reflow and hand soldering methods
• The 470 Ohm (471) 0805 SMD Resistor is a widely used high-value resistor that provides precise current control and signal management in low-power electronic circuits. Featuring ±5% tolerance and a 1/8W power rating, it is the preferred choice for current limiting in LED arrays, 7-segment displays, and indicator panels (especially at 5V–12V logic levels), pull-up resistors in microcontroller I/O pins, digital logic gates, and open-drain configurations, voltage dividers for analog signal scaling, and general-purpose biasing in op-amps or transistor stages.
• Thick film technology ensures minimal resistance drift, low noise contribution, and robust resistance to temperature variations, humidity, and long-term aging effects, making it highly suitable for LED driver boards, Arduino/Raspberry Pi projects, industrial control panels, automotive indicators, consumer appliances, and professional PCB assemblies.
• The compact yet practical 0805 footprint supports dense board layouts while maintaining good thermal dissipation and soldering reliability during both automated production and manual prototyping.
• Fully RoHS compliant and manufactured to stringent quality standards, this resistor offers dependable, cost-effective performance that engineers, technicians, and hobbyists trust for consistent results in a broad range of electronic applications.

What is the price of 470 Ohm 471 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 470 Ohm 471 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 470 Ohm 471 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 470 Ohm 471 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the exact resistance value?
   Precisely 470 Ohms, marked as 471.
2. What package does it use?
   Standard 0805 SMD (2012 Metric).
3. How much power can it dissipate?
   Up to 1/8W (0.125W) under typical conditions.
4. What is the tolerance specification?
   ±5%, ideal for general-purpose and semi-precision circuits.
5. What is the maximum working voltage?
   150V.
6. What temperature range can it operate in?
   -55°C to +155°C.
7. Is it suitable for reflow soldering?
   Yes, fully compatible with standard SMT reflow processes.
8. Is the resistor RoHS compliant?
   Yes, lead-free and meets all RoHS standards.
9. How is the value marked on the body?
   Usually marked “471”.
10. What are the primary applications?
    LED array/display current limiting, microcontroller/digital pull-up resistors, voltage dividers, analog biasing networks.
