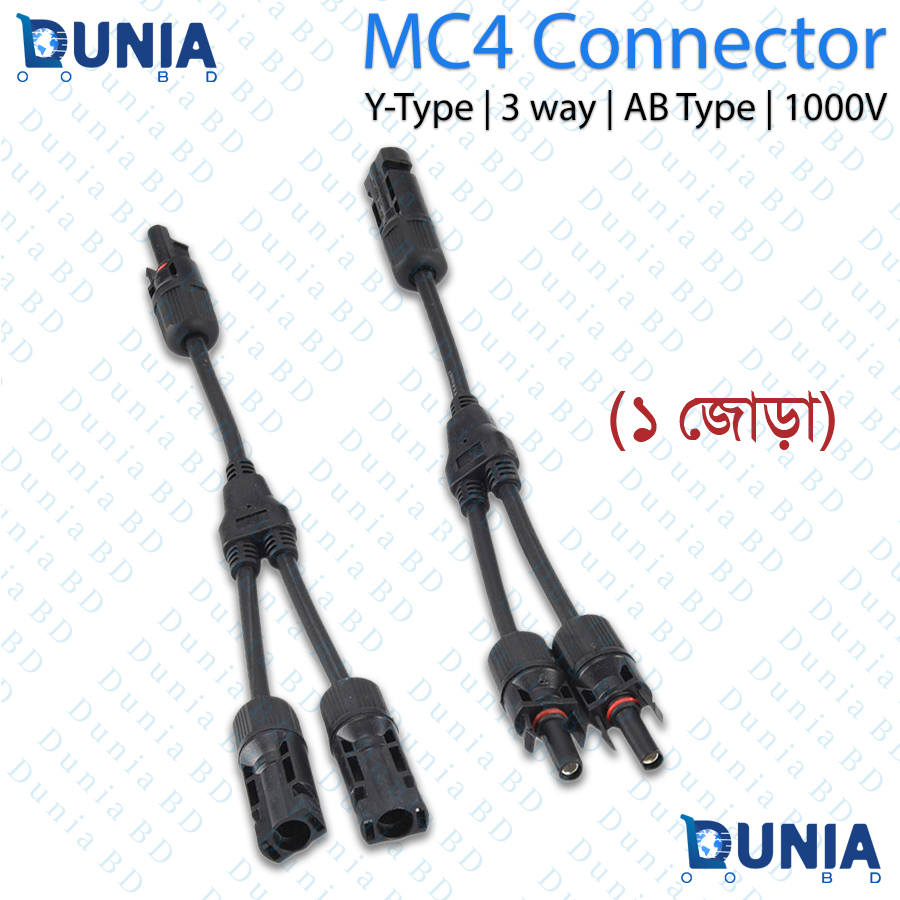

3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar Panel

Specifications

• 3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar
• Panel Connector Type: Y-Type / 3 Way (AB Type)
• Rated Voltage: 1000V DC
• Application: Parallel Connection of Solar Panels

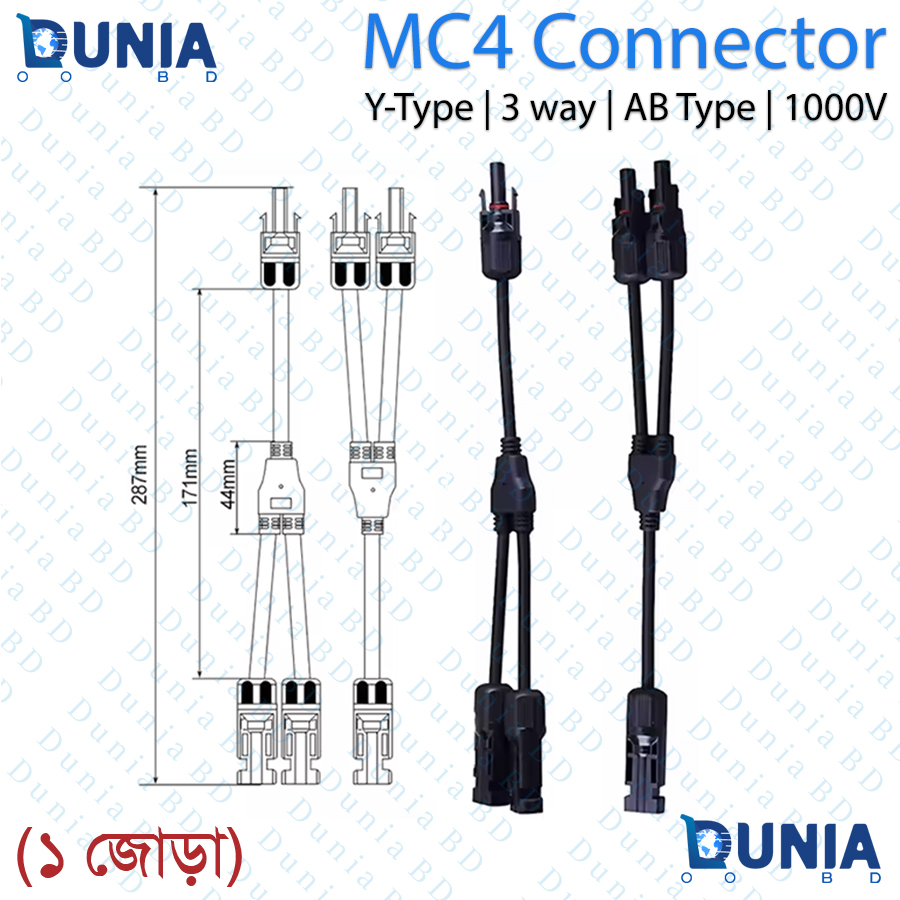

• Total Length: 287mm
• Branch Length: 171mm Junction
• Box Length: 44mm
• Quantity: 1 Pair (1 Male to 2 Female, 1 Female to 2 Male)
• Insulation Material: PPO / Weatherproof Heavy-Duty Plastic
• Waterproof Rating: IP67 Certified Operating Temperature: -40°C to +90°C

Features

• 3 Way Y-Branch Parallel Design: Allows quick and secure parallel connection of two solar panels into a single line without hassle.
• High Voltage Rating (1000V DC): Designed to support heavy-duty solar systems safely with minimum voltage drop.
• Precise Dimensional Build: Features an optimal 287mm total length with reinforced 44mm split junction housings.
• Durable & Weatherproof Construction: IP67 waterproof and UV-resistant material ensures long-lasting outdoor performance.
• Plug and Play Snap-Lock System: Easy connection and disconnection with secure locking mechanism for solar power systems.
• The 3 Way MC4 Y Branch Cable Connector AB Type 1000V is an essential component for efficiently wiring solar panel setups in parallel.
• Built with high-grade IP67 waterproof and UV-resistant materials, this Y-branch connector set guarantees high electrical conductivity, minimal power loss, and resistance against harsh environmental conditions such as rain, extreme heat, and dust.
• The package includes one pair of AB type connectors—one end splitting 1 male to 2 females and the other splitting 1 female to 2 males—ensuring seamless integration with standard solar cables and junction boxes.
• Measuring 287mm in overall length with sturdy cable branches, this connector set simplifies installation for residential, commercial, and off-grid solar energy systems in Bangladesh.

What is the price of 3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar Panel in Bangladesh?

The latest price of 3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar Panel in Bangladesh is Price: ৳590.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar Panel in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 3 Way MC4 Y Branch Cable Connector AB Type 1000V for Solar Panel From Dunia.com.bd . We have a few collections of latest Connector to purchase. Order Connector & Terminals Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is this MC4 Y connector used for?
   It connects two solar panels in parallel to increase current output.
2. What is the maximum rated voltage?
   This connector supports up to 1000V DC operating voltage.
3. Is this connector waterproof for outdoor use?
   Yes, it features an IP67 waterproof and dustproof protection rating.
4. What comes in one package?
   It includes one pair of AB type 3-way Y branch connectors.
5. What is the total length of the cable?
   The overall length of each branch connector is 287mm.
6. Does it require special tools to install?
   No, it features a standard plug-and-play snap-lock system.
7. Can it withstand high solar temperatures?
   Yes, it operates reliably between -40°C and +90°C ambient temperatures.
8. Is it compatible with standard solar cables?
   Yes, it fits standard solar cable sizes and MC4 ports.
9. Why use parallel connections for solar panels?
   Parallel connections maintain system voltage while combining overall current output.
10. Are these connectors durable for long-term outdoor use?
    Yes, they are made from UV-resistant heavy-duty PPO insulation material.
