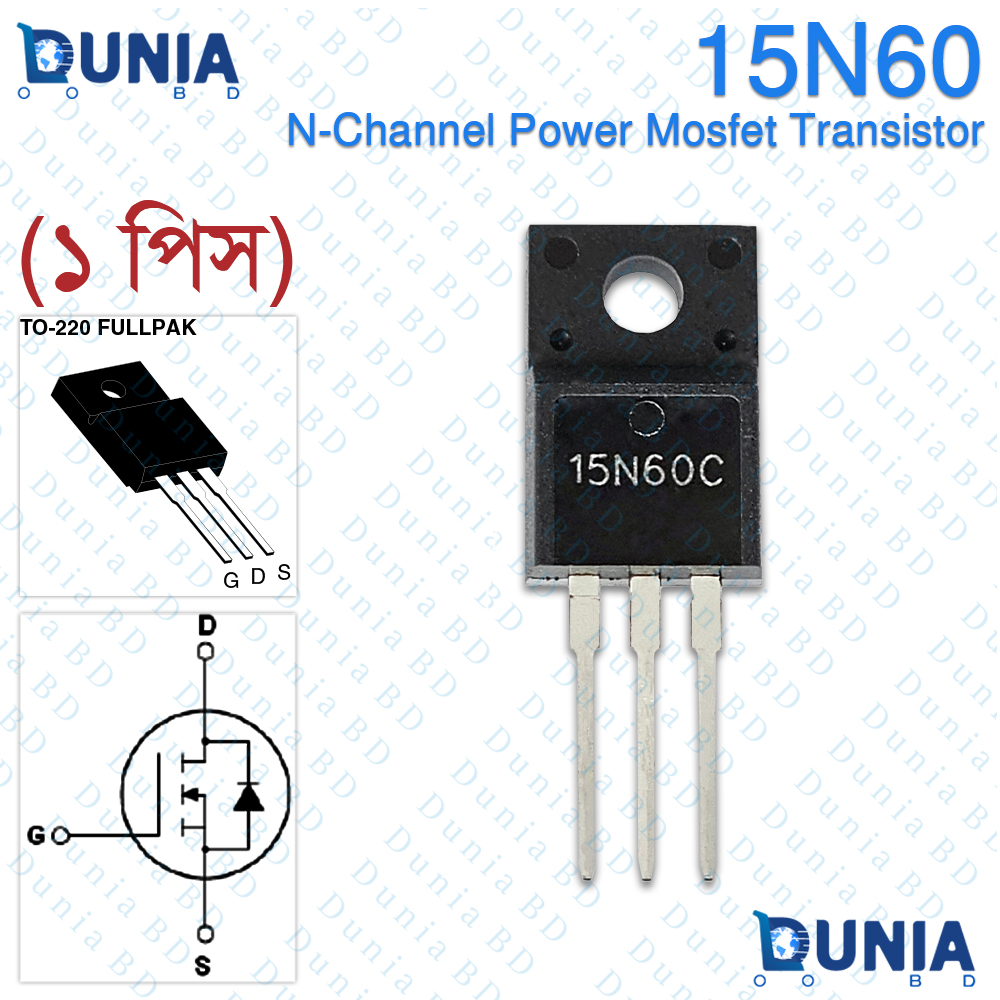

15N60 N-Channel Power MOSFET Transistor TO-220 FullPak

Specifications

• 15N60 N-Channel Power MOSFET Transistor TO-220 FullPak for high efficiency power switching applications.
• Transistor Type: N-Channel Power MOSFET.
• Drain-Source Voltage (VDS): 600V high breakdown voltage.
• Continuous Drain Current (ID): 15A continuous current handling.
• Package Type: TO-220 FULLPAK fully insulated plastic package.
• Pin Layout: Standard 3-pin configuration consisting of Gate (G), Drain (D), and Source (S).
• On-State Resistance (RDS(on)): Low conduction resistance for minimized energy loss.
• Thermal Insulation: Plastic molded body eliminating the need for additional isolation mica washers.
• High Switching Speed: Fast turn-on and turn-off response time for high-frequency circuits.
• Application Use: Ideal for SMPS, power supplies, LED drivers, inverters, and motor control circuits.

Features

• Robust 600V voltage rating and 15A current capacity designed for heavy power electronics.
• Fully insulated TO-220 FullPak enclosure simplifies heatsink mounting without extra insulation pads.
• Low on-state resistance ensures reduced thermal generation and maximum circuit efficiency.
• High switching speed capability suitable for modern high-frequency power converters.

What is the price of 15N60 N-Channel Power MOSFET Transistor TO-220 FullPak in Bangladesh?

The latest price of 15N60 N-Channel Power MOSFET Transistor TO-220 FullPak in Bangladesh is Price: ৳42.50 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 15N60 N-Channel Power MOSFET Transistor TO-220 FullPak in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 15N60 N-Channel Power MOSFET Transistor TO-220 FullPak From Dunia.com.bd . We have a few collections of latest Transistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the drain-to-source breakdown voltage rating of 15N60?
   It features a maximum drain-to-source breakdown voltage rating of 600V.
2. What continuous current can this MOSFET handle safely?
   It supports a continuous drain current of up to 15A.
3. What package style is this 15N60 transistor built in?
   It comes in a fully insulated TO-220 FullPak package.
4. Does this FullPak package require an isolation washer on heatsinks?
   No, its fully plastic body provides internal electrical isolation.
5. What are the pin assignments for this MOSFET?
   From left to right, the pins are Gate (G), Drain (D), and Source (S).
6. What applications commonly use the 15N60 MOSFET?
   It is widely used in SMPS, power adapters, LED drivers, and inverters.
7. Is this an N-Channel or P-Channel MOSFET?
   The 15N60 is an N-Channel power MOSFET.
8. Does it offer fast switching performance?
   Yes, it provides high switching speeds ideal for high-frequency power circuits.
9. Can this component replace 15N60C power transistors?
   Yes, it is fully compatible with standard 15N60 and 15N60C specifications.
10. Where can I purchase this original MOSFET in Bangladesh?
    You can buy it online from Dunia BD or visit our physical warehouse.
