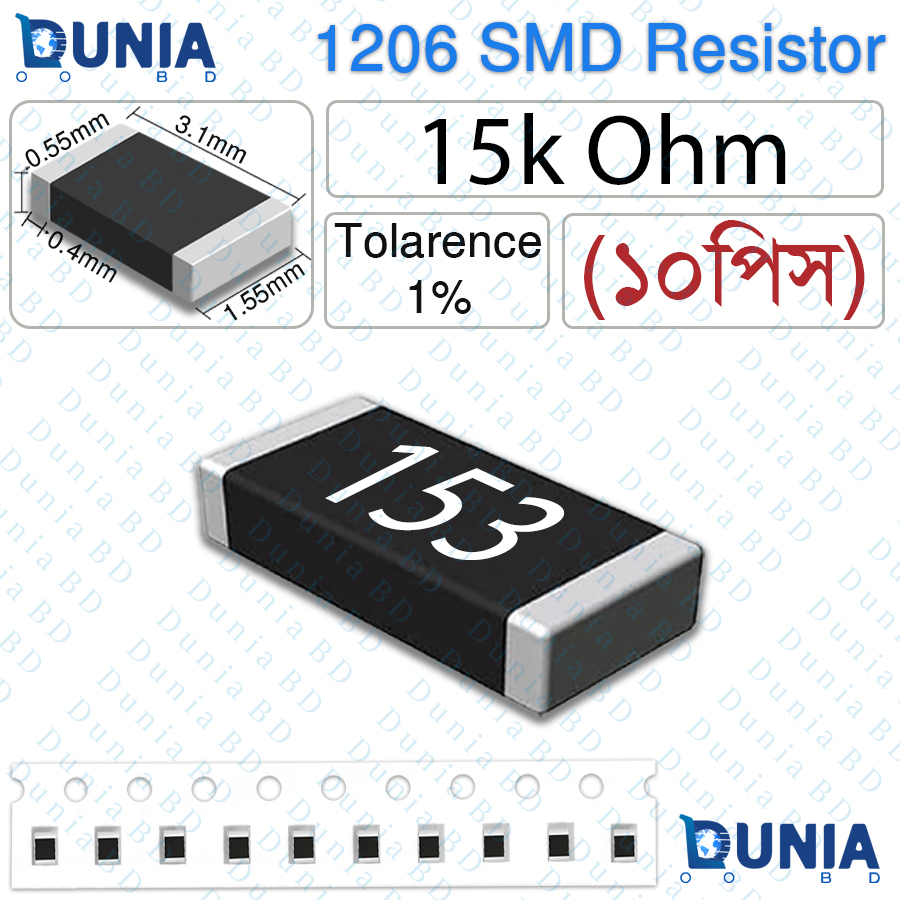

15K Ohm 153 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 15K Ohm 153 1206 SMD Resistor 1/4W
• Resistance: 15K Ohms (15000 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 15K Ohms (15000 Ohms, 153 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology – low noise, low drift and long-term reliability
• Compact SMD design suitable for dense PCB layouts
• Wide operating temperature: -55°C to +155°C
• RoHS compliant and lead-free
• Good solderability and consistent performance
• The 15K Ohm 153 1206 SMD Resistor is a very useful mid-to-high resistance value commonly selected when a stronger pull-up or more specific voltage division ratio is needed compared to 10K. With 15,000 ohms resistance and tight ±1% tolerance, it performs excellently in voltage divider circuits (especially for analog sensors or ADC reference scaling), pull-up/pull-down networks for higher impedance inputs, op-amp feedback/gain setting, RC timing circuits, current limiting in low-power LEDs or sensors, and many general-purpose analog and mixed-signal applications.Rated at 1/4W (0.25W) power dissipation, it maintains stable operation with negligible self-heating in most typical uses.
• The 1206 package remains extremely popular due to its balance of size, power capability, and ease of soldering – both in automated production lines and during hand assembly, prototyping or repair. Frequently used in consumer electronics, industrial sensors, audio equipment, battery management systems, IoT modules, Arduino, Raspberry Pi, ESP32 projects, and professional PCB designs.
• Manufactured with thick film technology, this resistor offers low temperature coefficient drift, very low excess noise, and strong long-term reliability. The “153” marking follows the standard 3-digit SMD code: 15 × 10³ = 15,000 Ohms. RoHS compliant and fully compatible with lead-free reflow soldering processes.
• Great choice for engineers, makers, repair technicians and production runs—this 15KΩ 1% 1206 SMD resistor provides accurate, dependable performance at a very reasonable cost. Available in bulk reels or small packs.

What is the price of 15K Ohm 153 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 15K Ohm 153 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 15K Ohm 153 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 15K Ohm 153 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does 153 mean on this 1206 SMD resistor?
   153 = 15 × 10³ = 15,000 Ohms = 15KΩ
2. What is the power rating?
   1/4W (0.25 watts)
3. Is it ±1% tolerance?
   Yes, precision ±1% version (much tighter than 5%)
4. What are the dimensions?
   Approximately 3.2 mm × 1.6 mm × 0.55 mm
5. Suitable for high-temperature use?
   Yes – operating range typically -55°C to +155°C
6. When is 15K preferred over 10K?
   When you need a higher resistance pull-up (less current draw) or a different voltage division ratio in sensor/ADC applications
7. What technology is used?
   Thick film – good precision at low cost
8. How to solder 1206 resistors?
   Reflow oven or hot-air station ideal; fine-tip iron for hand soldering
9. Why 1206 over smaller packages?
   Higher power handling (0.25W) and easier manual soldering/inspection
10. Where to buy bulk 15K 1206 1% resistors?
    DigiKey, Mouser, LCSC, Element14, Tayda, or local electronics suppliers
