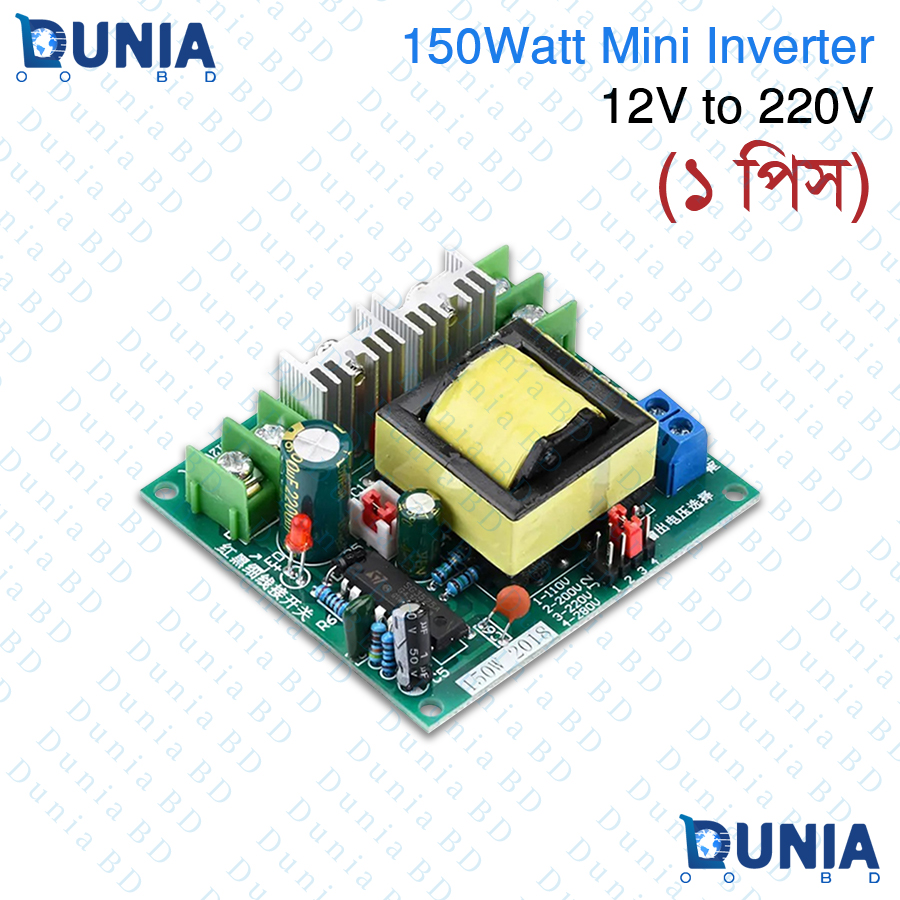

150W Mini Inverter Board 12V DC to 220V AC Step Up Module

Specifications

• 150W Mini Inverter Board 12V DC to 220V AC Step Up Module 1Pack is the primary system component.
• Product Type: DC-to-AC/DC Step Up Inverter Circuit Module
• Power Rating: 150 Watt maximum capacity rating
• Input Voltage: DC 12V steady state power input
• Output Voltage Options: Multi-tap selectable outputs including 110V, 200V, 220V, and 280V
• Output Configurations: High voltage DC outlet along with high voltage and high frequency AC outlet
• Board Dimensions: Length 66mm, Width 61mm, Height 30mm compact design
• Package Includes: 1 piece 150W boost inverter board module

Features

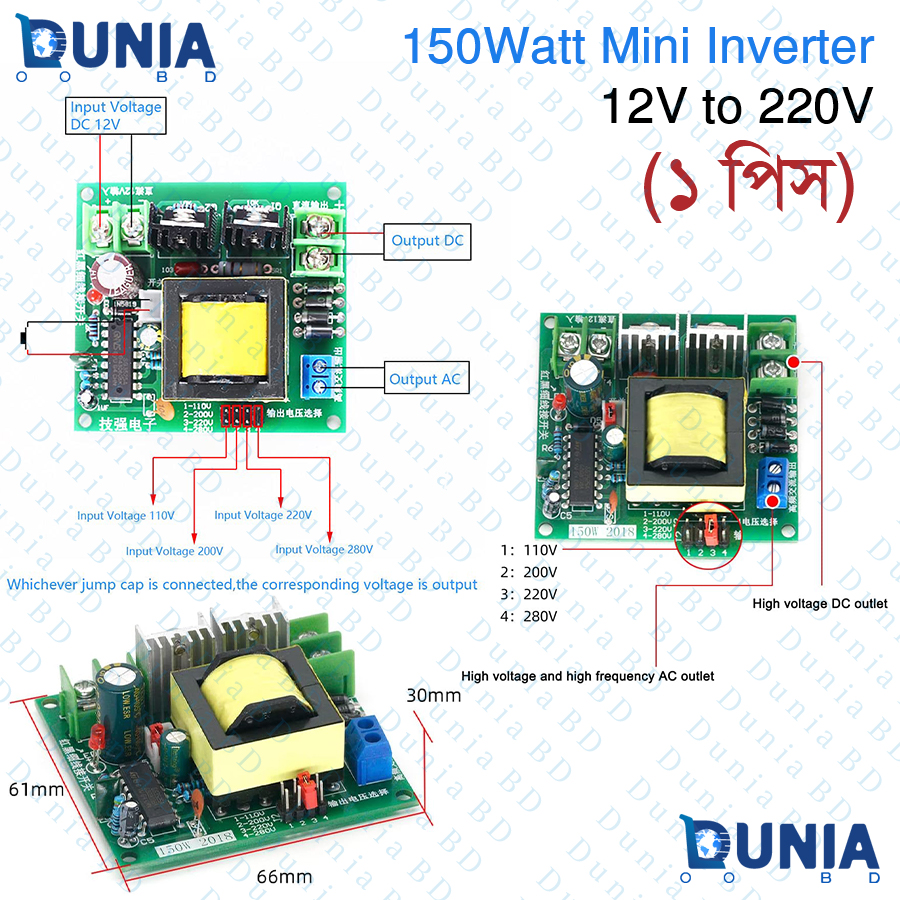

• Multi-voltage jumper configuration allows fast selection between 110V, 200V, 220V, or 280V output.
• Dual-output structure delivers both high-voltage DC and high-frequency AC options simultaneously.
• Equipped with heavy-duty aluminum heatsinks to manage thermal dissipation effectively under load.
• Compact 66mm by 61mm footprint enables easy fitting inside smaller DIY utility boxes.
• The 150W Mini Inverter Board 12V DC to 220V AC Step Up Module 1Pack is a highly versatile and ultra-compact power conversion solution engineered for emergency lighting, DIY electronics projects, and outdoor field power setups.
• Driven by a robust high-frequency step-up transformer system, this efficient module steps up a standard 12V DC battery input into a powerful household-level output.
• A convenient onboard jumper cap matrix allows users to adjust output potentials across four distinct levels: 110V, 200V, 220V, and 280V.
• Featuring dedicated terminals for both high-voltage DC and high-frequency AC outputs, this board is ideal for running energy-saving lamps, non-inductive electronic equipment, or custom backup power banks.
• It includes onboard screw terminal blocks for secure, solderless input/output connections and dual heatsinks for stable thermal performance during extended operations.

What is the price of 150W Mini Inverter Board 12V DC to 220V AC Step Up Module 1Pack in Bangladesh?

The latest price of 150W Mini Inverter Board 12V DC to 220V AC Step Up Module in Bangladesh is Price: ৳635.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 150W Mini Inverter Board 12V DC to 220V AC Step Up Module 1Pack in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 150W Mini Inverter Board 12V DC to 220V AC Step Up Module 1Pack From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the maximum wattage rating of this inverter?
   It delivers a maximum power output of 150 Watts.
2. What input voltage does it require?
   It runs on a standard DC 12V battery input.
3. What are the selectable output voltages?
   You can select 110V, 200V, 220V, or 280V outputs.
4. What are the exact dimensions of this board?
   The physical dimensions are 66mm length, 61mm width, and 30mm height.
5. Does it provide both AC and DC output options?
   Yes, it features both high-voltage DC and high-frequency AC terminals.
6. How do you adjust the output voltage?
   It is easily adjusted by changing the onboard jumper cap position.
7. How many inverter boards come in this package?
   The package contains exactly 1 piece mini inverter board.
8. Is it suitable for running heavy inductive loads like motors?
   No, it is optimized for resistive or electronic loads like lamps.
