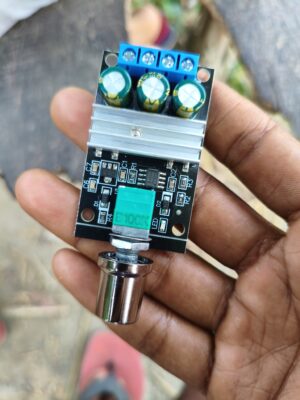

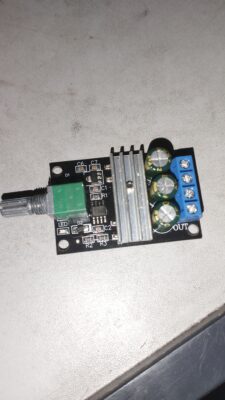

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Controller Regulator

Product Specification

• Height (mm): 15
• Weight (gm): 25
• Shipment Weight: 0.03 kg
• Shipment Dimensions: 6 x 5 x 3 cm
• Width (mm): 32
• Length (mm): 65
• Operating Voltage range: DC6V – 28V
• Operating Current Range: Within 3A
• Speed range: 0-100%

Product Description

• This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.
  Application:
• This PWM Speed controller is for DC 6V 12V 24V 28V Motor.
• Pinouts:
• Motor+: Motor Positive Terminal
• Motor-: Motor Negative terminal
• Power+: DC 6V – 28V
• Power-: Gnd
• Note: Product Image May vary in terms of front knob or connector colour according to the availability
  Features:
• Speed of a motor is fully adjustable
• DC 6V 12V 24V 28V Supported

DC 6V – 28V 3A PWM Motor Speed Variable Regulator Controller Switch

This DC Motor   Speed Controller allows controlling the direction of a DC motor using a   Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully   adjustable from 0%-100%. The motor speed controller can easily provide a continuous current of3A to your DC motor or other DC load.

Main technical parameters:

• Input supply voltage:6V-28VDC
• The maximum output power: 80W
• The maximum continuous output current :3A
• Duty Cycle adjustable:5%-100%
• Board Dimensions : L= 50mm, W=32mm, H=16mm

Operating instruction:

• Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
• Connect a voltage of 6V-28VDC to the circuit making sure of the   correct polarity of the connection. Note that the voltage applied to the   motor will be supply voltage applied to the circuit. It is recommended   to add an appropriately rated fuse inline with the positive supply in   order to protect the circuit from any possible short circuits.
• You can now control the speed of the motor through potentiometer.
