Specification:
Features:
| Applications:
|

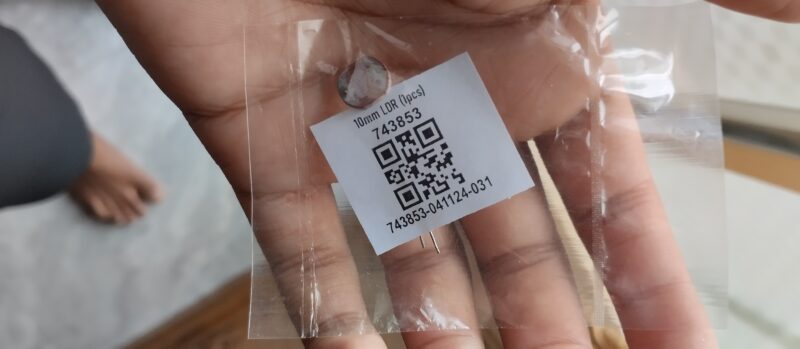

A photo-resistor or light dependent resistor is a component that is sensitive to light. When light falls upon it then the resistance changes. Values of the resistance of the LDR may change over many orders of magnitude the value of the resistance falling as the level of light increases. It is not uncommon for the values of resistance of an LDR or photo-resistor to be several Mega-ohms in darkness and then to fall to a few hundred ohms in bright light. With such a wide variation in resistance, LDRs are easy to use and there are many LDR circuits available.
Here the LDR and R1 form a simple ‘Potential Divider’ circuit. When the light level decreases, the resistance of the LDR increases. When the resistance increases w.r.t to the other resistor having fixed resistance, the voltage drop across LDR increases.
