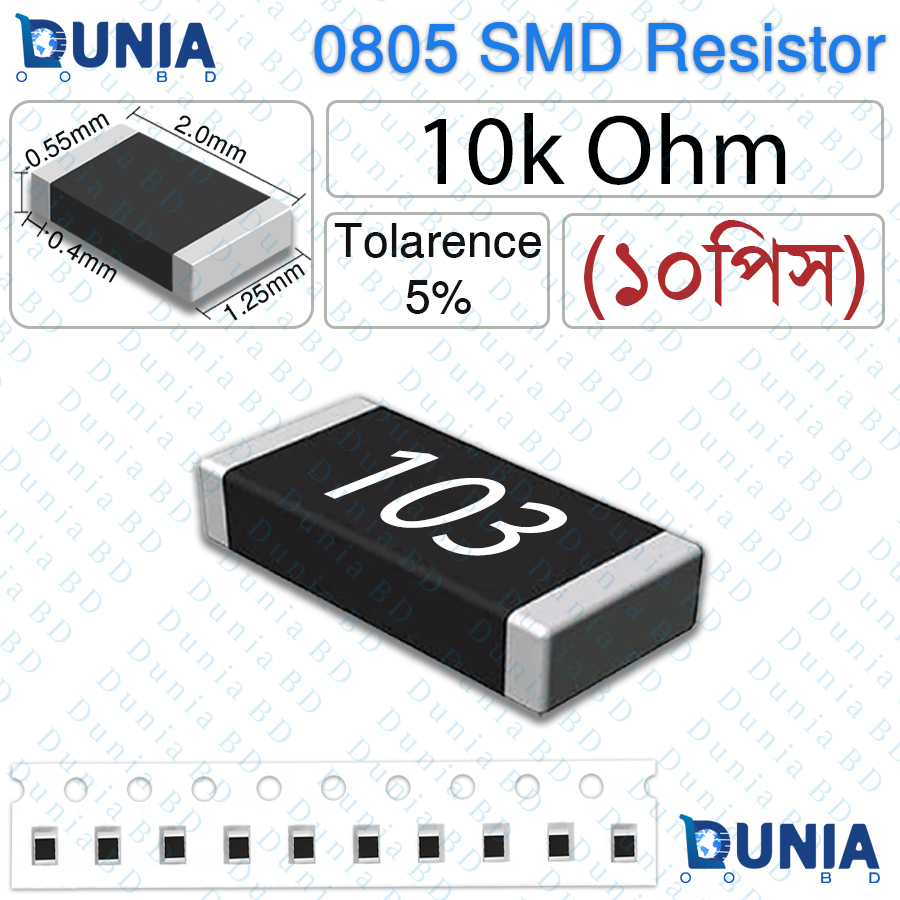

10K Ohm 103 0805 SMD Resistor 1/8W ±5% Tolerance Classic 10K Chip Resistor for PullUp and Voltage Dividers

Specifications

• 10K Ohm 103 0805 SMD Resistor 1/8W
• Resistance Value: 10K Ohm (103)
• Package Size: 0805 (2012 Metric)
• Power Rating: 1/8W (0.125W)
• Tolerance: ±5%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 150V
• Dimensions (L x W x H): 2.0 mm × 1.25 mm × 0.50 mm
• RoHS Compliant: Yes

Features

• Industry-standard 0805 package for universal compatibility
• ±5% tolerance for reliable 10K performance
• 1/8W power rating ideal for most low-power applications
• Thick film technology for excellent stability and low noise
• Wide temperature range for versatile use
• RoHS compliant and lead-free
• Perfect solderability in production and prototypes
• The 10K Ohm (103) 0805 SMD Resistor is one of the most universally used resistor values in electronics, known for its perfect balance in pull-up/pull-down and voltage division tasks. With ±5% tolerance and 1/8W power rating, it is the standard choice for pull-up/pull-down resistors in microcontroller GPIO pins, digital logic interfaces, I2C/SPI buses, and open-drain configurations, voltage dividers for analog sensor scaling, ADC input protection, reference voltage generation, and signal conditioning, current limiting in low-power LED indicators or series chains, and general-purpose biasing in op-amp, transistor, or instrumentation circuits.
• Thick film technology provides low temperature coefficient, minimal drift over time, low noise, and strong resistance to humidity, thermal cycling, and aging, ensuring dependable performance in microcontroller projects, sensor modules, audio equipment, battery management systems, industrial controls, and consumer electronics.
• The 0805 footprint combines compactness with excellent thermal dissipation and soldering reliability, supporting high-density boards in automated production and hand prototyping.
• Fully RoHS compliant and manufactured to tight quality standards, this resistor is an indispensable, cost-effective staple that delivers consistent, universal performance across countless electronic designs.

What is the price of 10K Ohm 103 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh?

The latest price of 10K Ohm 103 0805 SMD Resistor 1/8W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 10K Ohm 103 0805 SMD Resistor 1/8W ±5% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 10K Ohm 103 0805 SMD Resistor 1/8W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 10K Ohms (10,000 Ohms), marked as 103.
2. What package is it?
   Standard 0805 SMD (2012 Metric).
3. Power rating?
   1/8W (0.125W).
4. Tolerance?
   ±5%.
5. Maximum voltage?
   150V.
6. Temperature range?
   -55°C to +155°C.
7. Soldering method?
   Reflow/hand supported.
8. RoHS?
   Yes, compliant.
9. Marking?
   “103”.
10. Common applications?
    MCU/digital pull-up/pull-down, analog/sensor voltage dividers, low-power LED limiting, general biasing networks.
