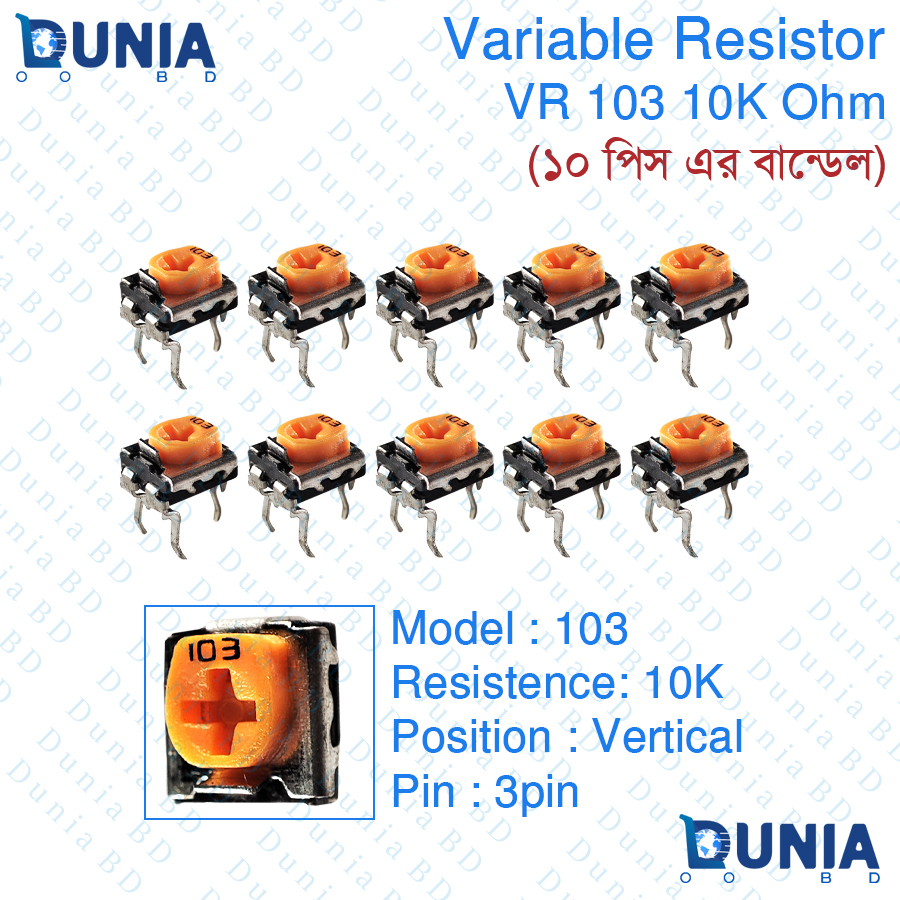

103 10K ohm Variable Resistor Trimpot Trimmer Vertical Potentiometer VR
৳ 53.00
Electrical Characteristics
- Model : 103
- Color : Black
- Standard Resistance Range: 10K Ω
- Resistance Tolerance: ±20% std.
- Adjustment Angle: 240° ±20°
- Residual Resistance: 2%
Environmental Characteristics
- Power Rating: (100V max)0.3W@70ºC
- Temperature Range: -30ºC to +85ºC
- Temperature Coefficient: ±250ppm/ºC
- Rotational Life: 200Cycles,△R≤±10%
- Endurance:0.3W@70ºC,500H,△R≤10%
Search Box (All Fields Optional)
Showing 1 - 11 out of 11
Page 1 out of 1
| Products | Price |
|---|---|
৳ 30.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 30.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 53.00 | |
৳ 53.00 |
| Weight | 0-5 g |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
