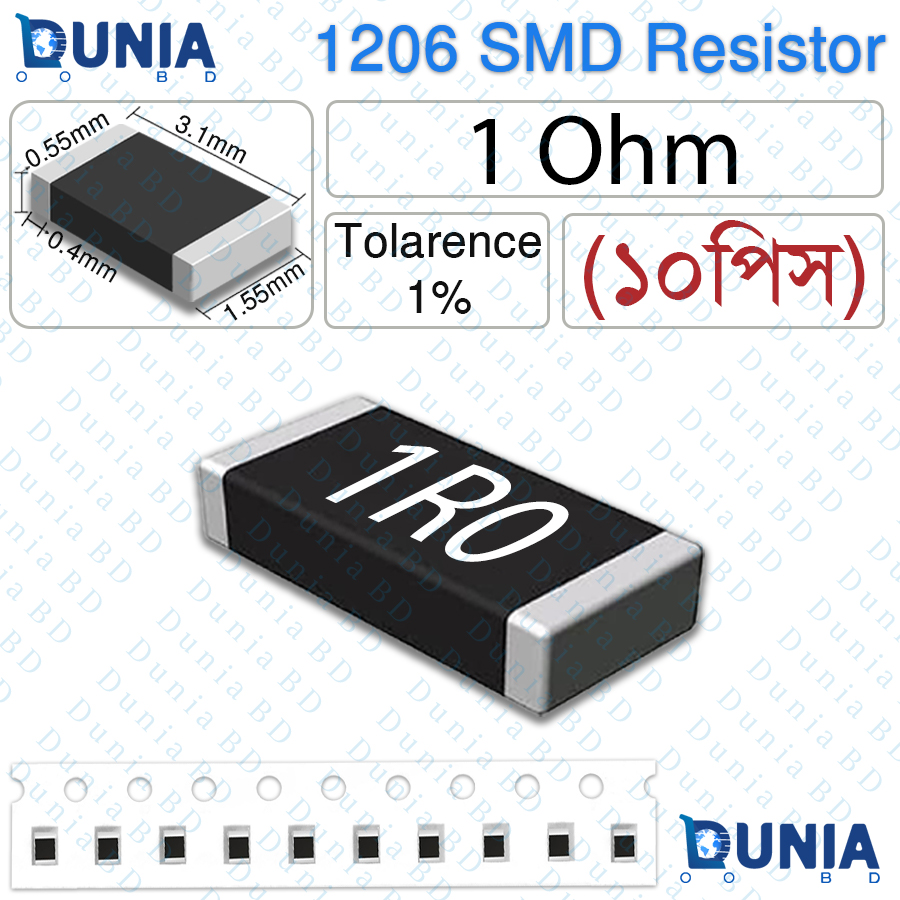

1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance Precision Low-Value Current Sense Chip Resistor

Specifications

• 1 Ohm 1R0 1206 SMD Resistor 1/4W
• Resistance Value: 1 Ohm (1R0)
• Package Size: 1206 (3216 Metric)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1%
• Technology: Thick Film
• Operating Temperature Range: -55°C to +155°C
• Maximum Working Voltage: 200V
• Dimensions (L x W x H): 3.2 mm × 1.6 mm × 0.55 mm
• RoHS Compliant: Yes

Features

• 1206 package offers higher power handling than 0805 while remaining compact
• ±1% tolerance for high accuracy in low-resistance measurement applications
• 1/4W (0.25W) power rating suitable for moderate current sensing and limiting
• Thick film technology provides low TCR and good pulse/surge capability
• Wide operating temperature range (-55°C to +155°C)
• RoHS compliant and lead-free production
• Excellent solderability and thermal performance for reflow assembly
• The 1 Ohm (1R0) 1206 SMD Resistor is a precision low-value resistor engineered for accurate current measurement and control in modern electronic designs. With tight ±1% tolerance and 1/4W power rating, it excels as a current-sense/shunt resistor in power management circuits, battery charging systems, motor drivers, LED drivers, DC-DC converters, over-current protection, and any application requiring precise current monitoring with minimal voltage drop. It is also widely used for current limiting in LED strings, low-resistance dropping in power supplies, and general low-ohm applications where accuracy and stability are critical.
• Thick film technology ensures low temperature coefficient of resistance (TCR), excellent pulse handling, low inductance, minimal self-heating drift, and strong long-term stability against humidity, thermal cycling, and aging effects—providing dependable performance in power electronics, automotive modules, industrial controls, consumer devices, and IoT/sensor nodes.
• The larger 1206 footprint (compared to 0805) delivers improved power dissipation and thermal performance while remaining compact enough for dense PCB layouts, making it suitable for both automated high-volume SMT production and manual assembly/repair.
• Fully RoHS compliant and manufactured under strict quality controls, this resistor is a trusted, high-accuracy low-value component that engineers rely on for precise current sensing and reliable operation in demanding low-resistance applications.

What is the price of 1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 1 Ohm 1R0 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 1 Ohm 1R0 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 1 Ohm 1R0 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the resistance value?
   Exactly 1 Ohm, marked as 1R0.
2. What package size is it?
   Standard 1206 SMD (3216 Metric).
3. How much power can it handle?
   Up to 1/4W (0.25W).
4. What is the tolerance?
   ±1% for high precision.
5. What is the maximum working voltage?
   200V.
6. What temperature range does it support?
   -55°C to +155°C.
7. Is reflow soldering supported?
   Yes, fully compatible with standard SMT reflow processes.
8. Is it RoHS compliant?
   Yes, lead-free and meets RoHS standards.
9. How is the value marked?
   Typically marked “1R0”.
10. What are the primary applications?
    Current sensing/shunt, LED current limiting, power monitoring, battery management, over-current protection, low-resistance dropping.
