XH-M601 battery charge control module circuit board 12V intelligent charging power supply panel automatic charging/stop switch

Product Introduction:

1. Name:12V charger power control board
2. Model :XH-M601
3. Power Supply Voltage: 13. 8-14. 8V
4. Relay Operating Voltage: 12. 4V
5. Relay Disconnect Voltage: 14. 8V
6. Voltage Tolerance: +/-0. 1V
7. Voltage Detection Way: DC voltmeter
8. Charging Type:12V storage battery
9. Potentiometer Adjustment:RP1 RP2

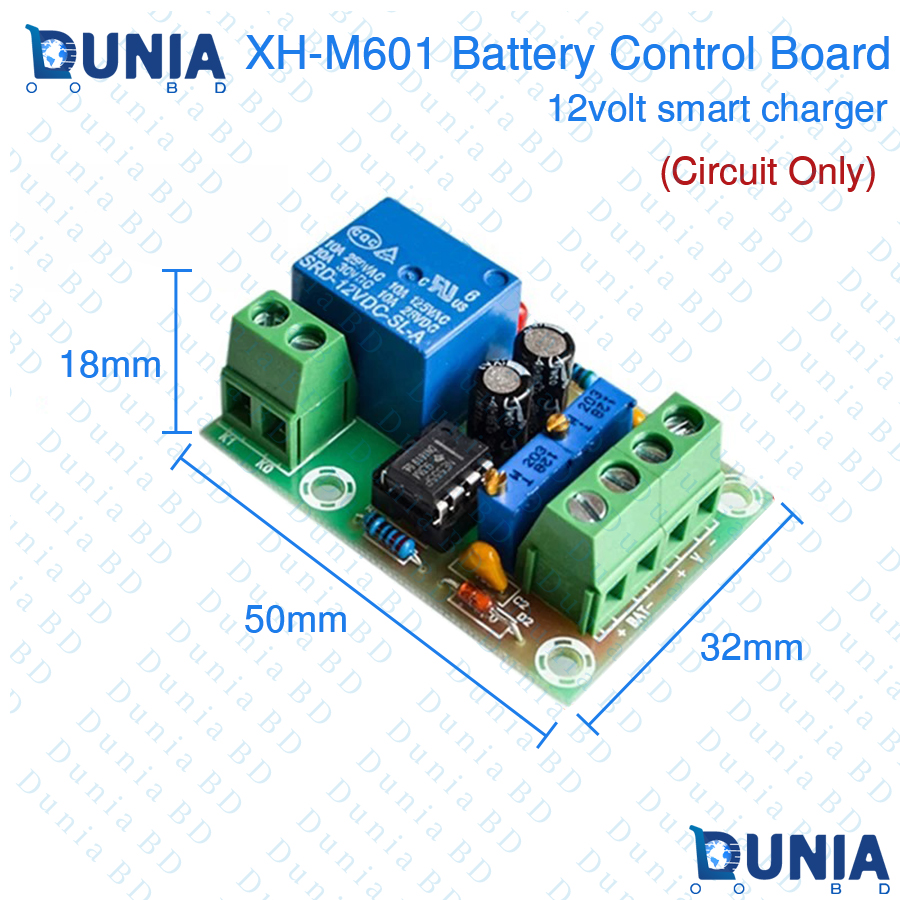

10. Size:50*32*18mm

How the M601 works?

The diagram on the right shows the circuit board wiring diagram. The relay automatically closes and breaks the circuit through the fire wire. RP1 and RP2 regulation will affect the working voltage of the relay opening and closing, the charging O i Switch board is supplied by the battery, and the voltmeter Switch plays a detection role (pay attention to the connection of the positive and negative terminals and the live wire during the wiring process). The battery detects high and low levels through the protection board for automatic management charging. When the battery voltage drops to about 12. 4V (adjustable low voltage), the protection board will automatically charge in the secondary, and the shutdown voltage is about 14. 8V(adjustable cut-off voltage). The red light is on when charging, the red light is off when full, and the relay is disconnected. 220V input end disconnected charging, thus playing a charge protection and energy saving effect, safety and worry

About the potentiometer

RP1 – Adjust the starting charging voltage of the battery, (low voltage setting: clockwise high, counterclockwise low) the factory value is 12. 4V

RP2 – Adjust the battery disconnect charging voltage, (low voltage setting: clockwise high, counterclockwise low) the factory value is 14. 8v

Note: Please adjust the potentiometer carefully

Friendly reminder: The use of voltmeter in the charging process is an indispensable link, through the voltmeter can monitor the voltage change in the charging process in real time, intuitive and clear.

Precise adjustment method:

When the voltage of the second pin (trig) of the chip is less than ½ of the voltage of the fifth pin (cont), the relay is on.

When the voltage of the sixth pin (thres) of the chip is greater than the voltage of the fifth pin, the relay is turned off.

For example, when the battery voltage is lower than 11V, turn it on, and when the battery voltage is greater than 13V, follow the following four steps:

• Firstly11V voltage is input into bat and the voltage of the fifth pin (cont) of the chip is measured to be 5.08v.
• Measure the voltage of the second chip pin (trig) adjust RP1, and adjust the voltage of the second chip pin (trig) to 1/2 of the voltage of the fifth chip pin (cont) ,i.e.2.54v
• Input 13V voltage into bat, and the voltage of the fifth pin (cont) of the chip is measured to be 5.08v
• Measure the voltage of the sixth pin (thres) of the chip, adjust RP2, and adjust the voltage of the sixth pin (thres) of the chip to 5.08v After completing the above steps, it can be used normally.
