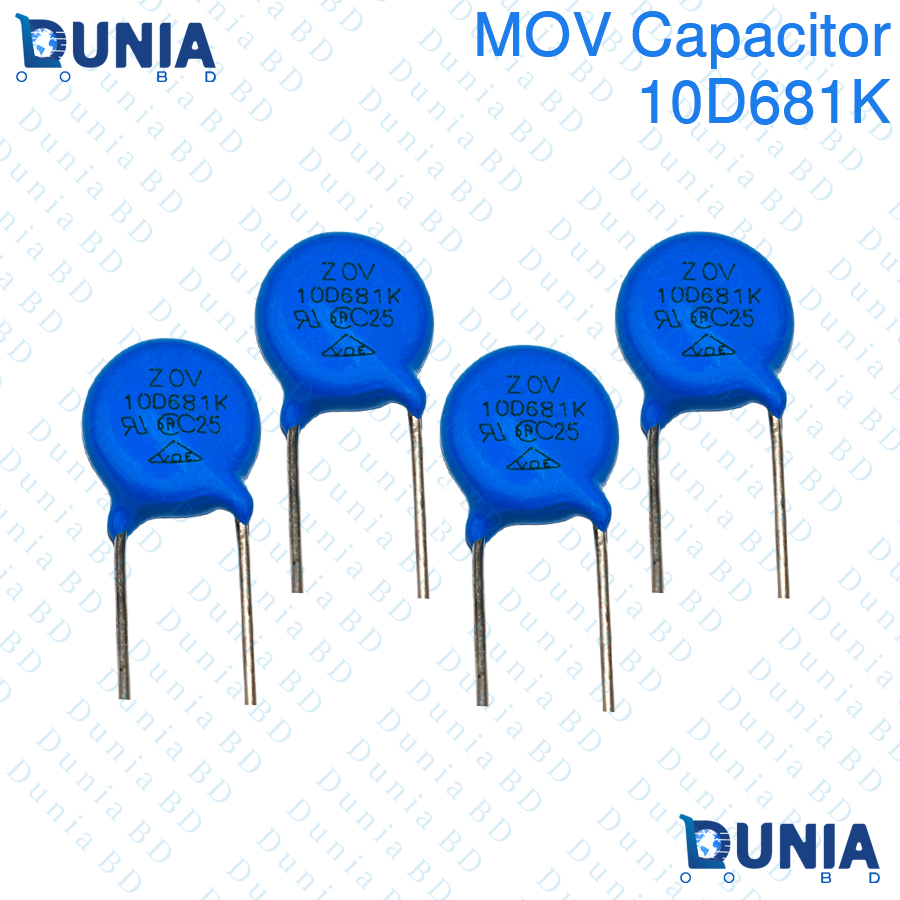

MOV Capacitor ZOV 10D681k Metal Oxide Varistor

• Model Number : 10d681k
• Color : Blue
• D/C Varistor : 10d681k
• Rated Power : ~90 Joules to 120 Joules (8/20μs waveform, 1 pulse), ZOV brand = ~95J, TDK বা Bourns brand = ~110-120J
• Resistance Tolerance : ±10%
• Temperature Coefficient : Temperature Coefficient: Not Applicable / Not Specified / 250ppm
• Type : Varistor
• Insulation Resistance: ≥ 100MΩ (at 500V DC)
• Standby Resistance (at rated voltage): ≥ 1GΩ
• Conductive Resistance (during clamping): ≪ 10Ω
• Technology : Zinc Oxide (ZnO) Metal Oxide Varistor
• Application : PCB board
• Media Available : datasheet, Photo
• Operating Temperature: -40°C to +85°C (standard),
• Storage Temperature: -55°C to +125°C
• Brand : zov varistor
• Circuit Type : Parallel (across line-to-line or line-to-ground)
• Max. peak current : 8/20s times 2T  1250
• Max. peak current : 8/20s times 1T  2500
• Clamping Voltage : 1120
• Max Allowable : Voltage AC  420
• Varistor : Voltage  680(612~748)
• Application : Power Supply
• Color : Blue

• Transistor, diode, IC, thyristor or triac semiconductor protection.
• Surge protection in consumer electronics.
• Surge protection in industrial electronics.
• Surge protection in electronic home appliances, gas and petroleum appliances.
• Relay and electromagnetic valve surge absorption.

Features

• Wide operating voltage (V1mA) range from 8V to 1800V.
• Fast responding to transient over-voltage.
• Large absorbing transient energy capability.
• Low clamping ratio and no following-on current.

General Characteristics

• No Radioactive Material
• Storage Temperature: -55ºC to +125ºC
• Operating Temperature: -55ºC to +85ºC
• Body: Nickel Plated
• Leads: Radial Through-Hole
• Axial Devices: Tin Plated
• Lead Material: Tinned Copper Wire
• Terminal Plating: Nickel or Tin Plated (varies by brand)
