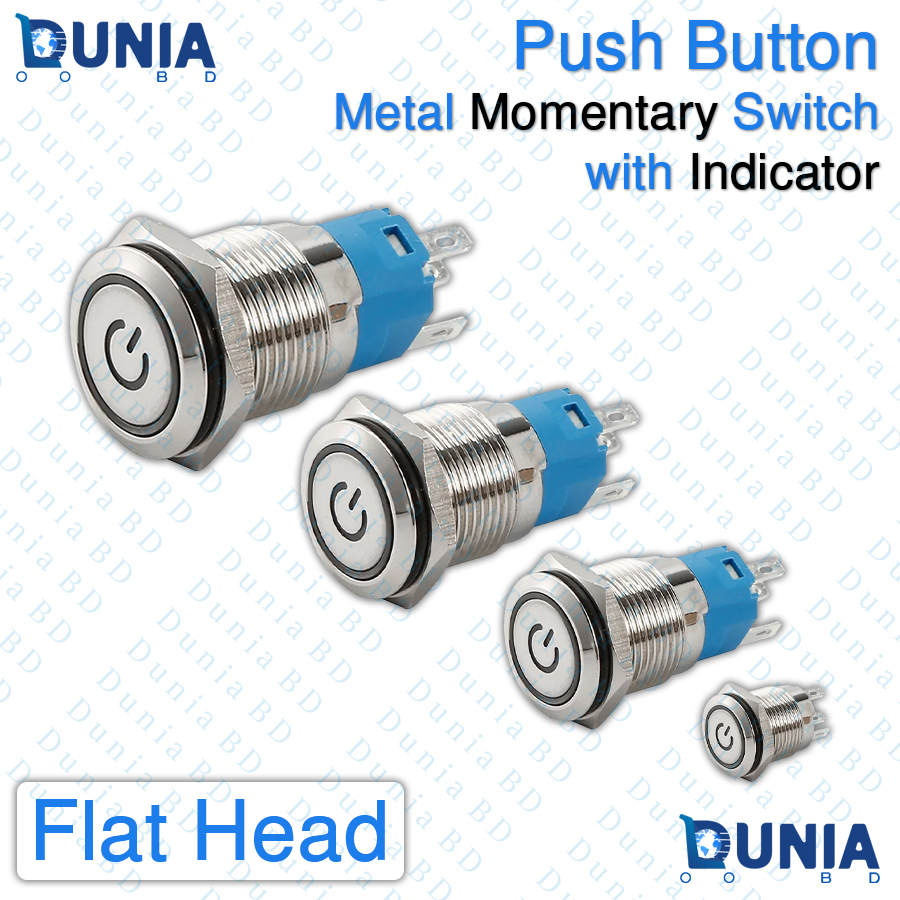

12mm 16mm 19mm Metal Momentary Push Button Switch with LED Indicator Waterproof Power Symbol

Specifications

• Metal momentary push button switch
• Mounting Hole Diameter: 12mm / 16mm / 19mm (select variation)
• Operation Type: Momentary (push to activate, release to off)
• Head Shape: Flat round with power symbol
• LED Type: Blue ring illumination
• LED Voltage: 12V DC
• Switch Rating: 5A / 250V AC
• Contact Configuration: 1NO (normally open) + LED pins
• Material: Stainless steel body
• Waterproof Rating: IP67
• Mechanical Life: 500,000 cycles
• Operating Temperature: -20°C to +55°C
• Terminal Type: Screw or pin terminals

Features

• Premium stainless steel construction for durability and anti-vandal protection
• Momentary action: Activates only while pressed, ideal for safe control
• Built-in blue LED ring indicator with power symbol for clear status visibility
• Waterproof IP67 rating – suitable for outdoor, marine, and wet environments
• Available in three mounting sizes: 12mm, 16mm, and 19mm
• Flat head design with easy panel mounting
• Supports 12V DC LED operation (independent wiring for LED)
• High current rating up to 5A for reliable performance
• Elevate your projects with our premium Metal Momentary Push Button Switch featuring a built-in LED indicator and iconic power symbol. Available in three versatile sizes – 12mm, 16mm, and 19mm mounting holes – this switch is perfect for custom panels, automotive modifications, DIY electronics, marine applications, and industrial controls in Bangladesh.
• Crafted from high-grade stainless steel, it offers exceptional durability and resistance to corrosion, making it an anti-vandal solution for demanding environments. The momentary action ensures safe operation: the circuit activates only when pressed and automatically releases when let go, preventing accidental prolonged activation.
• The bright blue LED ring illuminates the power symbol for instant visual feedback, enhancing usability in low-light conditions. Fully waterproof with an IP67 rating, this switch withstands dust, water splashes, and temporary immersion – ideal for outdoor or wet setups.
• Easy to install with threaded mounting and nut, it supports independent LED wiring for custom illumination effects. Whether you’re building a custom PC case, upgrading vehicle controls, or designing machinery panels, this versatile switch delivers reliable performance and a professional look.

What is the price of 12mm 16mm 19mm Metal Momentary Push Button Switch with LED Indicator Waterproof Power Symbol in Bangladesh?

The latest price of Metal Momentary Push Button Switch in Bangladesh is Price: ৳155.00 – ৳260.00Price range: ৳155.00 through ৳260.00 taka for 1Pcs Pushbutton Switch. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 12mm 16mm 19mm Metal Momentary Push Button Switch with LED Indicator Waterproof Power Symbol  in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Metal Momentary Push Button Switch From Dunia.com.bd . We have few collection of latest Push Button Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the difference between momentary and latching push button switches?
   Momentary switches activate only while pressed and release automatically, while latching switches stay on/off until pressed again.
2. Is this push button switch waterproof?
   Yes, it has an IP67 rating, protecting against dust and water immersion up to 1 meter for 30 minutes.
3. What voltage does the LED indicator require?
   The blue LED ring operates at 12V DC and can be wired independently from the switch contacts.
4. Can I use this switch for automotive or marine applications?
   Absolutely – its stainless steel build and IP67 waterproofing make it perfect for cars, boats, and outdoor use.
5. How many pins does this switch have?
   Typically 4-5 pins: 2 for switch contacts (1NO) and 2-3 for LED (with common ground).
6. What sizes are available?
   We offer 12mm, 16mm, and 19mm mounting hole diameters to fit various panel thicknesses.
7. Is the power symbol illuminated?
   Yes, the power symbol lights up with the blue LED ring when powered.
8. What is the maximum current rating?
   The switch handles up to 5A at 250V AC, suitable for most low to medium power applications.
9. Does it come with wiring or connectors?
   Basic models have pin/screw terminals; some include pre-wired sockets for easy installation.
10. Can this switch be used for high-vibration environments?
    Yes, the robust metal construction ensures reliability in vibrating conditions like vehicles or machinery.
