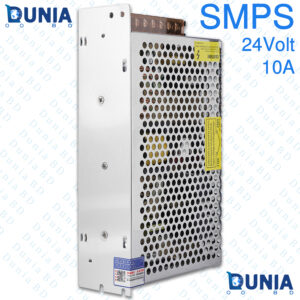

Name: Switching Mode Power Supply 100-240V Input to DC 24V 10A JC-240-10A AC - Dunia.com.BD
SKU: 113053
Price: 1510.00 BDT
Availability: InStock

DC Output	DC Voltage: 24V
	DC Current : 10A
	Ripple & Noise: 80MV
	DC Adjustable Range: ±10% Rated Voltage
	Voltage Tolerance: ±2.0%
	Line Regulation: ±0.5%
	Load Regulation: ±1%
	Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	AC Voltage Range: 85-264VAC
	Frequency Range: 47-63Hz
	Efficiency:>85%
	AC Current: 0.86/115V 0.4A/230V
	AC Inrush Current: 20A/115V 40A/230V
	Leakage Current< 0.5mA /240VAC
Protection	Over-load: 105%-150% hiccup mode,Auto-recovery
	Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
	Over-temp. : Shut down O/P voltage, Auto-recovery
Environment	Working temp.: -10~ +60C° (Refer to output load derating curve)
	Working Humidity:20 ~ 90% RH, non-condensing
	Storage Temp.: -10~ +60C°
	Storage Humidity: 10 ~ 95% RH
Safety	Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
	Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Safety standards: CE,RoHS,FCC,ISO9001

What is the price of Switching Mode Power Supply 100-240V Input to DC 24V 10A in Bangladesh?

The latest price of 24V 10A SMPS in Bangladesh is Price: ৳806.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Switching Mode Power Supply 100-240V Input to DC 24V 10A in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 24V 10A SMPS From Dunia.com.bd . We have few collection of latest Switching Power Supply to purchase. Order Power Supply & Distribution Online at our website Or Visit our warehouse to get your product at lowest price.

Weight

538 g

Dimensions

20 × 15 × 10 cm
