Specifications

• BNC male connector
• Connector Type: BNC Male
• Mounting Style: Screw-on with spring
• Cable Compatibility: RG59, RG6 (4-6mm diameter)
• Impedance: 75Ω
• Frequency Range: 0-1 GHz
• Body Material: Nickel-plated brass
• Center Pin: Gold-plated copper
• Insulator: PTFE (Teflon)

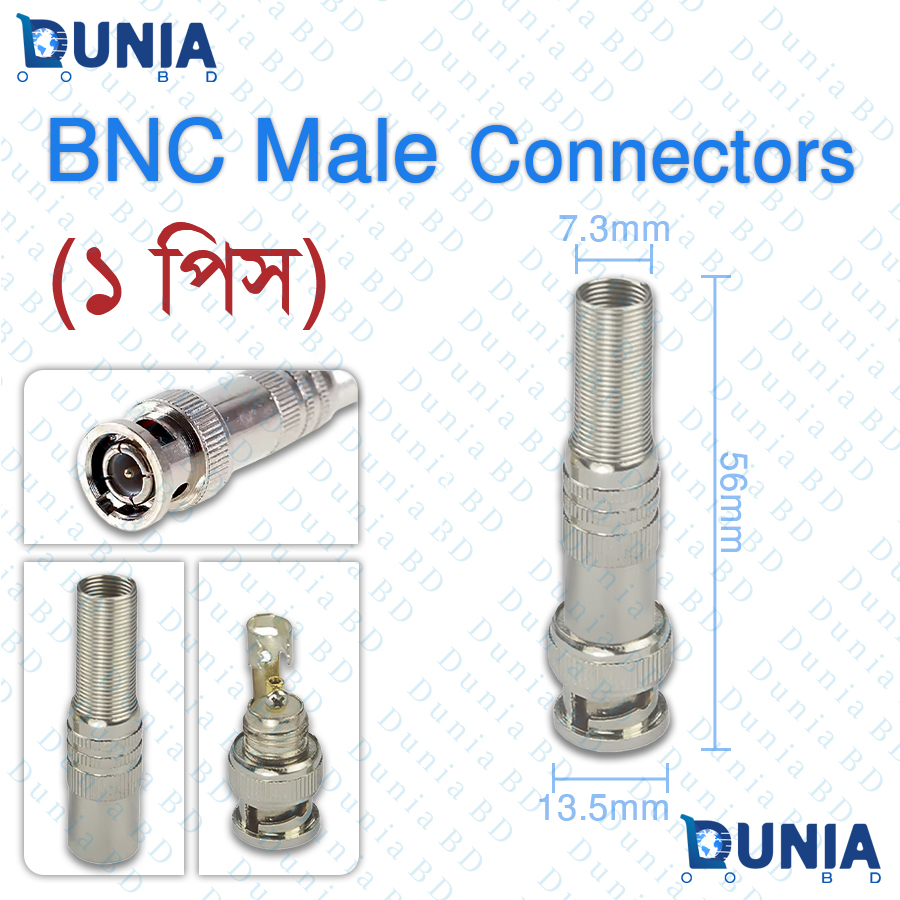

• Total Length: 56mm
• Barrel Diameter: 13.5mm
• Thread Length: 7.3mm
• Operating Temperature: -40°C to +85°C
• Contact Resistance: ≤5mΩ
• Insulation Resistance: ≥1000MΩ

Features

• Screw-type spring mechanism – no crimping tool needed
• Compatible with RG59 and RG6 coaxial cables
• Nickel-plated brass body for corrosion resistance
• 75Ω impedance – ideal for video signal transmission
• Secure twist-lock bayonet coupling
• Easy installation with included metal sleeve
• Compact design: 56mm total length
• Sold per piece – bulk available
• The BNC Male Connector (Screw Type) is a professional-grade solution for terminating coaxial cables in CCTV and security systems. Featuring a unique screw-on spring design, it eliminates the need for expensive crimping tools – simply strip the cable, insert into the connector, and tighten the screw to secure the braid and center conductor.
• Crafted from nickel-plated brass, it ensures excellent signal integrity with 75Ω impedance and supports high-frequency video transmission up to 1GHz. The gold-plated center pin minimizes signal loss, while the PTFE insulator provides superior dielectric performance.
• Perfect for DIY installers and technicians working with RG59 or RG6 cables in DVR, NVR, or analog camera setups. The bayonet locking mechanism ensures a firm, vibration-resistant connection that won’t come loose.
• Each connector comes with a metal compression sleeve for strain relief and weather resistance when used with outdoor cables. Whether extending camera lines or repairing damaged plugs, this BNC male connector delivers reliable performance every time.

What is the price of BNC Male Connector Screw Type for RG59/RG6 Coaxial Cable CCTV Installation in Bangladesh?

The latest price of BNC Male Connector in Bangladesh is Price: ৳42.50 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy BNC Male Connector Screw Type for RG59/RG6 Coaxial Cable CCTV Installation in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original BNC Male Connector From Dunia.com.bd . We have few collection of latest Uncategorized to purchase. Order Online at our website Or Visit our warehouse to get your product at lowest price.

 FAQ

1. Do I need a crimping tool?
   No, this is a screw-type connector. Tighten the screw to secure the cable.
2. Which cables does it support?
   It works with RG59 and RG6 coaxial cables (4-6mm outer diameter).
3. Is it waterproof?
   Not fully, but with heat shrink or tape, it can be used outdoors.
4. What is the impedance?
   75Ω – standard for CCTV and video applications.
5. Can I reuse it?
   No, it’s a one-time use connector. The spring deforms after installation.
6. Does it come with a boot or cover?
   No, but includes a metal sleeve for strain relief.
7. Is the center pin soldered?
   No soldering needed. The screw secures both braid and center conductor.
8. How long is the connector?
   Total length is 56mm including the barrel.
9. Can I use it with IP cameras?
   Only for analog or AHD/CVI/TVI cameras with BNC output.
10. How many pieces in a pack?
    Sold per piece. Bulk packs available for installers.
