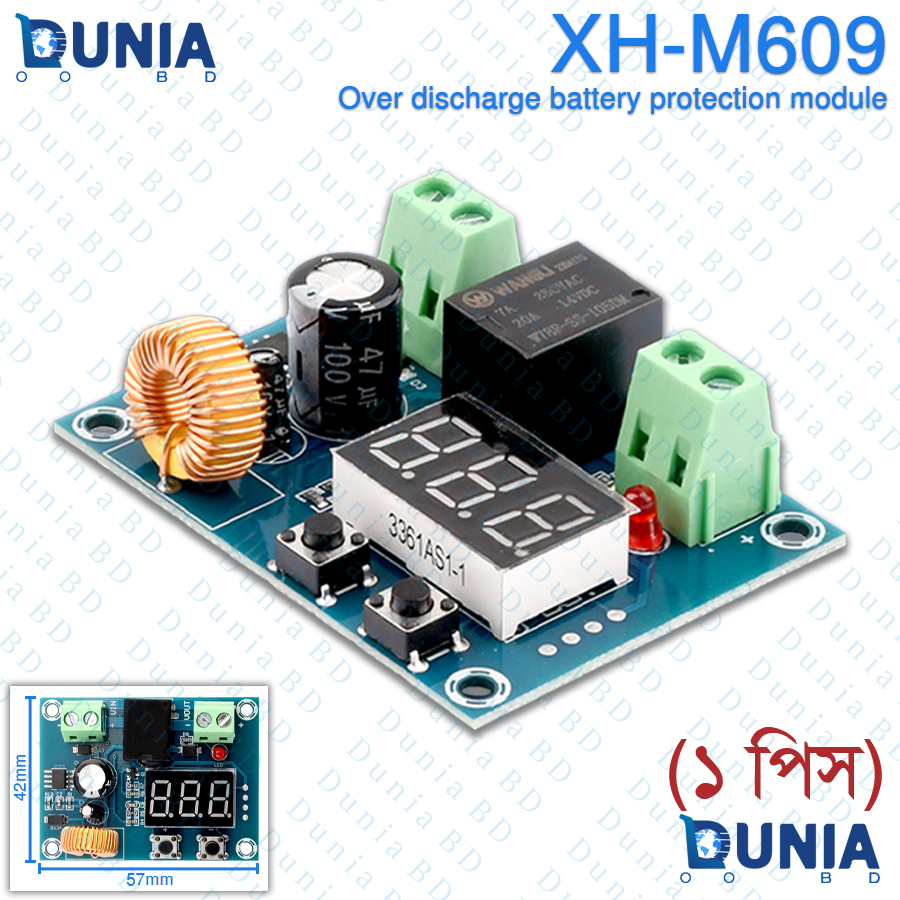

XH-M609 Over Discharge Battery Protection Module 12-36V Low Voltage Disconnect with Digital Display

Specifications

• Model: XH-M609
• Input/Supply Voltage: DC 12-36V
• Output Voltage: Equal to input voltage (pass-through)
• Control Accuracy: 0.1V
• Power Consumption: <1.5W
• Display: 3-digit red LED digital tube
• Dimensions: 57mm x 42mm x 19mm (approx.)
• Board Size (base): Approximately 57mm x 42mm
• Compatible Batteries: Lead-acid, lithium-ion, solar batteries
• Protection Type: Over-discharge (low voltage cut-off) with hysteresis
• Relay Contact Rating: Suitable for standard loads (up to typical 10A)

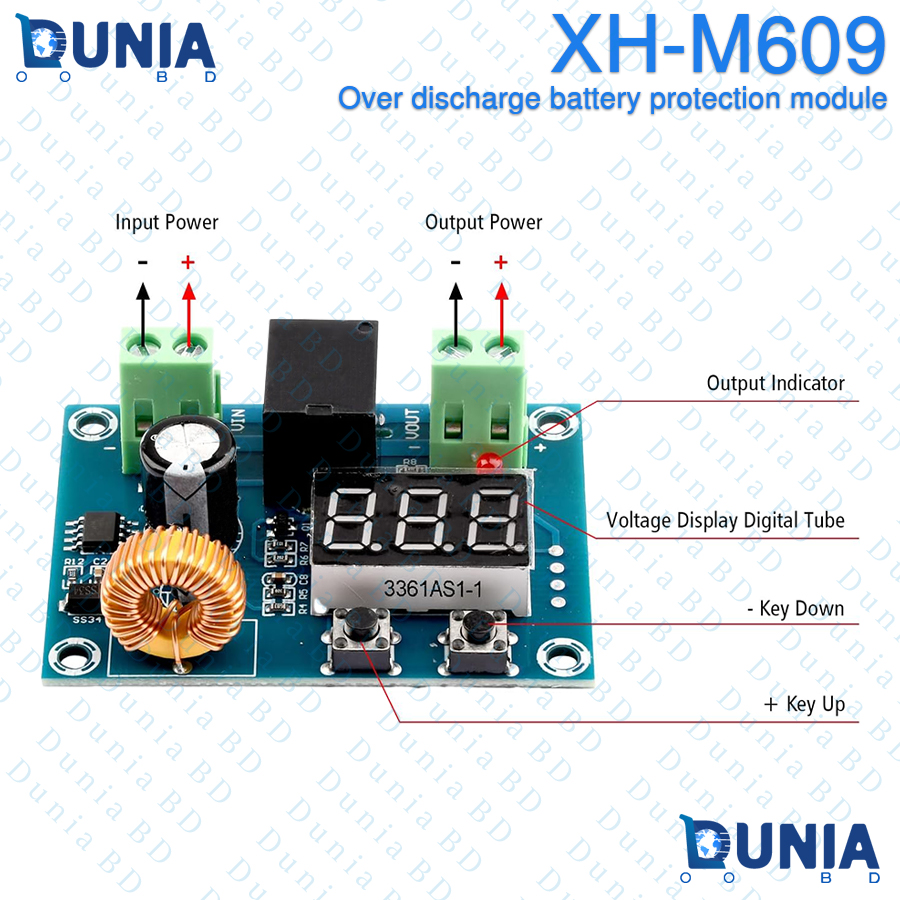

• Setting Method: Onboard push buttons (+ Key Up, – Key Down)

Features

• Automatic low voltage disconnect to prevent battery over-discharge
• Programmable cut-off voltage and hysteresis (recovery difference)
• Digital LED display for real-time battery voltage monitoring
• Easy setting with onboard + and – buttons
• Supports 12-36V lead-acid and lithium batteries
• Built-in relay for load control with output indicator LED
• Non-volatile memory – settings saved even after power off
• Compact design with mounting holes for easy installation
• The Dunia XH-M609 is a reliable over-discharge battery protection module designed to safeguard 12-36V lead-acid and lithium batteries from deep discharge damage. This intelligent low voltage disconnect (LVD) board automatically cuts off the load when battery voltage drops below your set threshold, preventing over-discharge and extending battery lifespan significantly.
• Featuring a clear 3-digit digital LED display, it shows real-time battery voltage for easy monitoring. Programming is simple using the onboard + and – buttons: set the low voltage cut-off point and the hysteress (difference for reconnection) to avoid rapid cycling.
• With built-in relay, output indicator LED, and non-volatile settings memory, this module is perfect for solar power systems, UPS backups, electric vehicles, DIY projects, and any battery-powered setup. When voltage recovers above the set recovery point, it automatically reconnects the load.
• Compact, durable, and easy to install with screw terminals for input (battery) and output (load), the Dunia XH-M609 provides essential protection without needing external controllers.

What is the price of XH-M609 Over Discharge Battery Protection Module 12-36V Low Voltage Disconnect with Digital Display in Bangladesh?

The latest price of XH-M609 Over Discharge Battery Protection Module in Bangladesh is Price: ৳309.00 taka for 1 Pack with selective size & qty . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy XH-M609 Over Discharge Battery Protection Module 12-36V Low Voltage Disconnect with Digital Display in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original XH-M609 Over Discharge Battery Protection Module From Dunia.com.bd . We have few collection of latest কন্ট্রোলার মডিউল to purchase. Order ইলেকট্রনিক মডিউল Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the XH-M609 module used for?
   It protects batteries from over-discharge by automatically disconnecting the load when voltage drops too low.
2. What batteries are compatible?
   Suitable for 12-36V lead-acid, lithium-ion, and solar batteries.
3. How do I set the low voltage cut-off?
   Long press the + button to enter setting mode, adjust the cut-off voltage, then set hysteresis with the – button.
4. Does it have a digital display?
   Yes, a 3-digit LED shows current battery voltage.
5. What is hysteresis or difference value?
   It’s the voltage difference between cut-off and reconnection to prevent relay chattering.
6. Does it support over-charge protection?
   Primarily for over-discharge; some models include basic over-charge, but focus is low voltage protection.
7. Can settings be saved?
   Yes, non-volatile memory retains settings even when powered off.
8. What is the power consumption?
   Less than 1.5W, very energy efficient.
9. Is it suitable for solar systems?
   Yes, ideal for protecting batteries in solar panel setups.
10. How to connect it?
    Connect battery to input terminals (+/-), load to output terminals (+/-).
