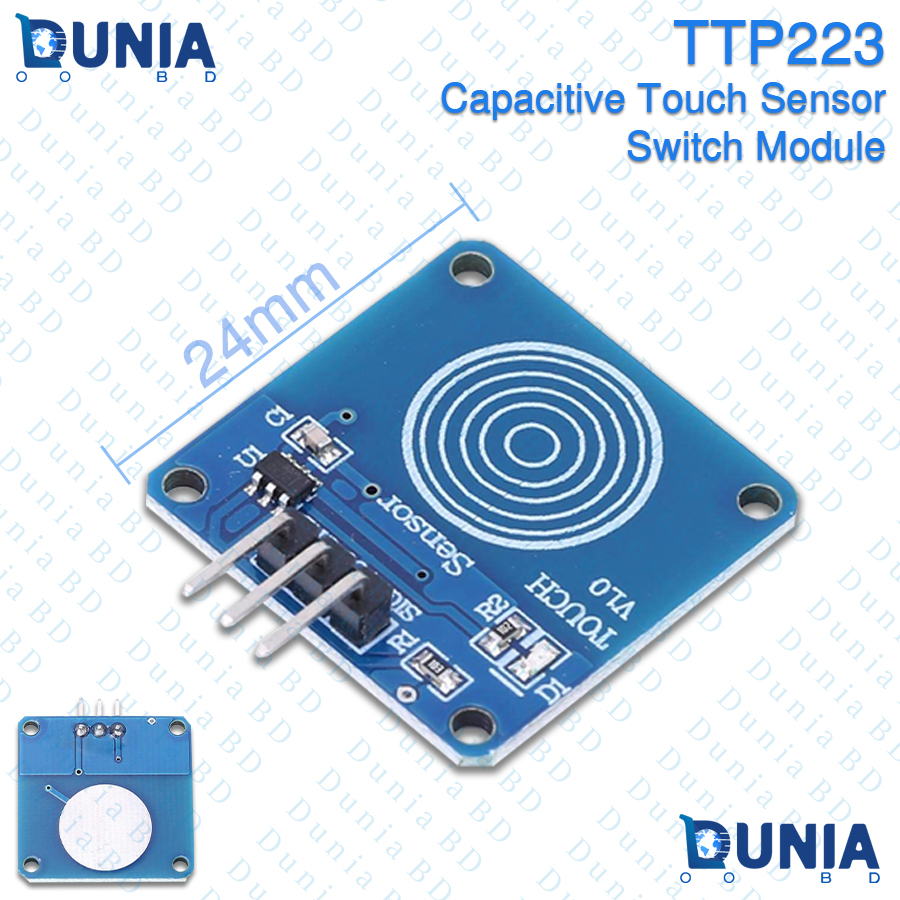

TTP223 Capacitive Touch Sensor Switch Module Blue Digital Self-Lock Touch Button for Arduino Projects

Specifications

• TTP223 Capacitive touch sensor
• Model: TTP223B Capacitive Touch Sensor
• Chip: TTP223 Touch Controller IC
• Touch Pad Size: 24mm diameter
• Detection Distance: Up to 5-10mm (adjustable sensitivity)
• Output Type: Digital (High/Low, 0-5V)
• Operating Voltage: 2.0V – 5.5V DC
• Standby Current: 3-5 μA
• Active Current: 80 μA
• Response Time: <60ms
• Operating Temperature: -20°C to +60°C
• Dimensions: 24mm x 24mm x 5mm
• Pins: VCC, GND, SIG (Digital Out)
• Mode Selection: Self-lock/Momentary (via jumper or default)
• Compatibility: TTL/CMOS Logic Levels

Features

• High sensitivity capacitive touch detection up to 24mm range
• Digital output: High/Low signal for easy microcontroller integration
• Two modes: Self-lock (toggle on/off) & momentary (hold to activate)
• Low power consumption: 3-5uA in standby, 80uA active
• Operating voltage: 2.0V – 5.5V DC (compatible with 3.3V/5V logic)
• Built-in debounce circuit for stable, noise-free operation
• Compact 24x24mm PCB with mounting holes
• No mechanical parts – waterproof & durable for long-term use
• LED indicator for touch status (optional)
• Plug-and-play with Arduino, ESP32, Raspberry Pi via single digital pin
• Elevate your projects with the TTP223 Capacitive Touch Sensor Switch Module – a reliable, low-power solution for adding sleek touch controls without the hassle of mechanical buttons! This compact module uses advanced capacitive sensing technology to detect finger proximity or touch on its 24mm etched touch pad, delivering a clean digital high/low signal to your microcontroller.
• Powered by the TTP223 IC, it features adjustable sensitivity for reliable detection even through non-metallic surfaces like plastic or glass (up to 5-10mm thick). Choose between self-lock mode (touch once to toggle on/off) or momentary mode (hold for continuous output) – perfect for switches, sliders, or gesture interfaces. With ultra-low standby power (just 3-5uA), it’s ideal for battery-powered IoT devices, wearables, or always-on systems.
• Connecting is simple: VCC to 3.3V/5V, GND to ground, and SIG to any digital pin on Arduino/ESP32. Read the state in your code and respond to touches instantly – no libraries needed! Whether you’re building smart home panels, interactive toys, or custom keyboards, this module offers durability (no wear from presses) and waterproofing for harsh environments.

What is the price of TTP223 Capacitive Touch Sensor Switch Module Blue in Bangladesh?

The latest price of TTP223 Capacitive Blue Touch Sensor Switch Module in Bangladesh is Price: ৳72.50 taka for 1Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy TTP223 Capacitive Touch Sensor Switch Module Blue in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original TTP223 Capacitive Blue Touch Sensor Switch Module From Dunia.com.bd . We have few collection of latest আরডুইনো এক্সেসরিজ to purchase. Order ইলেকট্রনিক মডিউল Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the difference between self-lock and momentary mode?
   Self-lock toggles output on each touch (like a flip switch); momentary keeps output high only while touched.
2. Can it detect touch through a panel?
   Yes, up to 5-10mm through non-conductive materials like acrylic or wood.
3. Does it require a library for Arduino?
   No, it’s a simple digital input – just read the SIG pin like a button.
4. What voltage levels does the output support?
   Digital output matches input voltage: 3.3V logic for low-voltage MCUs, up to 5V.
5. Is it sensitive to water or humidity?
   Fully waterproof – capacitive sensing ignores water droplets.
6. How do I switch modes?
   Most modules default to self-lock; some have a jumper or resistor mod for momentary.
7. What’s the power consumption for battery projects?
   Extremely low: 3-5μA standby, making it perfect for long-life applications.
8. Can it work with ESP32 or Raspberry Pi?
   Yes, fully compatible with 3.3V GPIO pins.
9. Does it have debounce built-in?
   Yes, integrated debounce prevents false triggers from shaky touches.
10. What if the touch area is too sensitive/large?
    Adjust by adding a resistor on the sensitivity pin or covering part of the pad.
