Nano Module CH340 5V 16M Type-C Micro Controller Board for Arduino and DIY Project

Product Detail:

• Microcontroller: Atmel Atmega328P-AU
• Architecture: AVR
• Flash Memory: 32 KB of which 2 KB used by bootloader
• SRAM: 2 KB; EEPROM: 1 KB; Clock Speed: 16 MHz;
• USB to Serial convert chip：CH340C
• 8 Analog I/O inputs:A0 ~ A7（each of which provide 10 bits of resolution）
• 14 Digital I/O Pins:TX,RX,D2 ~ D13.
• 1 pairs of TTL level serial transceiver ports RX / TX.
• 6 PWM Output: D3, D5, D6, D9, D10, D11.
• DC Current per I/O Pins: 40 mA (I/O Pins)

Features

• Nano board is tiny and breadboard friendly microcontrollers. It works the same as original Nano and is very cost-effective for beginners to get started.
• Nano Using Atmel Atmega+328P-AU as MCU, Support ISP download; Support USB-C download and Power.Compatible with Arduino Nano V3.0 fully compatible with Windows, Mac and Linux operating system.
• Nano can be powered via USB-C connection,included USB-C to USB-A cable and USB-C to USB-C cable. 6-12V unregulated external power supply , or 5V regulated external power supply.The Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.
• Nano has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a power USB-C jack, an ICSP port and a reset button.
• Nano has a variety of facilities for communicating with a PC or other microcontrollers, and fully compatible with Windows, Mac and Linux operating system.This board especially is breadboard friendly and is very easy to handle the connections.

Microcontroller :

• ATmega328P–8 bit AVR family microcontroller.
• The CH340 chip on the Nano is only powered if the board is being powered over USB.
• The ATmega328 has 32 KB, (also with 2 KB used for the bootloader. The ATmega328 has 2 KB of SRAM and 1 KB of EEPROM.

Power

• Nano can be powered via the USB-C connection, 6-12V unregulated external power supply , or 5V regulated external power supply . The power source is automatically selected to the highest voltage source.
• Input Voltage: 7-12 V; Power Consumption: 19 mA

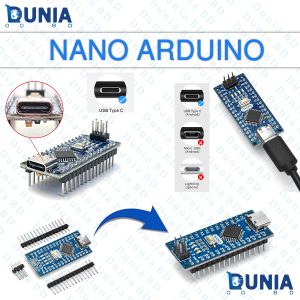

• Easy using-with USB-C cable,included USB-C to USB-A cable and USB-C to USB-C cable ,Type C port for power, programming and debugging.

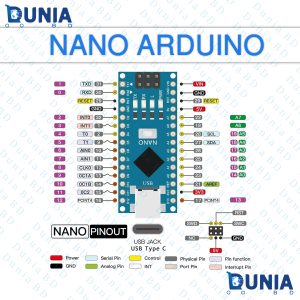

Input and Output

• Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. Some pins have specialized functions:
• Serial: 0 (RX) and 1 (TX). Used to receive (RX) and transmit (TX) TTL serial data. These pins are connected to the corresponding pins of the CH340C USB chip

Package Include

• Package Include : 1x Nano board and 1x USB-C Cable
• PCB Size: 18 x 43 mm
• Weight: 8 g

What is the price of Nano Module CH340 5V 16M Type-C Micro Controller Board for Arduino and DIY Project in Bangladesh?

The latest price of CH340 Nano Module in Bangladesh is Price: ৳513.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Nano Module CH340 5V 16M Type-C Micro Controller Board for Arduino and DIY Project in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original CH340 Nano Module From Dunia.com.bd . We have few collection of latest ডেভেলপমেন্ট বোর্ড to purchase. Order ইলেকট্রনিক মডিউল Online at our website Or Visit our warehouse to get your product at lowest price.
