MPU-6050 Module 3-Axis Accelerometer Gyroscope GY-521 for Arduino Raspberry Pi Motion Sensor Board

Specifications

• MPU-6050 Module
• Model: MPU-6050 GY-521
• Axes: 3-Axis Accelerometer + 3-Axis Gyroscope (3-Axis Total)
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g
• Gyroscope Range: ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
• Resolution: 16-bit ADC Output
• Interface: I2C (SDA/SCL)
• Supply Voltage: 2.375V – 3.46V (On-board Regulator for 5V)
• Current Consumption: 3.9mA (Active), 5μA (Standby)
• Operating Temperature: -40°C to +85°C
• Dimensions: 20.6mm x 15mm x 2.84mm

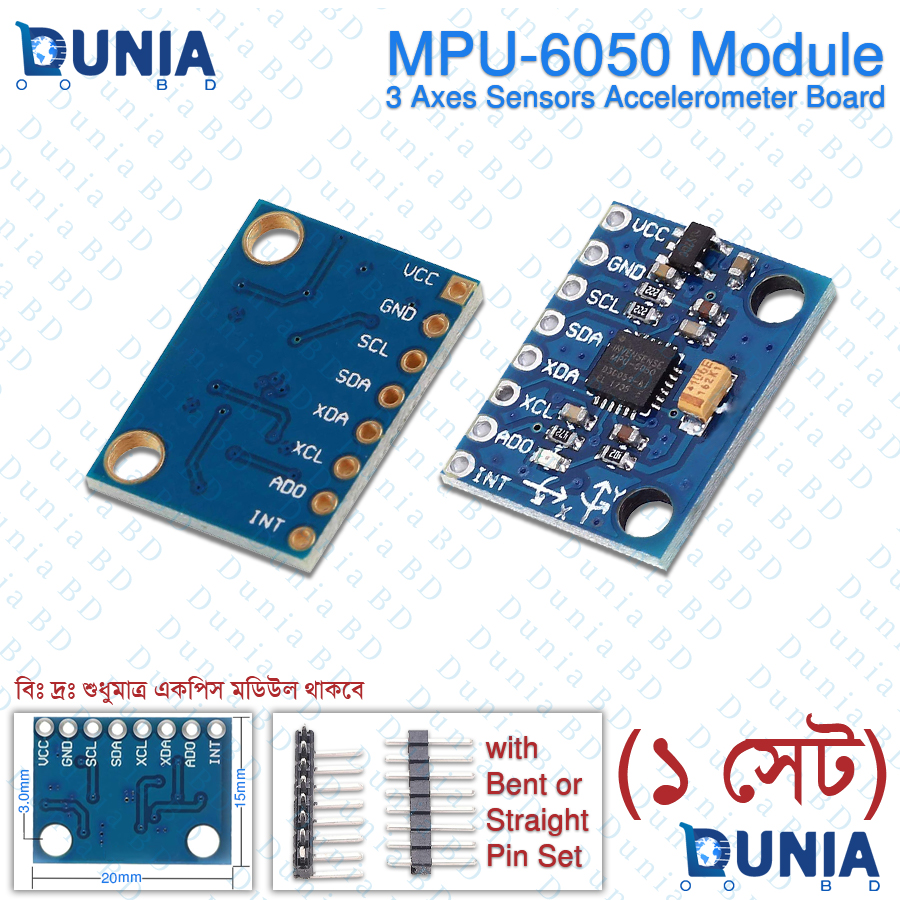

• Communication Pins: VCC, GND, SCL, SDA, XDA, XCL, AD0, INT
• Package: Module with Pin Headers (Straight or Bent)

 Features

• Integrated 3-axis motion processing unit: 3-axis accelerometer + 3-axis gyroscope
• Programmable ranges: Accelerometer ±2/±4/±8/±16g; Gyroscope ±250/±500/±1000/±2000°/s
• Built-in 16-bit ADC converter for high-resolution data output
• Digital Motion Processor (DMP) for advanced motion fusion algorithms
• I2C interface for easy connection to Arduino, ESP32, Raspberry Pi
• On-board voltage regulator (3.3V logic, 5V tolerant)
• Interrupt pin for efficient data sampling
• Low power consumption: 3.9mA operating, 5μA standby
• Compact size: 20.6 x 15mm with mounting holes
• Includes straight/bent pin headers for quick setup
• Unlock the power of motion sensing with the MPU-6050 GY-521 module – the ultimate 3-axis IMU (Inertial Measurement Unit) for your Arduino, Raspberry Pi, or robotics projects! This compact sensor combines a high-performance 3-axis accelerometer and 3-axis gyroscope into one chip, delivering precise data on acceleration, rotation, and orientation.
• Featuring a built-in 16-bit ADC and Digital Motion Processor (DMP), the MPU-6050 processes complex motion fusion algorithms on-chip, reducing CPU load and improving accuracy. Selectable ranges make it versatile: measure gentle tilts for gesture control or high-g forces for drones and wearables.
• Simply connect via I2C (pins: VCC, GND, SCL, SDA) to any microcontroller – no external components needed thanks to the on-board 3.3V regulator. Use the AD0 pin to change I2C addresses for multi-sensor setups. The interrupt pin (INT) triggers data-ready signals for efficient polling.
• Ideal for quadcopters, balancing robots, VR headsets, fitness trackers, and IoT devices. With thousands of libraries and tutorials available (e.g., Arduino MPU6050 library), you’ll be up and running in minutes. Get yours from Dunia BD and bring your projects to life with real-time motion intelligence!

What is the price of MPU-6050 Module 3-Axis Accelerometer Gyroscope GY-521 for Arduino Raspberry Pi Motion Sensor Board in Bangladesh?

The latest price of Accelerometer Gyroscope MPU-6050 Module 3-Axis in Bangladesh is Price: ৳249.00 taka for 1Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy MPU-6050 Module 3-Axis Accelerometer Gyroscope GY-521 for Arduino Raspberry Pi Motion Sensor Board in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Accelerometer Gyroscope MPU-6050 Module 3-Axis From Dunia.com.bd . We have few collection of latest আরডুইনো এক্সেসরিজ to purchase. Order ইলেকট্রনিক মডিউল Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the difference between accelerometer and gyroscope in MPU-6050?
   Accelerometer measures linear acceleration (tilt/motion); gyroscope measures angular velocity (rotation).

2. Does it require external pull-up resistors for I2C?
   No, built-in 4.7kΩ pull-ups on SDA/SCL lines.

3. Can I power it with 5V from Arduino?
   Yes, the on-board regulator handles 5V input safely.

4. How do I connect to Raspberry Pi?
   Use GPIO pins: VCC to 3.3V, GND to GND, SCL to GPIO3, SDA to GPIO2.

5. What libraries are available for Arduino?
   Jeff Rowberg’s MPU6050 library – includes DMP firmware for quaternion output.

6. Can it detect orientation like up/down?
   Yes, combine accel + gyro data for full 3D orientation (e.g., Euler angles).

7. Is it suitable for drone flight control?
   Absolutely – widely used in quadcopters for stable flight.

8. What is the sensitivity for accelerometer?
   16-bit resolution: ~0.05mg/LSB at ±2g range.

9. Does it come with example code?
   Yes, basic I2C scanning and data reading sketches included.

10. Can multiple MPU-6050 be used together?
    Yes, use AD0 pin to set different I2C addresses (0x68/0x69).
