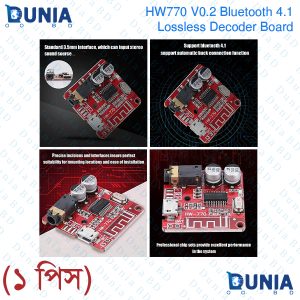

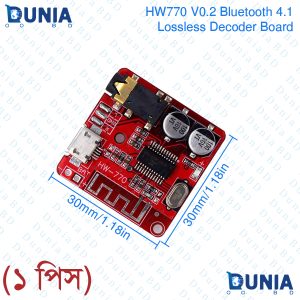

Audio Receiver Module HW770 V0.2, MP3 Bluetooth 4.1 Lossless Decoder Board Car Speaker Amplifier Board Stereo Board Stereo Channel Output Precise incisions and interfaces

Specification of HW-770 Bluetooth MP3 Module

• Power Supply 3.7-5 Volts
• SNR 90dB
• THD+N -70dB
• Crosstalk -86dB
• DNR 91dB
• Support Profile A2DP/AVCTP/AVDTP/AVRCP/HFP
• LOS >15m

Interface details

• USB powered Universal Micro USB 5V power supply
• 3.7-5V Supply Pad External 3.7-5V lithium battery power conversion
• LED indicator Bluetooth mode long blue light
• 3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices

Features of HW 770 MP3 Bluetooth Module

• Bluetooth wireless connection. Longest communication distance 20 meter.
• Support decoding function.
• Pairing voice prompts.
• Easy to use, just need power and headset.
• Small size.
• Simple wiring.
• Stable output.

Instruction on using HW-770 Bluetooth MP3 Module

After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English “The Bluetooth device is ready to pair” is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the “XY_BT” searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts “The Bluetooth device is connected successfully”, indicating that the decoder board and the mobile phone are connected successfully, you can play music.

What is the price of HW770 V0.2 Audio Receiver Module , MP3 Bluetooth 4.1 Lossless Decoder Car Speaker Amplifier Board in Bangladesh?

The latest price of HW770 V0.2 Audio Receiver Module , MP3 Bluetooth 4.1 Lossless Decoder Car Speaker Amplifier Board in Bangladesh is Price: ৳160.00 taka for 1Pcs amplifier circuit. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy HW770 V0.2 Audio Receiver Module , MP3 Bluetooth 4.1 Lossless Decoder Car Speaker Amplifier Board in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original HW770 V0.2 Audio Receiver Module , MP3 Bluetooth 4.1 Lossless Decoder Car Speaker Amplifier Board From Dunia.com.bd . We have few collection of latest অডিও & অ্যামপ্লিফায়ার মডিউল to purchase. Order ইলেকট্রনিক মডিউল Online at our website Or Visit our warehouse to get your product at lowest price.
